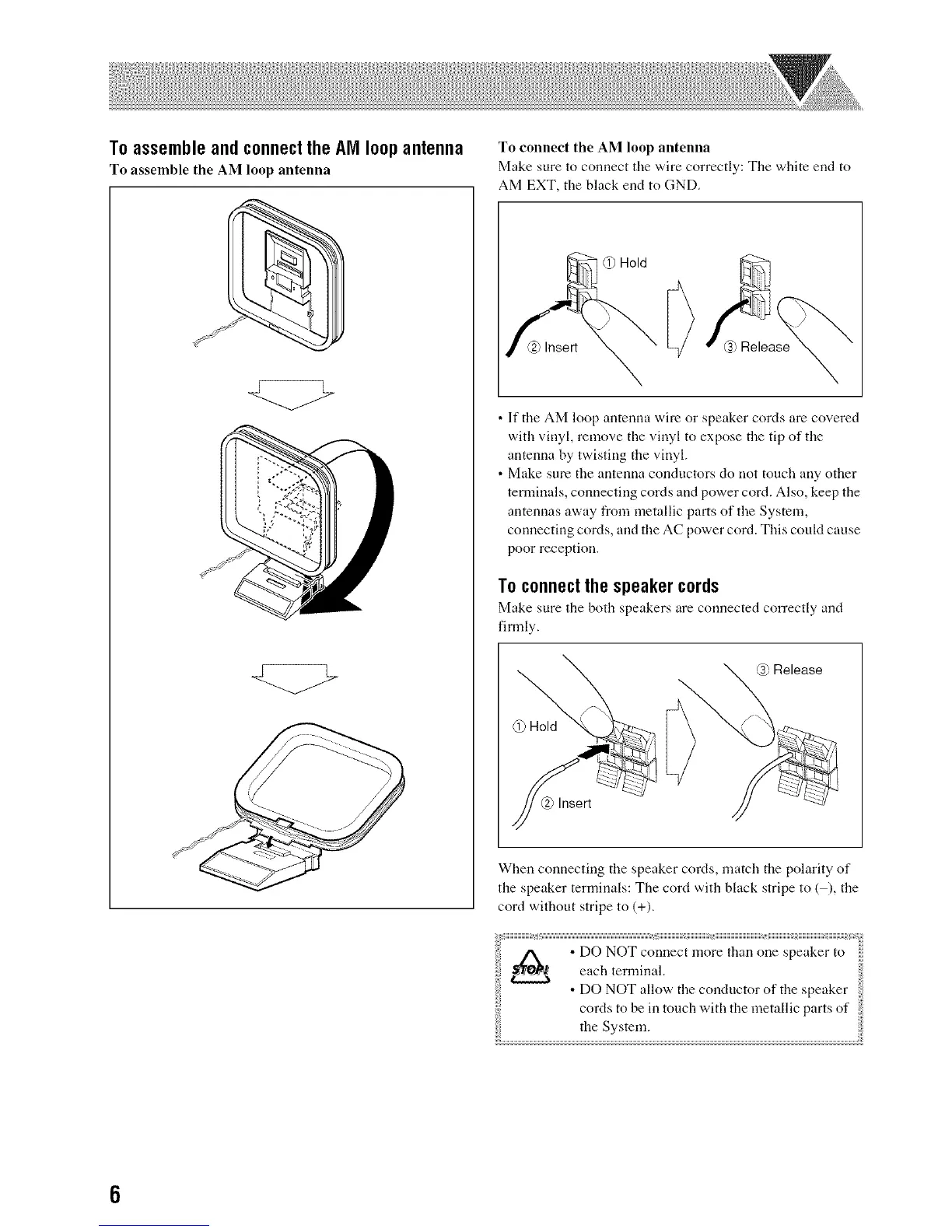

To assembleandconnectthe AM loopantenna
To assemble the AM loop antenna
To connect the AM loop antenna
Make sure to conuect the wire correctly: Tile white end to
AM EXT, the black end to GND.
@ Hold
Insert
(3) Release_
• If the AM loop antenua wire or speaker cords are covered
with vinyl, remove the vinyl to expose tile tip of tile
antenna by twisting the vinyl.
• Make sure the autenua conductors do not touch ally other
terminals, connecting cords and power cord. Also, keep the
antennas away from metallic parts of the System,
connecting cords, and the AC power cord. This could cause
poor reception.
To connectthe speakercords
Make sure the both speakers are connected correctly and
firmly.
) Release
@ Hold )
_Insert
When connecting the speaker cords, match the polarity of
the speaker terminals: The cord with black stripe to (), the
cord without stripe to (+).
•DoNoTco.nectmorethanonespeakerto
I s_{ each terminal.• DO NOT allow tile conductor of the speaker
cords to be in touch with the metallic parts of
theSystem.
6
