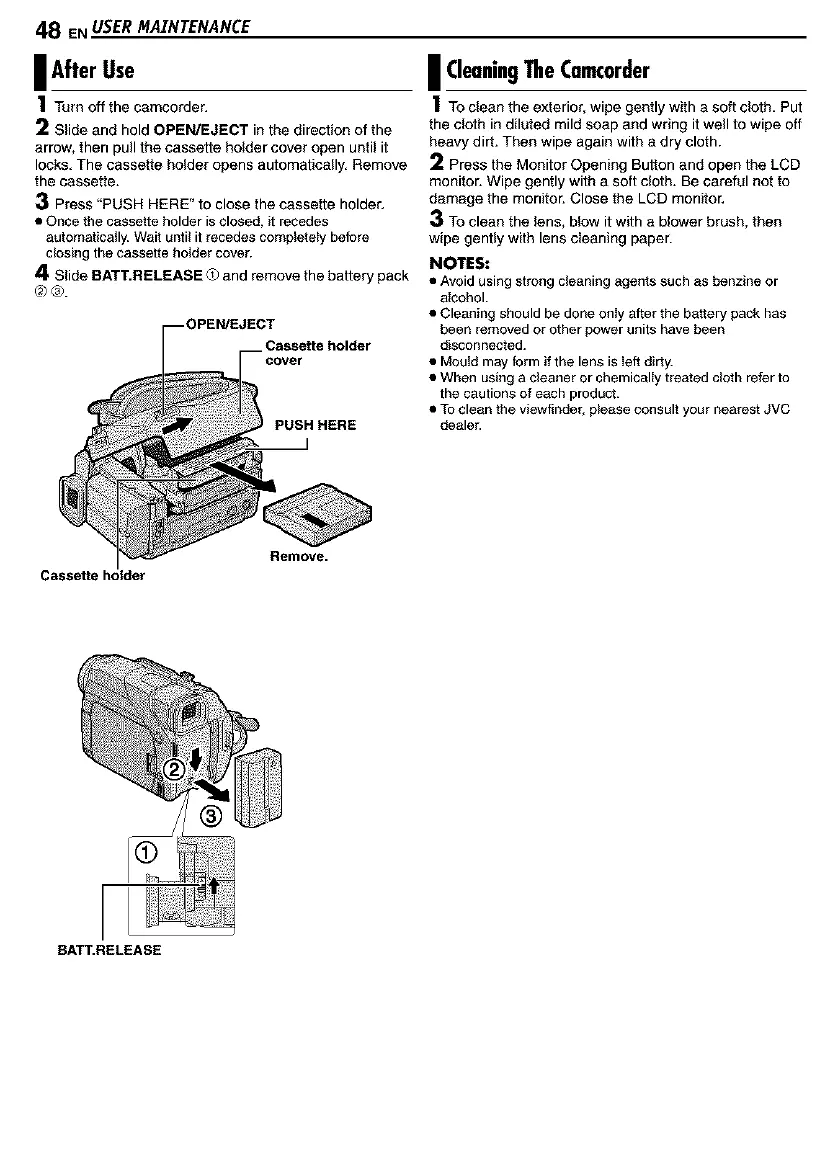

48 ENUSERMAINTENANCE
IAfter Use
1 t.rno,the camcorder.
2 Slide and hold OPEN/EJECT in the direction of the
arrow, then pull the cassette holder cover open until it
locks. The cassette holder opens automatically. Remove
the cassette.
3 Press "PUSH HERE" to close the cassette holder.
• Ol_e the cassette holder is closed, it recedes
automatically.Wait until it recedes completely before
closing the cassette holder cover.
4 Slide BATT.RELEASE <_and remove the battery pack
__ Cassette holder
cover
PUSH HERE
I CleaningTheCamcorder
1Too_eantheexterior,wipegently with a soft cloth. Put
the cloth in diluted mild soap and wring it well to wipe off
heavy dirt. Then wipe again with a dry cloth.
2 Press the Monitor Opening Button and open the LCD
monitor. Wipe gently with a soft cloth. Be careful not to
damage the monitor. Close the LCD monitor.
3 To clean the lens, blow it with a blower brush, then
wipe gently with lens cleaning paper.
NOTES:
• Avoid using strong cleaning agents such as benzine or
alcohol.
• Cleaning should be done onlyafter the battery packhas
been removed or otherpowerunits havebeen
disconnected.
• Mould mayform ifthe lens is left dirty.
• When using a cleaner or chemically treated cloth refer to
the cautions of each product.
• TOclean the viewfinder, pleaseconsult your nearest JVC
dealer.
CasseRe holder
Remove.
RATT.RELEASE

JVC GR-D73 Specifications

General

Digital zoom	700 x
Optical zoom	16 x
Focal length range	2.7 - 43.2 mm
Sensor type	CCD
Total megapixels	0.8 MP
Optical sensor size	1/6 \
Focus	Manual, Automatic
I/O ports	DV-In/OutIEEE 1394), S-video In/Out, AV-In/Out, USB, SDMC
Auto focus	Yes
Resolution	1024 x 768 pixels
Flash memory	8 MB
Display diagonal	2.5 \
Camera shutter speed	1/50-1/120, 1/250-1/4000 s
Photo effects	Sepia
Playback zoom (max)	44 x
Battery type	BN-V408

Weight and Dimensions

Depth	91 mm
Width	71 mm
Height	118 mm
Weight	500 g
