Digital Video Cassette Technology
14
4. Set the zoom lens to the wide angle position by positioning the mouse
pointer over the Zoom Wide toolbar button. Click and hold the left mouse
button down, then click the right mouse button. The lens moves to the
maximum wide angle position.
5. Set the zoom lens to the telephoto position by positioning the mouse pointer
over the Zoom Tele toolbar button. Click and hold the left mouse button
down, then click the right mouse button. The lens moves to the maximum
telephoto position.
Notice that the camera does not perform the digital zoom function.
6. Disable the automatic focus operation by clicking the Auto Focus check
box. Notice the Focus Far and Focus Near buttons are now operational.
7. The operation of the focus buttons is similar to that of the zoom buttons.
Experiment with the Focus Near and Focus Far buttons.
DSP Controller
1.
Select Controller from the File menu. Then select DSP.

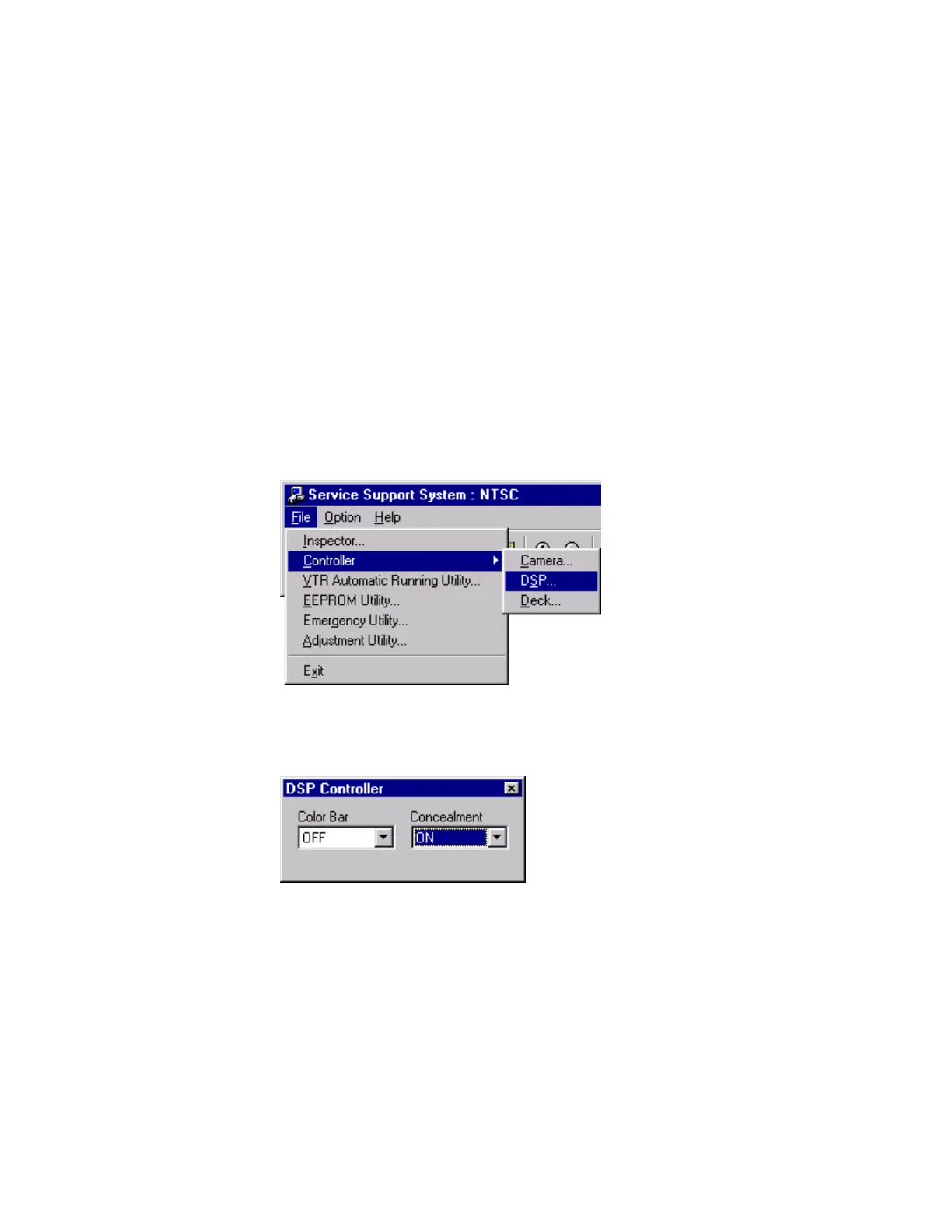

Figure 15 DSP Controller Menu
2.
The DSP Controller window appears.
Figure 16 DSP Controller Window
3.
Select Color Bar ON in the DSP Controller window. Notice the camera
image is now color bars.
You can use this function as an aid during troubleshooting.
4. Click the FA Deck tab in the Deck Controller window to switch the unit to
the player mode.
5. Use the Deck Controller window to play a tape.
