Digital Video Cassette Technology
78
Sync Level Adjustment
1. Select the Sync Level procedure in the list box.

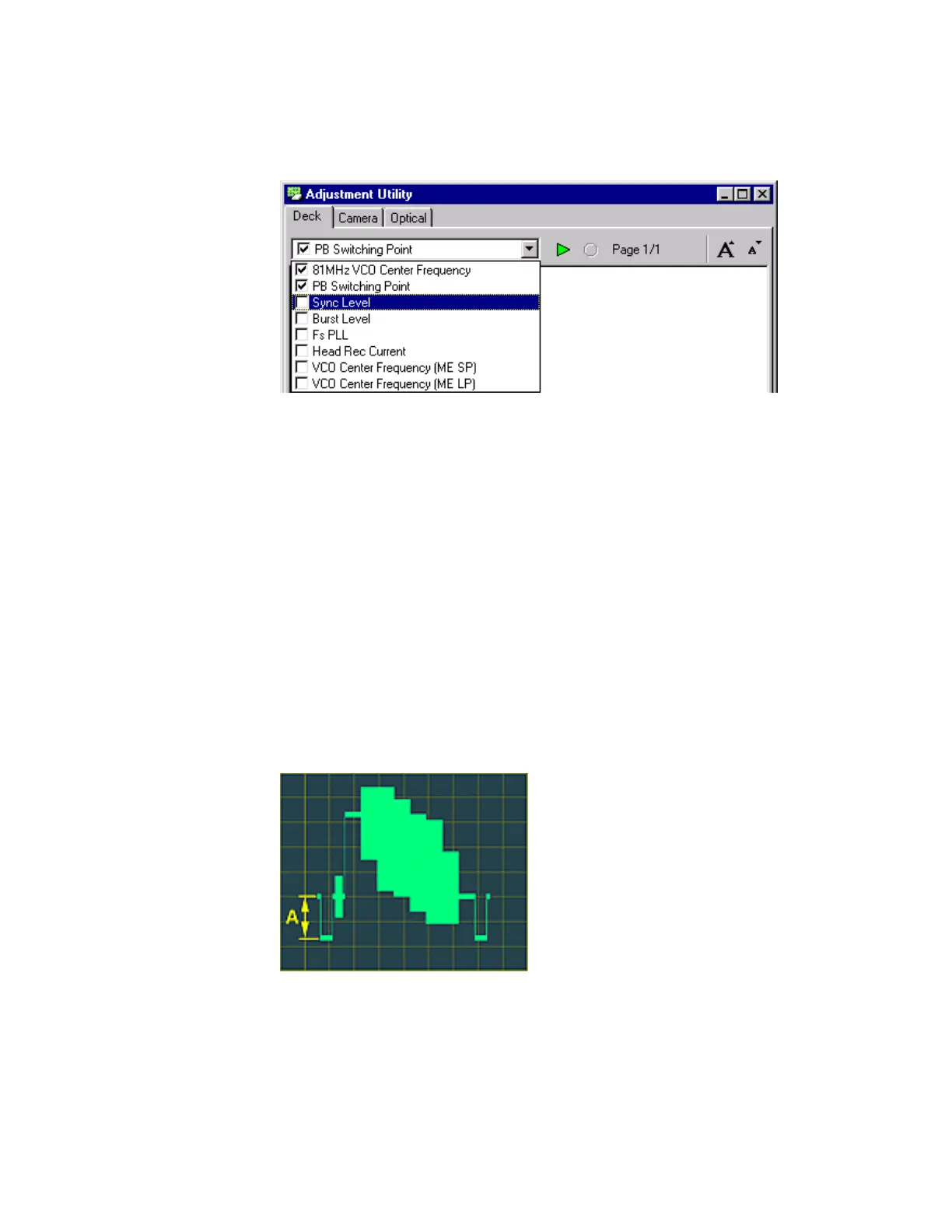

Figure 121 Sync Level Adjustment
2.
Read the procedure.
3. Click the FA Camera tab in the Deck Controller window to put the unit in
the Camera mode.
4. Use the DSP Controller to turn on the Color Bars.
5. Click the Start button in the Adjustment Utility window. The Confirmation
window appears.
6. Click the Yes button in the Confirmation window. The Editing window
appears.
7. Use an oscilloscope to observe the video output signal. Click the Up and
Down Arrows in the Editing window to set the amplitude of the Sync Pulse
of the video output signal to 0.28 ± 0.02 V p - p, or the value specified in
the software.
Figure 122 Set the Sync Level
