JVC GR-DVF21U

Adjusting the Digital Video Cassette Camera with JVC Service Support System Software
51
Zoom Linearity Adjustment
1. Select the Zoom Linearity procedure in the list box in the Adjustment
Utility window.

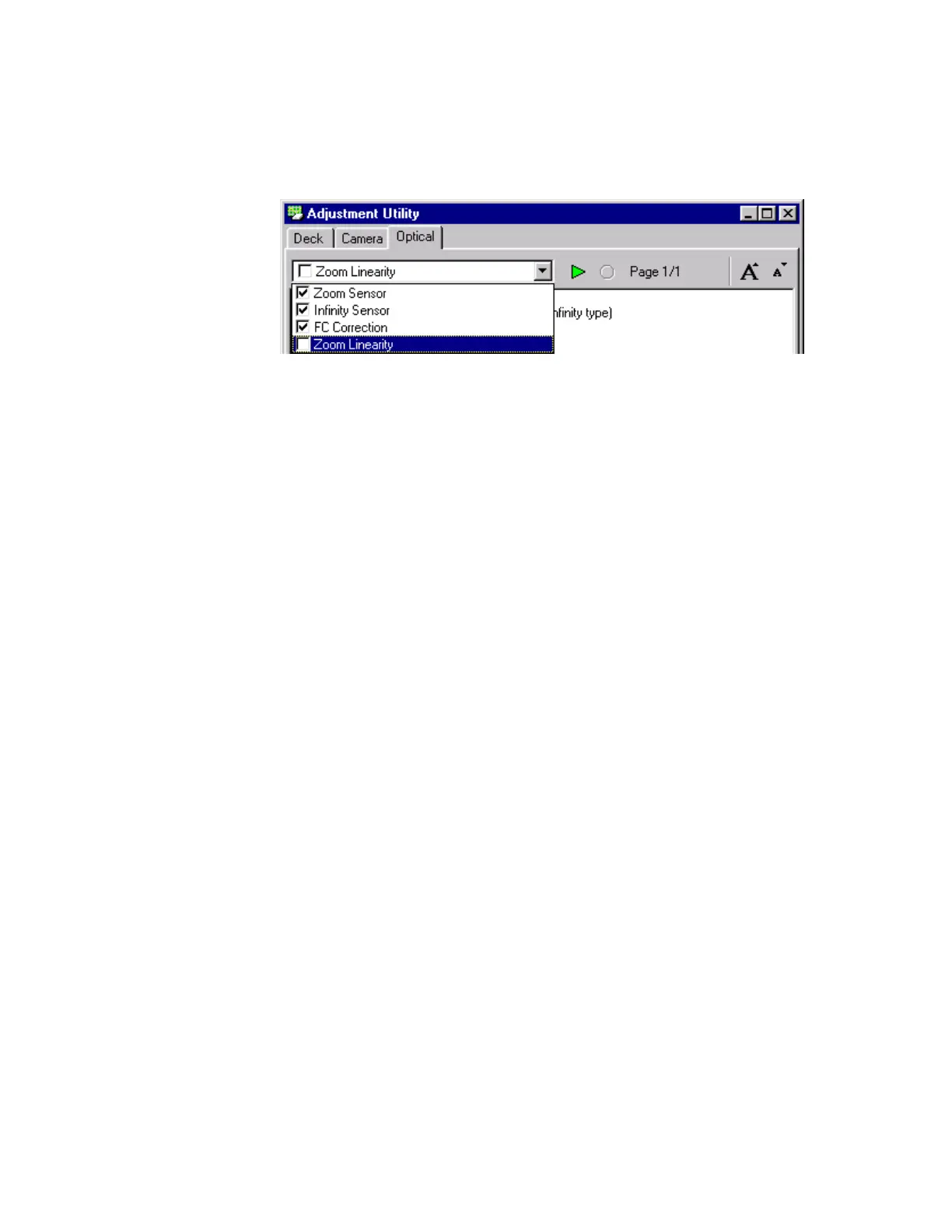

Figure 89 Zoom Linearity Adjustment
2.
Read the procedure.
3. Click the Start button in the Adjustment Utility window. The Confirmation
window appears.
4. Click the Yes button in the Confirmation window.
5. The Best Focusing window appears. When the adjustment is complete click
the OK button in the Best Focusing window.
6. The Information windows appears. Click the OK button in the Information
window.
This completes the Optical Block adjustments.
