JVC GR-DVF21U

Digital Video Cassette Technology
68
Difference Color Gain / Matrix Adjustment
1. Select the Difference Color Gain / Matrix procedure in the list box in the
Adjustment Utility window.

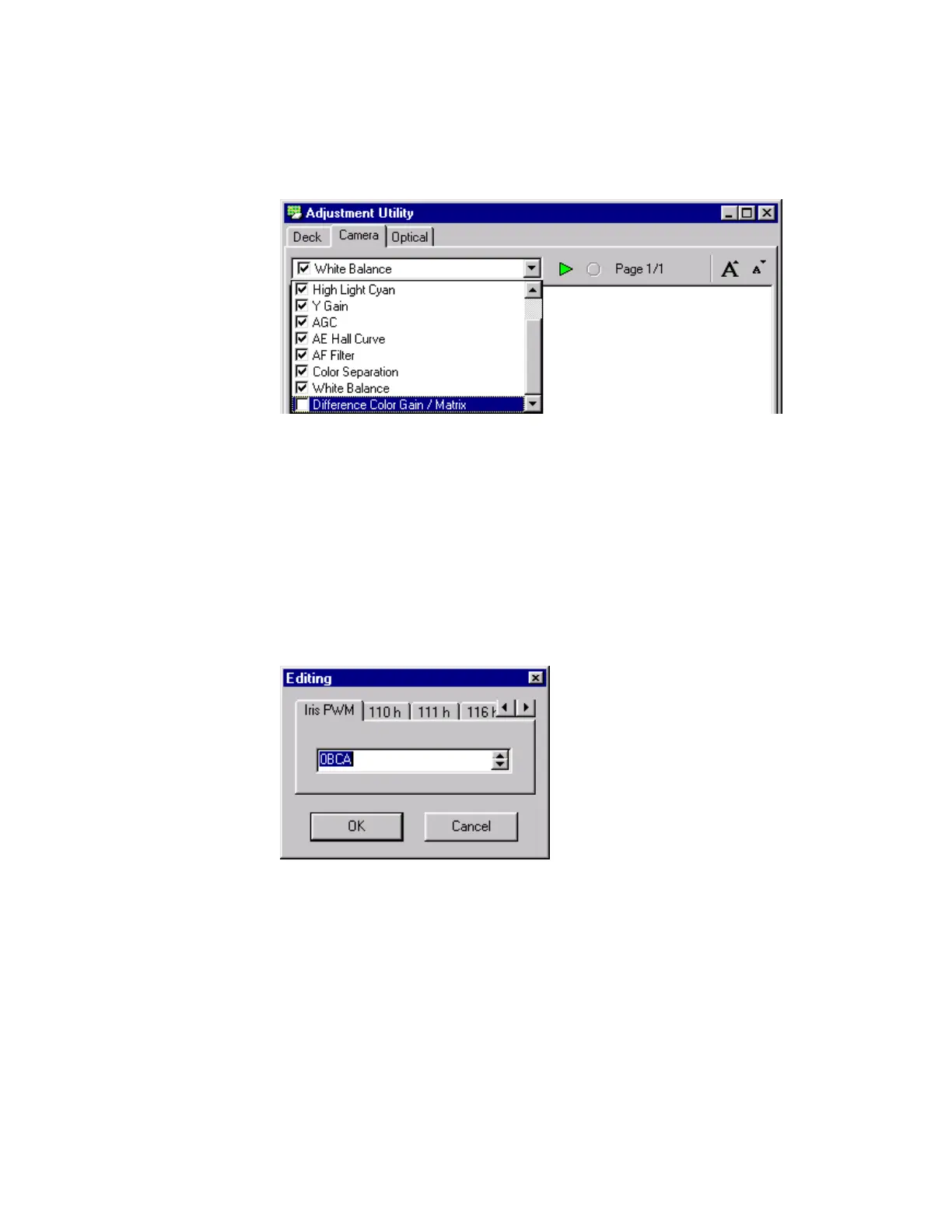

Figure 108 Difference Color Gain / Matrix Adjustment
2.
Read the procedure.
3. Insert the Chart Holder into the Chart Slot of the Light Box so the
camcorder is shooting the Color Bar Chart.
4. Click the Start button in the Adjustment Utility window. The Confirmation
window appears.
5. Click the Yes button in the Confirmation window. The Editing window
appears.
Figure 109 Editing Window
6.
If it not already selected click the Iris PWM tab in the Editing window to
select it.
