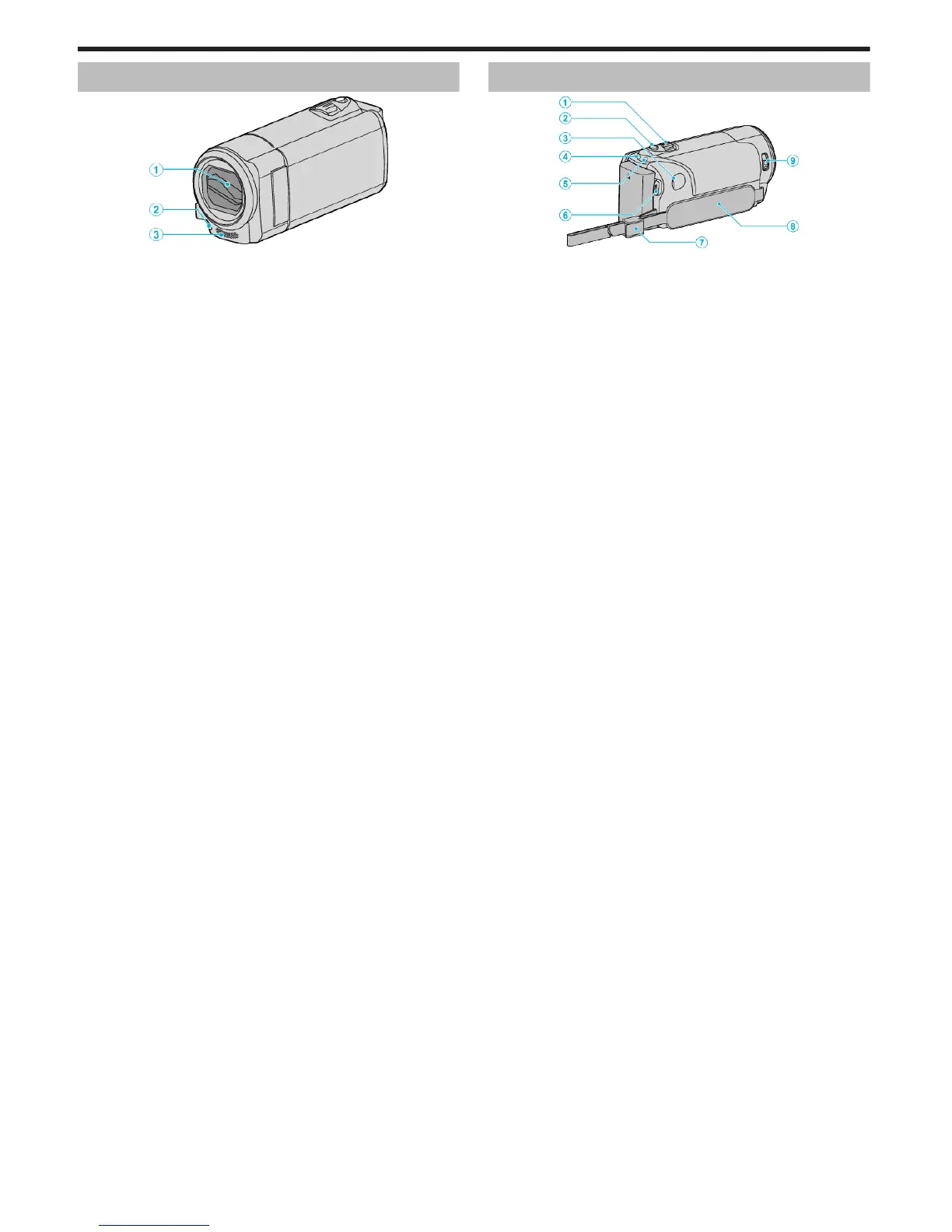

Front
.
1
Lens Cover
0
Do not touch the lens and lens cover.
0
Do not cover the lens with your fingers during recording.
2
Light
0
Turn on the light when shooting in dark places.
“LIGHT (GZ-HM445/GZ-HM650/GZ-HM670)” (A p. 93)
3
Stereo Microphone
0
Do not cover the microphone with your fingers during video recording.
Rear
.
1
Zoom/Volume Lever
0
During shooting: Adjusts the shooting range.
0
During playback (index screen): Moves to the next or previous page.
0
During video playback: Adjusts the volume.
2
SNAPSHOT (Still Image Recording) Button
0
Takes a still image.
3
DC Connector
0
Connects to an AC adapter to charge the battery.
4
ACCESS (Access) Lamp
0
Lights up/blinks during recording or playback.
Do not remove the battery pack, AC adapter, or SD card.
5
POWER/CHARGE (Power/Charge) Lamp
0
Lights up: Power "ON"
0
Blinks: Charging in progress
0
Goes out: Charging finished
6
START/STOP (Video Recording) Button
0
Starts/stops video recording.
7
Strap Lock
8
Grip Belt
0
Pass your hand through the grip belt to hold this unit firmly.
“Grip Adjustment” (A p. 15)
9
Lens Cover Switch
0
Opens and closes the lens cover.
Names of Parts
