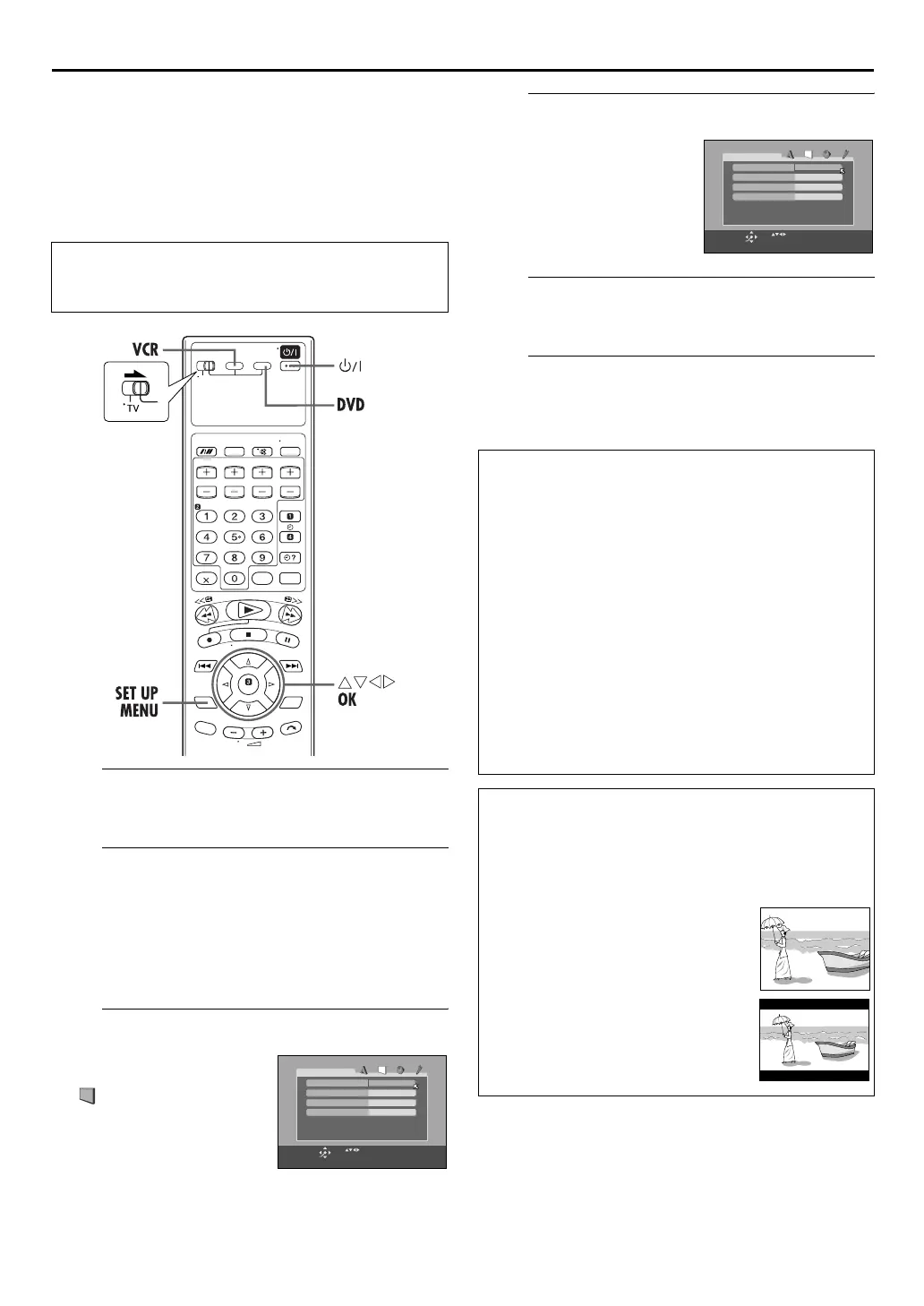

Monitor Set
(DVD deck)
You can select the monitor type depending on the TV
used when you play back DVD VIDEO discs recorded for
wide-screen TVs.
A
Turn on the unit.
Press 1.
B
Select the DVD deck.
On the unit
Press VCR/DVD repeatedly so that the DVD indicator
lights up.
On the remote control
Press DVD so that the DVD indicator lights up.
C
Access the DVD Set Up menu screen.
D
Select the mode.
E
Select the mode setting.
Press rt to select the desired setting, then press OK.
F
Return to the normal screen.
Press SET UP MENU.
* The default setting is bold in the table below.
Turn on the TV and select the video channel (or AV
mode).
Slide the TV/VCR/DVD switch to the right.
A Press SET UP MENU.
B Press we to select
“PICTURE.
4:3LB
MONITOR TYPE
PICTURE SOURCE
SCREEN SAVER
AUTO
ON
USE TO SELECT, USE OK TO CONFIRM.
TO EXIT, PRESS [SET UP MENU].
OK
SELECT
MP3&WMA / JPEG
MP3&WMA
Press rt to move H to
“MONITOR TYPE”, then
press OK.
8 MONITOR TYPE
16:9 NORMAL (Wide television conversion):
Select this when the aspect ratio of your TV is 16:9 (wide
TV).
16:9 AUTO (Wide television conversion):
Select this when the aspect ratio of your TV is fixed to 16:9
(wide TV). The unit automatically adjusts the screen width of
the output signal correctly when playing back a picture
whose aspect ratio is 4:3.
4:3 LB (Letter Box conversion):
Select this when the aspect ratio of your TV is 4:3
(conventional TV). While viewing a wide screen picture, the
black bars appear on the top and the bottom of the screen.
4:3 PS (Pan&Scan):
Select this when the aspect ratio of your TV is 4:3
(conventional TV). While viewing a wide screen picture, the
black bars do not appear; however, the left and right edges
of the pictures will not be shown on the screen.
Pan&Scan/Letter Box
In general, DVD VIDEO disc are produced for a wide-screen
TV with 16:9 aspect ratio.
Material with this ratio will not fit to a TV with 4:3 aspect
ratio. There are two styles to display the image, “Pan&Scan”
and “Letter Box”.
Pan&Scan
The right and left side of the image are
cut off. The image fills the screen.
Letter Box
Black bands appear at the top and
bottom of the image. The image itself
appears in 16:9 aspect ratio.
4:3LB
MONITOR TYPE
PICTURE SOURCE
SCREEN SAVER
AUTO
ON
USE TO SELECT, USE OK TO CONFIRM.
TO EXIT, PRESS [SET UP MENU].
OK
SELECT
MP3&WMA / JPEG
MP3&WMA
