EDITING (S-VHS DECK)
Edit From A Camcorder

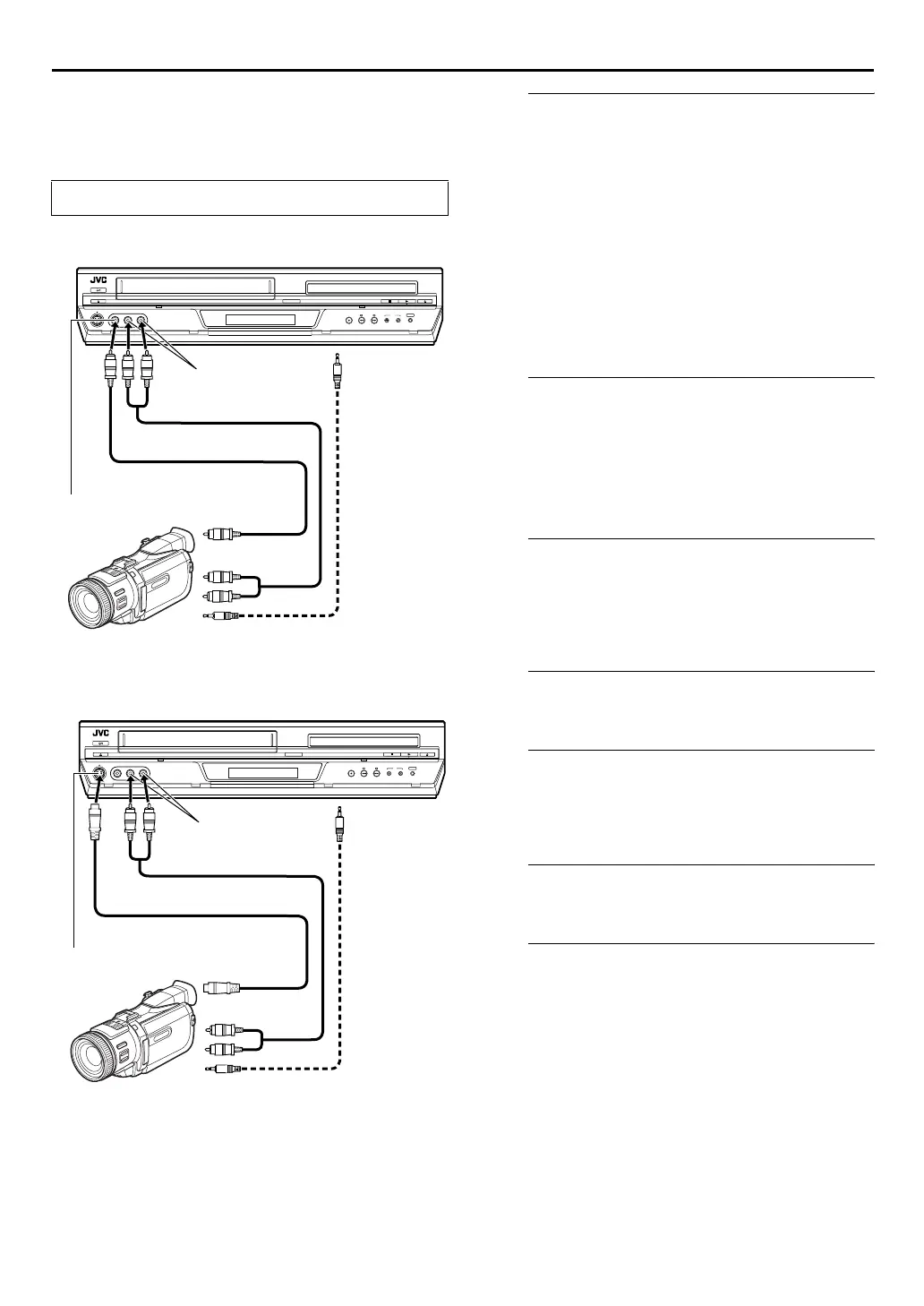

You can use a camcorder as the source player and your
unit as the recording deck.
A If the camcorder has no S-VIDEO output connector:
B If the camcorder has an S-VIDEO output connector:
A
Make connections.
A If the camcorder has no S-VIDEO output connector:
— connect the camcorder’s AUDIO OUT and VIDEO
OUT connectors to the unit’s front panel AUDIO and
VIDEO input connectors.
B If the camcorder has an S-VIDEO output connector:
— connect the camcorder’s AUDIO OUT and
S-VIDEO OUT connectors to the unit’s front panel
AUDIO and S-VIDEO input connectors.
● When using a monaural camcorder, connect its AUDIO OUT
connector to the AUDIO L input connector on your unit.
● When a Master Edit Control-equipped JVC camcorder is used,
the camcorder is capable of controlling the unit. Refer to the
camcorder’s instruction manual for operating procedure.
B
Select the S-VHS deck.
On the unit
Press VCR/DVD repeatedly so that the VCR indicator
lights up.
On the remote control
Press VCR so that the VCR indicator lights up.
C
Set the unit’s input mode.
Press AUX (number key “0”) and/or PR to select “F-1” for
the AUDIO and VIDEO input connectors, or “S-1” for the
AUDIO and S-VIDEO input connectors, depending on
the connectors being used.
D
Set the edit mode.
See “PICTURE CONTROL” on page 65.
E
Engage the Record Pause mode.
Use 4, 3, or 5 to locate the point where you start
recording, then press and hold 9 and press 7 to engage
the Record Pause mode.
F
Start the camcorder.
Engage the Play mode of the camcorder.
G
Start the unit.
Press 4 to engage the Record mode of the unit.
NOTES:
● All necessary cables can be obtained from your dealer.
● When you select “EDIT” to dub tapes in step D, be sure to
select “AUTO” (or “NORM” when “B.E.S.T.” is set to “OFF”)
after you finish dubbing the tapes.
Slide the TV/VCR/DVD switch to the right.
Recorder
AUDIO OUT
VIDEO OUT
AUDIO input
Player
VIDEO input
Video cable (not provided)
Audio cable (not provided)
EDIT
To PAUSE
connector
Mini-plug cable
(not provided)
(JVC camcorder
only)
Recorder
Audio cable (not provided)
S-VIDEO OUT
AUDIO OUT
S-VIDEO input
Player
AUDIO input
S-Video cable (not provided)
Mini-plug cable
(not provided)
(JVC camcorder
only)
To PAUSE
connector
EDIT
