SYSTEM CONNECTIONS
Connecting To A Satellite Receiver
Connect the satellite receiver to the L-2 IN/DECODER
connector, then connect the L-1 IN/OUT connector to
the TV’s connector.
NOTES:
● Set “L-2 SELECT” to “A/V”. (墌 pg. 57)
● You can use the Automatic Satellite Programme Recording
function (
墌 pg. 28) with this connection. (S-VHS deck only)
● To record a programme via the satellite receiver, select L-2
mode by pressing AUX (number key “0”) and/or PR so that
“L-2” appears on the front display panel. (S-VHS deck only)
● For details, refer to the instruction manual of the satellite
receiver.

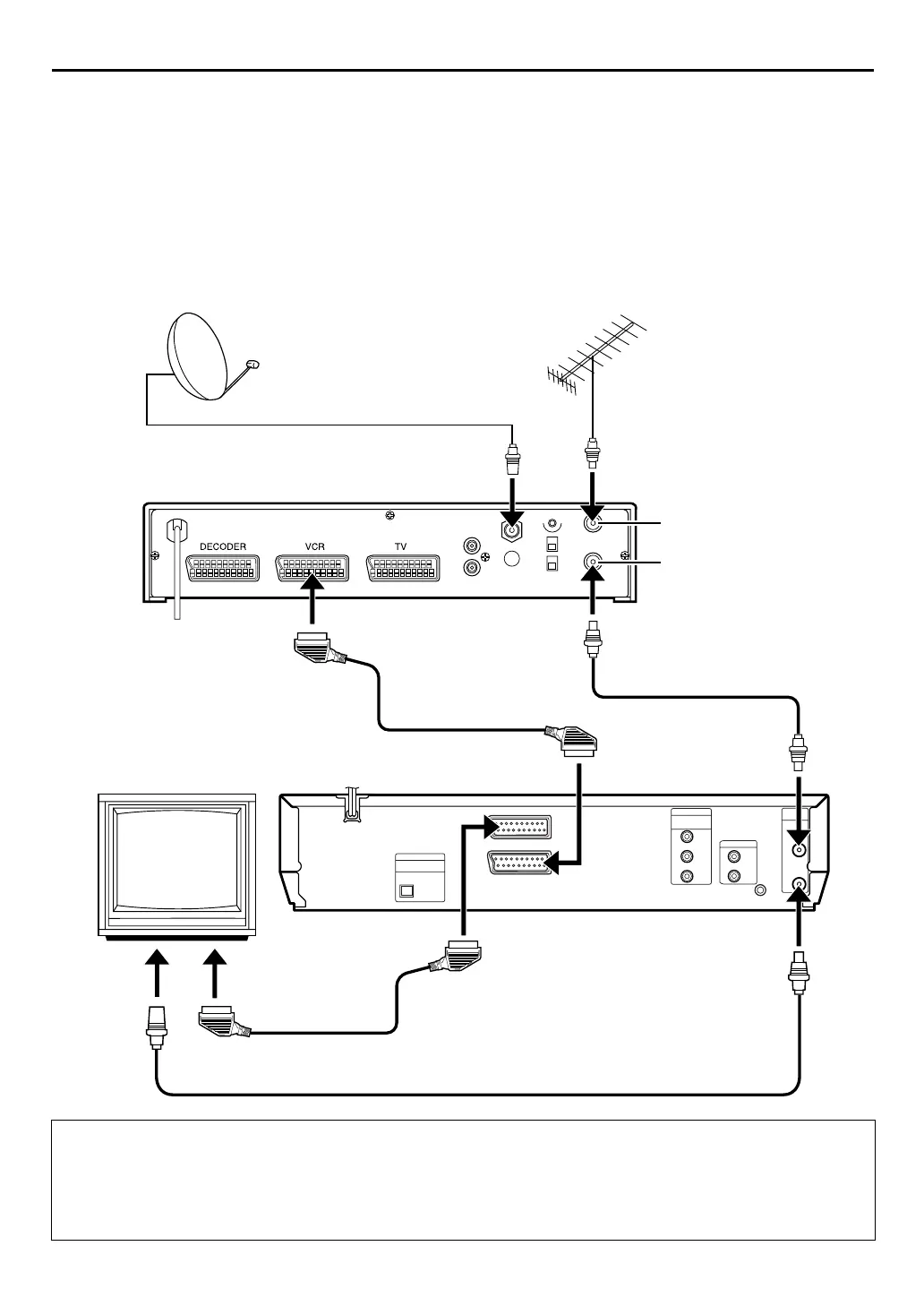

Outdoor unit
Satellite cable
Satellite receiver
Aerial
TV aerial cable
TV
ANTENNA OUT
ANTENNA IN
IMPORTANT
When you set “L-2 SELECT” to “SAT” (墌 pg. 57), it is possible to view a satellite broadcast with the TV set to its AV mode even if
the unit is turned off. When the unit is in Stop mode or recording, press TV/VCR on the remote control to turn off the VCR indicator
on the front display panel.
● If you turn on the unit when the satellite receiver’s power is off, nothing appears on the TV screen. In this case, turn on the
satellite receiver, or set the TV to its TV mode, or press TV/VCR on the remote control to set the unit to the video mode.
