JVC HX-Z1

HX-Z1
22
3.1.9 Removing the cams R1/R2 assemblyand cam gear q
(See Fig.22)
(1) Remove the slit washer fixing the cams R1 and R2 assem-
bly.
(2) By removing the two pawls w fixing the cam R1, separate
R2 from R1.
(3) Remove the slit washer fixing the cam gear q .
(4) Pull out the cam gear q from the C.G. base assembly.
3.1.10 Removing the C.G. base assembly
(See Fig.22 and 23)
Remove the three screws J retaining the C.G. base assembly.
[Caution]
To reassemble the cylinder gear, etc.with the cam unit (cam
gear and cans R1/R2 assembly), gear unit and drive unit,
align the position of the pawl x on the drive unit to that of the
notch on the cam gear q . Then, make sure that the gear unit
is engaged by turning the cam gear q (See Fig. 23).

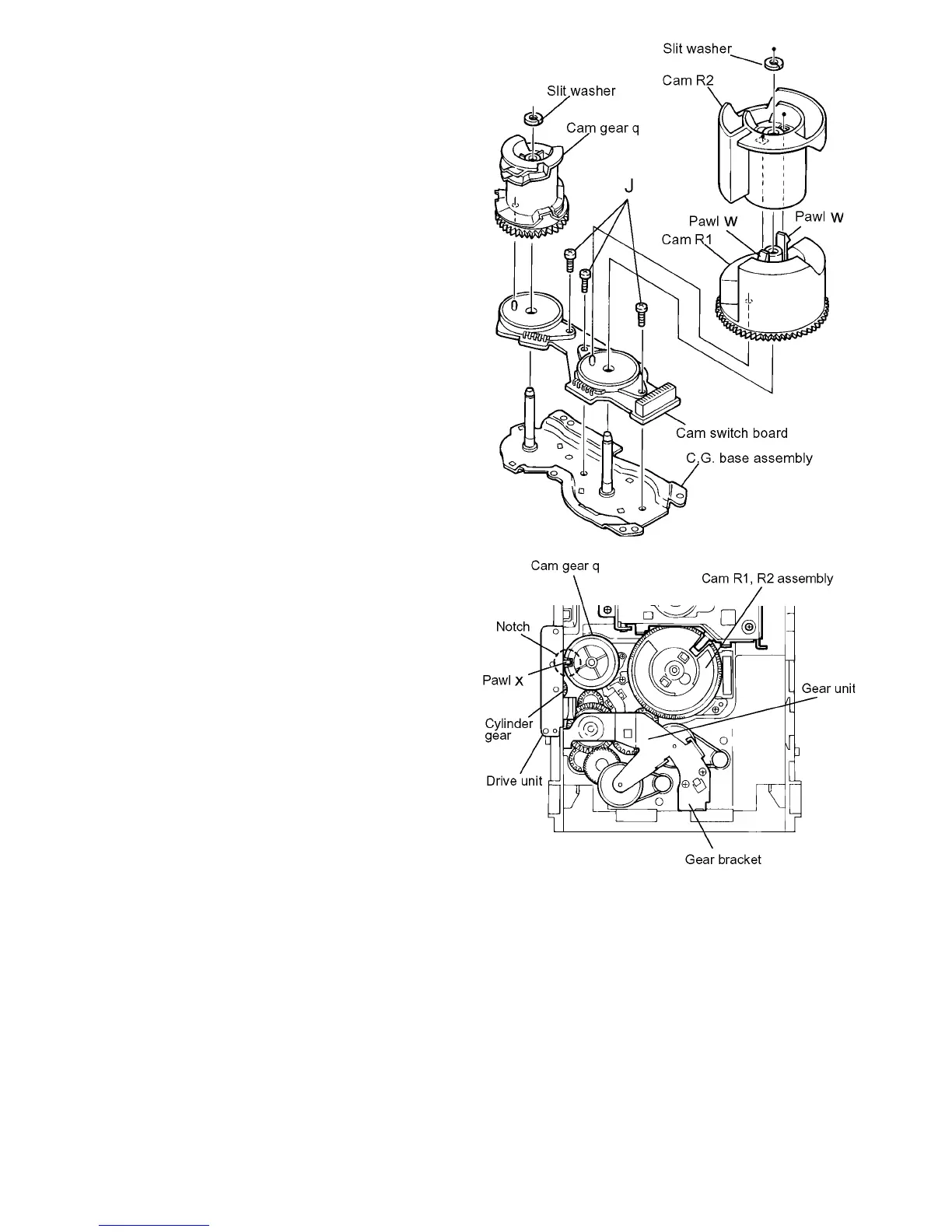

Fig.22
Fig.23
