KD-LH3150, KD-LH3100
1-30 (No.49838)

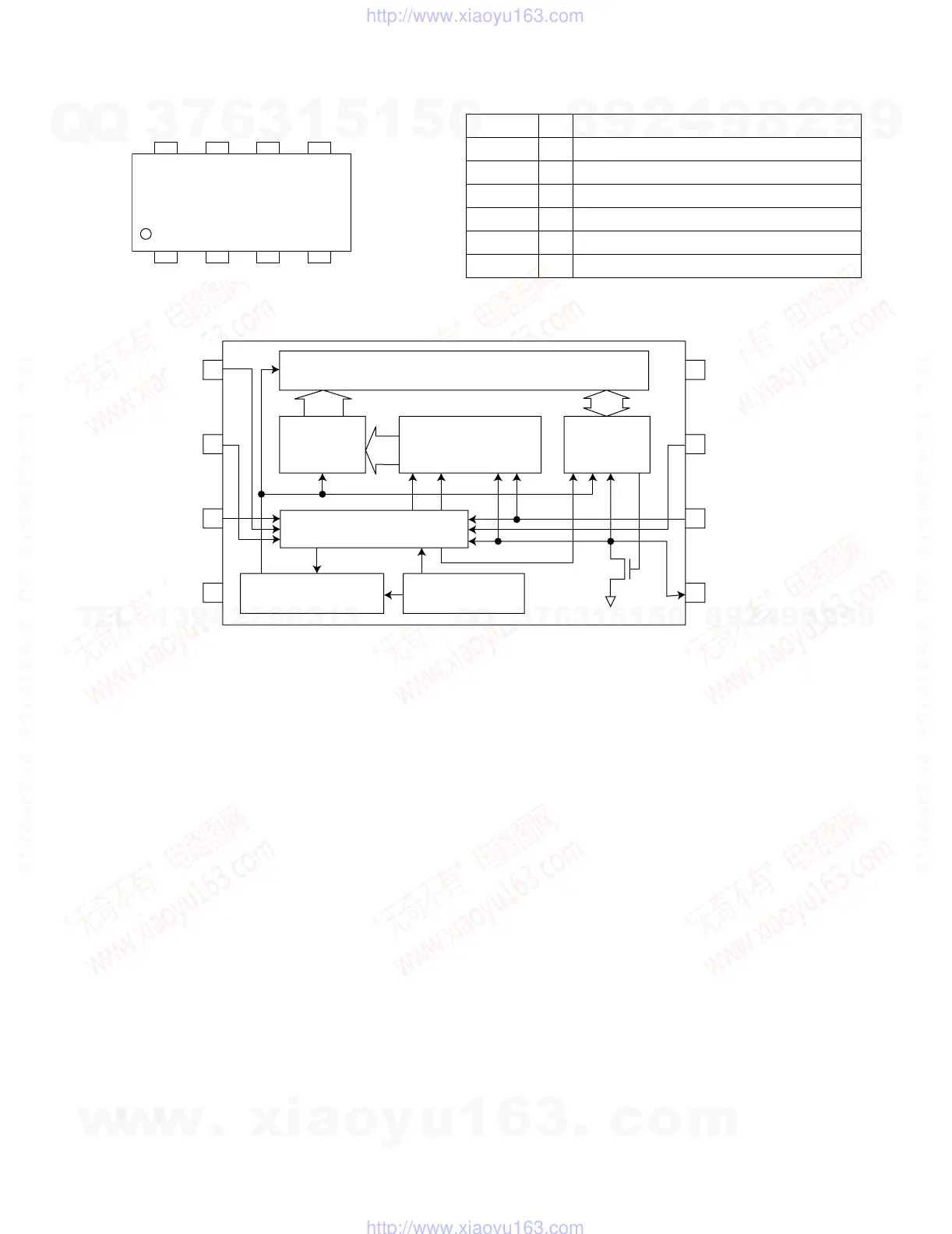

4.4 BR24C16F-X (IC703) : EEPROM
Pin layout Pin function
Block diagram
VCC WP SCL SDA
A0 A1 A2 GND
Symbol I/O Function
VCC - Power supply.
GND - GND
A0, A1, A2 I No use connect to GND.
SCL I Serial clock input.
SDA I/O Serial data I/O of slave and ward address.
WP I Write protect terminal.
8 Vcc
7 WP
6 SCL
5 SD
A
A0 1
A1 2
A2 3
GND 4
16kbit EEPROM allay
11bit
11bit
8bit
Address
decoder
Slave Ward
Address resister
Data
resister
START
STOP
ACK
Control circuit
High voltage osc circuit
Power supply
voltage det.
