KD-LH3150, KD-LH3100
1-8 (No.49838)
2.2 CD Mechanism section
2.2.1 Removing the top cover
(See Figs.1 and 2)
(1) Remove the four screws A on the both side of the body.
(2) Lift the front side of the top cover and move the top cover
backward to release the two joints a.

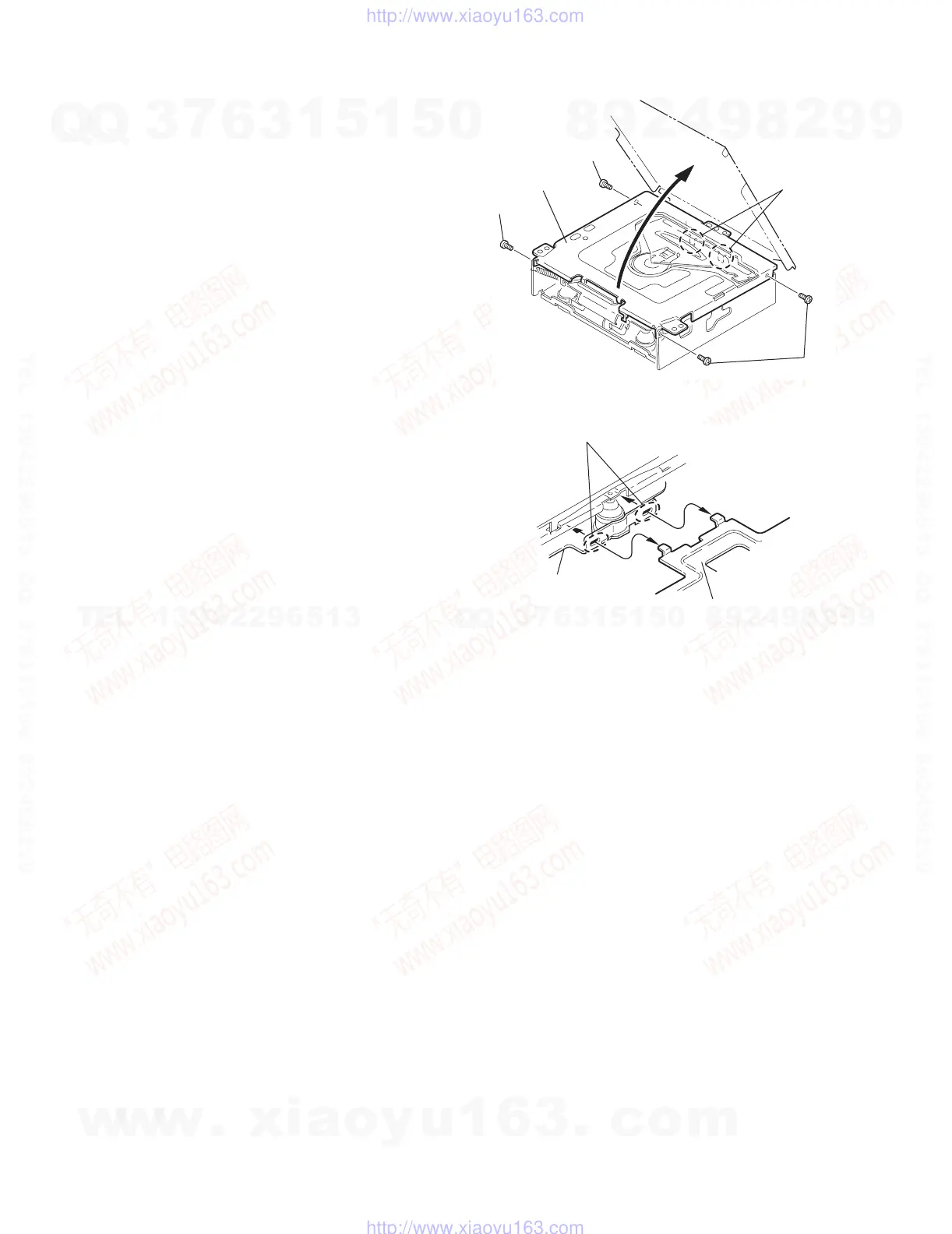

Fig.1
Fig.2
A
A
Joints a
Top cover
Joints a
Top cover
