KD-LH3150, KD-LH3100
(No.49838)1-7

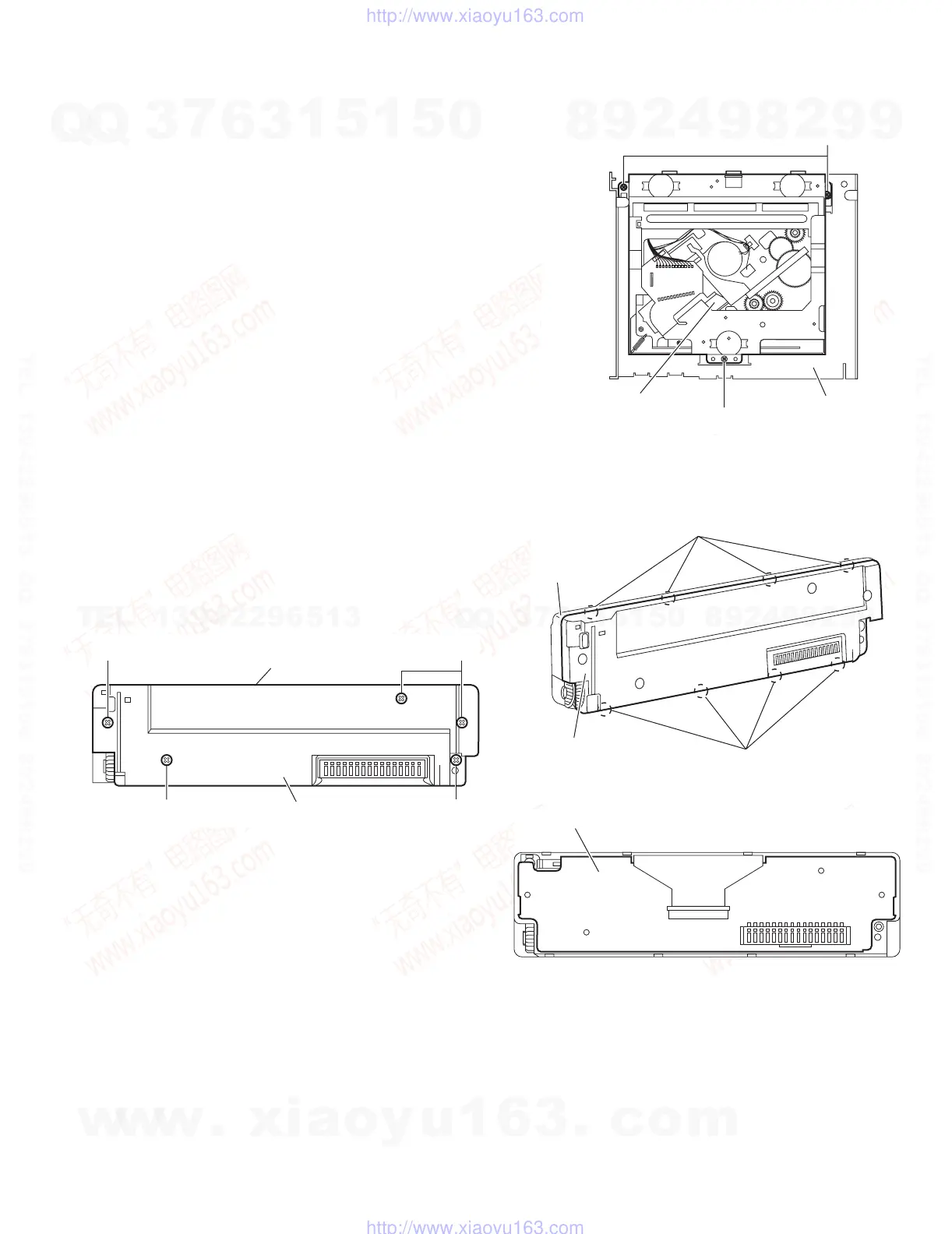

2.1.8 Removing the CD mechanism assembly
(See Fig.9)
• Prior to performing the following procedure, remove the front
panel assembly, bottom cover, front chassis assembly, heat
sink, rear bracket, main board and mecha control board.
(1) Remove the three screws K attaching the CD mechanism
assembly to the top chassis.
Fig.9
2.1.9 Removing the front board
(See Figs.10 to 12)
• Prior to performing the following procedures, remove the front
panel assembly.
(1) Remove the five screws L attaching the rear cover on the
back side of the front panel assembly. (See Fig.10.)
(2) Release the eight joints g, remove the rear cover from the
front panel assembly. (See Fig.11.)
(3) Take out the front board. (See Fig.12.)
Fig.10
Fig.11
Fig.12
K
K
CD mechanism assembly
Top chassis
L
L
L
L
Front panel assembly
Rear cover
Joint g
Joint g
Rear cover
Front panel
assembly
Front board
