(No.YA683<Rev.001>)2-39 2-40(No.YA683<Rev.001>)
DIGITAL MAIN PWB ASS'Y(4/6)
FU-1ESA19709[LT-19DA1BJ/AK]
FU-1ESA19153[LT-19DA1BU/AK]
A8CN8SCD4_1215_4/6_0.0
The order of pins shown in this diagram is different from that of actual IC4513.
IC4513 is divided into five and shown as IC4513 (1/5) ~ IC4513 (5/5) in this Digital Main Schematic Diagram Section.
1 NOTE:

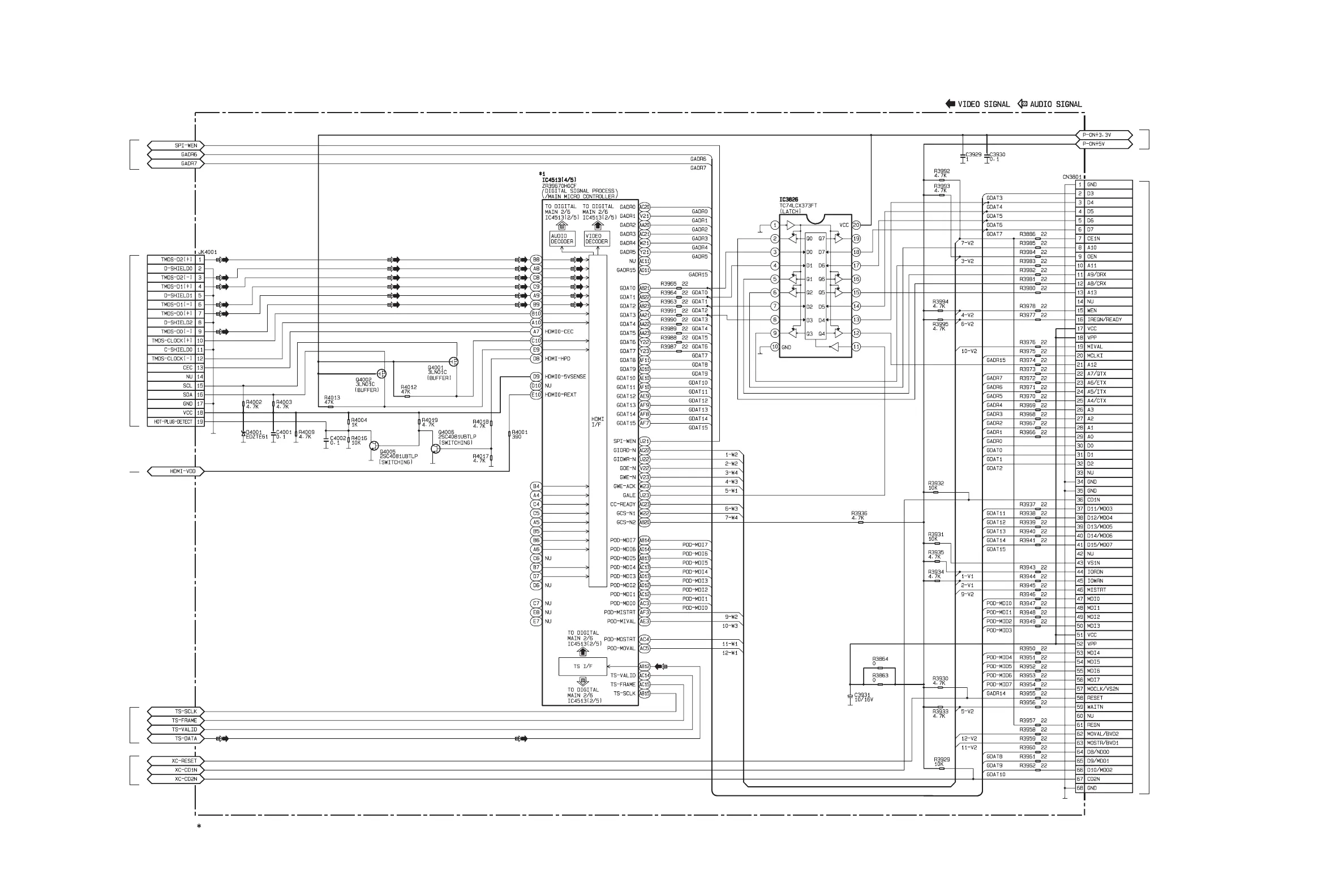

DIGITAL MAIN PWB CIRCUIT DIAGRAM (4/6)
DIGITAL MAIN PWB(6/6)
DIGITAL MAIN PWB(3/6)
DIGITAL MAIN PWB(5/6)
DIGITAL MAIN PWB(3/6)
DIGITAL MAIN PWB(6/6)
HDMI
CONNECTOR-1
CI CARD SLOT
This schematic is only for reference.
Avoid replacing individual parts.
Relpace the entire PWB ASS'Y only.
To Next Page
