JVC LT-19DA9BJ - Page 61

2-42(No.YA683<Rev.001>)(No.YA683<Rev.001>)2-41
DIGITAL MAIN PWB ASS'Y(5/6)
FU-1ESA19709[LT-19DA1BJ/AK], FU-1ESA19153[LT-19DA1BU/AK]
A8CN8SCD5_1215_5/6_0.0

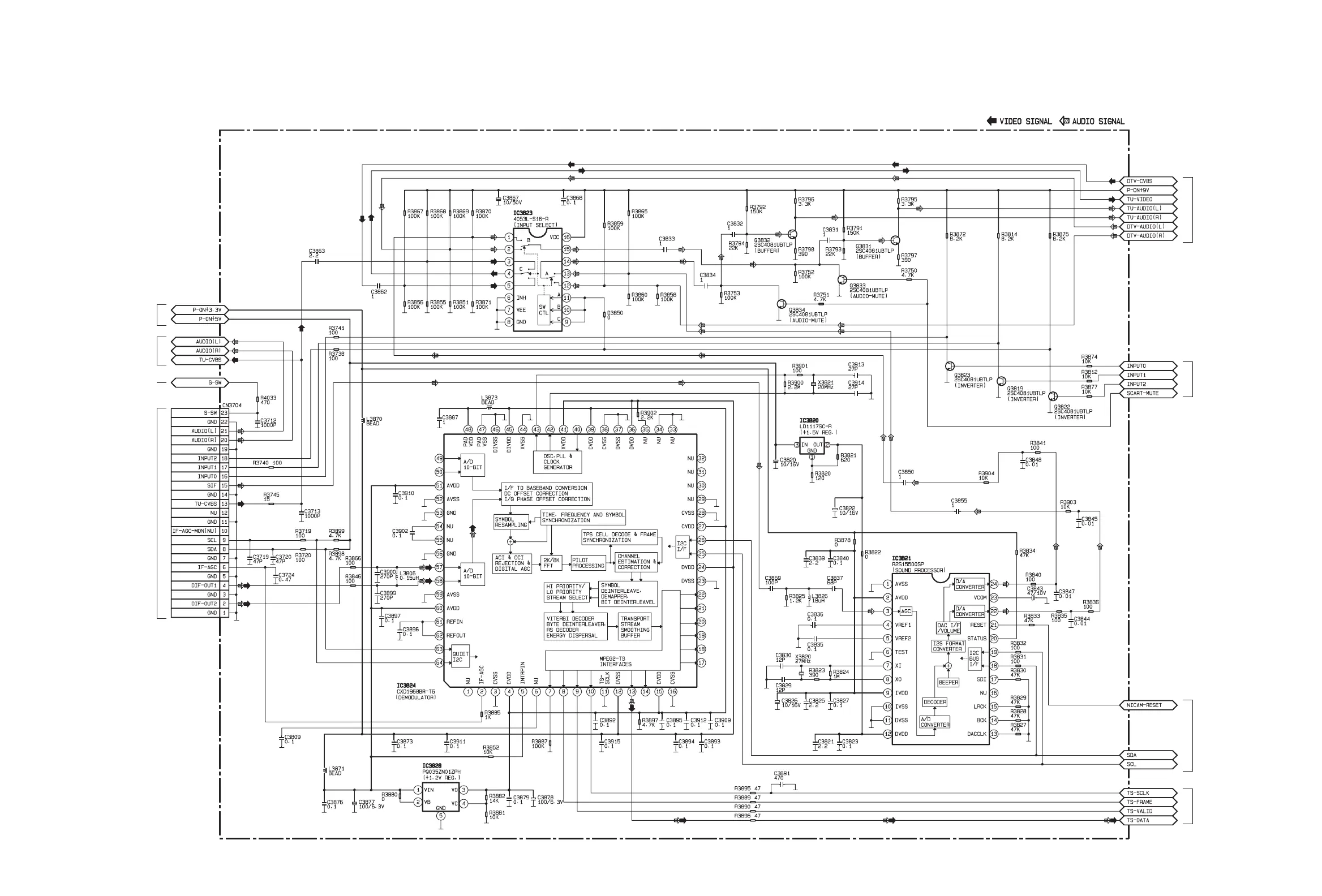

DIGITAL MAIN PWB CIRCUIT DIAGRAM (5/6)
DIGITAL MAIN PWB(3/6)
DIGITAL MAIN PWB(6/6)
DIGITAL MAIN PWB(3/6)
DIGITAL MAIN PWB(2/6)
MAIN PWB(1/3)
CN103A
DIGITAL MAIN PWB(2/6)
DIGITAL MAIN PWB(4/6)
DIGITAL MAIN PWB(3/6)
This schematic is only for reference.
Avoid replacing individual parts.
Relpace the entire PWB ASS'Y only.
