Installation
2-2 Attach the hooks again.

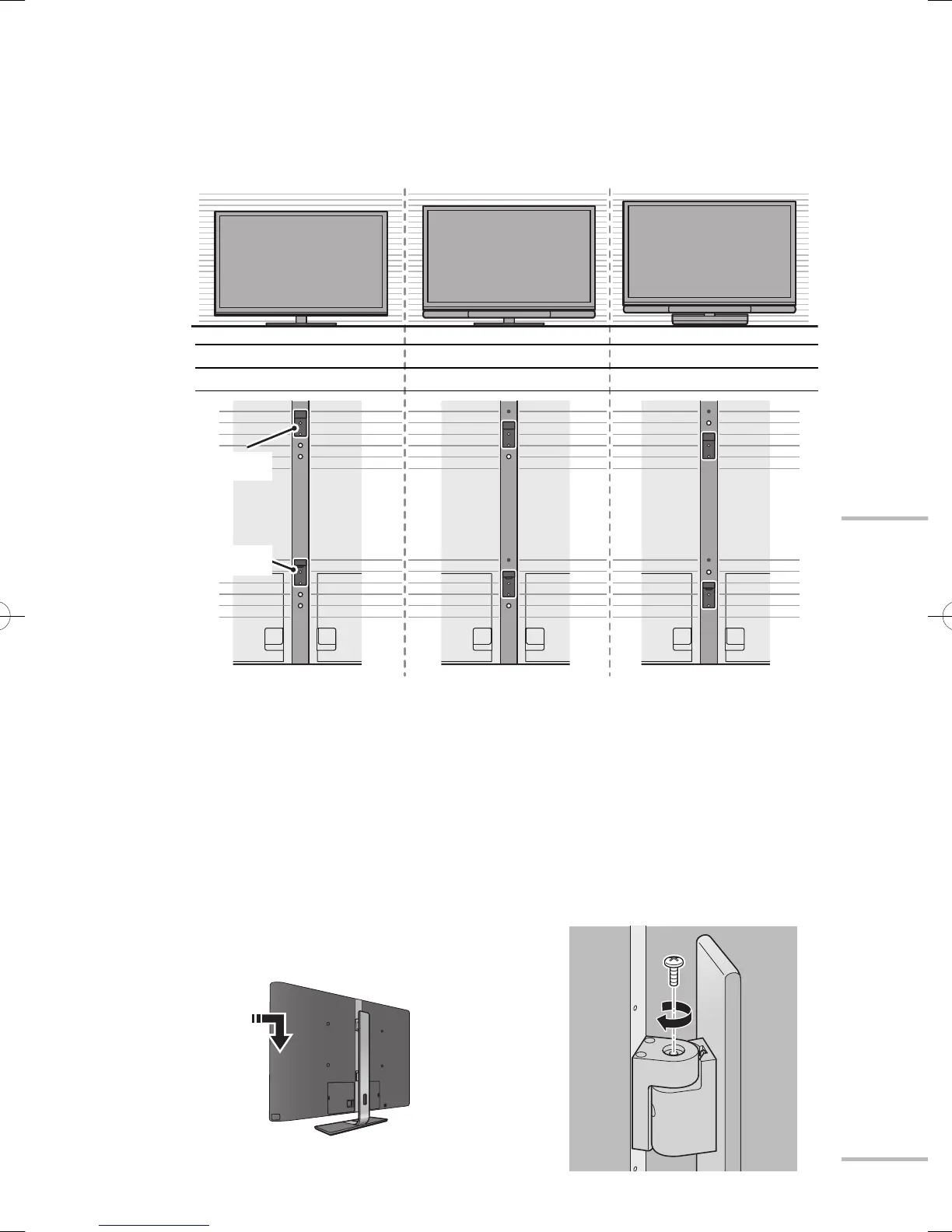

● Select the positions of the hooks according to the monitor position you want,
and fix them with the screws.
Speaker unit x √ x √
Tuner x x √ √
3 Attach the monitor to the stand.
3-1 Hang the monitor to the
stand.
● After hanging the monitor on the
stand, swing the monitor from
side to side a few times so that
the hooks on the monitor and
the pivots on the stand engage
properly in position.
3-2 Fasten the screw.
● After fastening the screw, swing
the monitor a few times to check
if it is hinged with the stand
properly. After that, fasten the
screw tight again.
Hook (upper)
Hook (lower)
