09

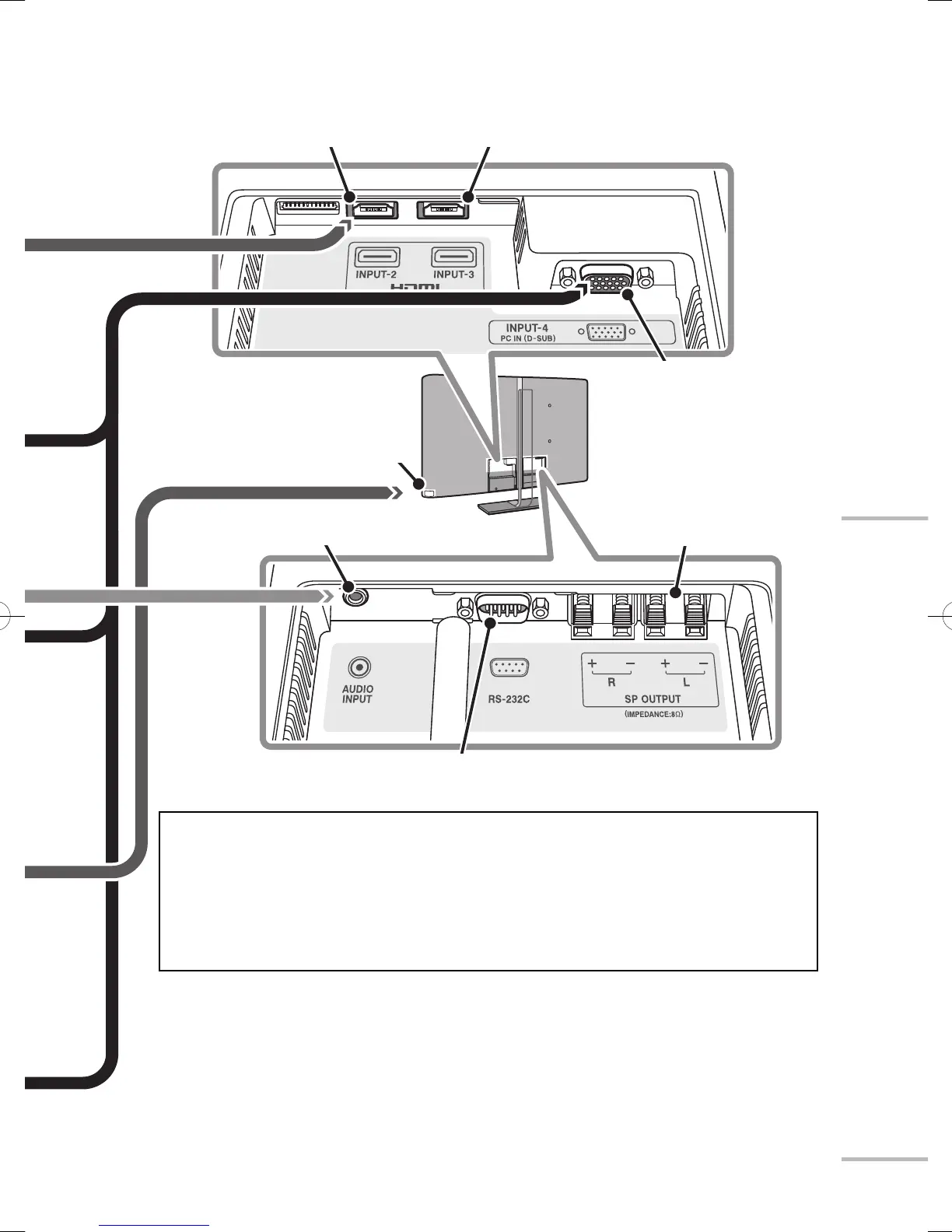

Installation
INPUT-1: HDMI
TM
terminal
INPUT-2: HDMI
TM
terminal INPUT-3: HDMI
TM
terminal
INPUT-4 terminal:
D-sub 15 pin
AUDIO INPUT terminal
Speaker terminals (➔
page 05)
RS-232C terminal (For controlling the monitor from a computer.
Contact qualified personnel for detailed information.)
A: Video cable (supplied)
B: Audio cable (supplied)
a: HDMI cable (separately purchased)
b: Component cable (separately
purchased)
c: Audio cable (separately purchased)
d: Video cable (separately purchased)
e: DVI-HDMI cable (separately
purchased)
f: VGA cable (separately purchased)
g: Audio cable (separately purchased)
● When using the INPUT-4 terminal, set “ Input-4 Setting ” (➔ page 33) properly
according to the connected device.
● To reduce noise, use a VGA cable with core filters.
● When you connect a DVI device to INPUT-2 or INPUT-3, only the video signal is
played back, and the sound signal is not.
● HDMI
TM
(V.1.3, with Deep Color, with x.v.Colour
TM
, HDMI
TM
CEC Support)
WX70instasia.indb09WX70instasia.indb09 09.3.33:23:55PM09.3.33:23:55PM
