1-10 (No.MB191)
3.1.3 Removing the tuner
(See Figs.8 and 9.)
• Prior to performing the following procedures, remove the metal
cover.
(1) From the top side of the main body, disconnect the card
wire from the connector CN21
on the main board. (See
Fig.8.)
(2) From the back side of the main body, remove the two
screws G attaching the tuner to the rear panel. (See Fig.9.)
3.1.4 Removing the video board
(See Figs.8 and 9.)
• Prior to performing the following procedures, remove the metal
cover.
(1) From the top side of the main body, disconnect the card
wire from the connector CN410
on the main board. (See
Fig.8.)
(2) From the back side of the main body, remove the two
screws H attaching the video board to the rear panel. (See
Fig.9.)

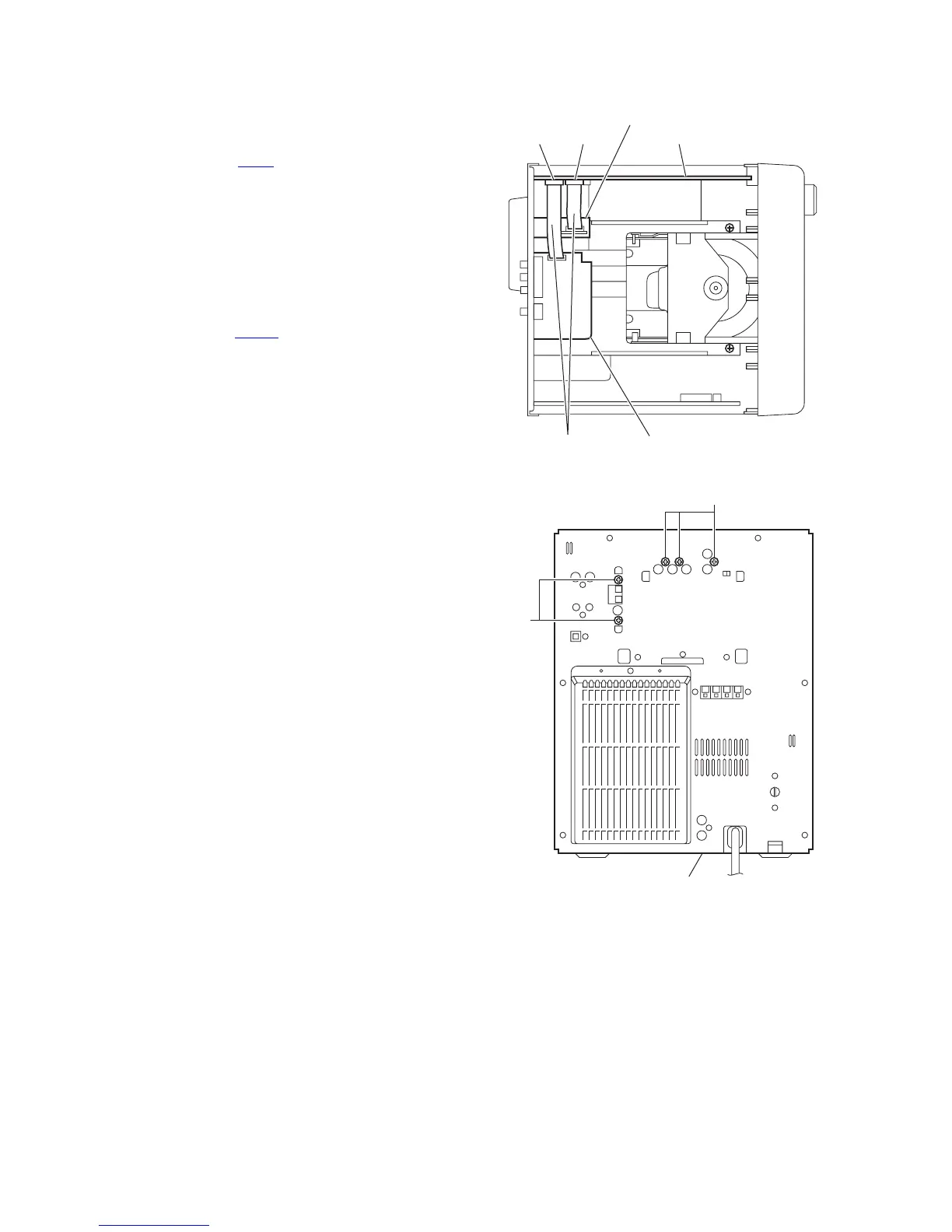

Fig.8
Fig.9
CN410 CN21 Main board
Video boardCard wires
Tuner
Rear panel
H
G
