3.1.14 Removing the FL board
(See Figs.23 and 24)
• Prior to performing the following procedures, remove the metal
cover and front panel assembly.
(1) From the front side of the front panel assembly, pull the vol-
ume knob out of the front panel assembly. (See Fig.23.)
(2) From the inside of the front panel assembly, remove the six
screws U attaching the FL board. (See Fig.24.)
(3) Release the claws q in the direction of the arrow and take
out the FL board from the front panel assembly. (See
Fig.24.)
3.1.15 Removing the switch board
(See Figs.23 to 25)
• Prior to performing the following procedures, remove the metal
cover and front panel assembly.
(1) From the front side of the front panel assembly, pull the mi-
crophone knob out of the front panel assembly. (See
Fig.23.)
(2) From the inside of the front panel assembly, remove the six
screws V attaching the stay bracket. (See Fig.24.)
(3) From the inside of the front panel assembly, remove the
thirteen screws W attaching the switch board. (See Fig.25.)
(4) Take out the switch board from the front panel assembly.
3.1.16 Removing the cassette mechanism assembly
(See Fig.25)
• Prior to performing the following procedures, remove the metal
cover and front panel assembly.
(1) From the inside of the front panel assembly, remove the
three screws X, screw X’ and two screws Y attaching the
cassette mechanism assembly.
(2) Take out the cassette mechanism assembly from the front
panel assembly.
Reference:
• When attaching the screw X’, attach the earth wire with it.
• When attaching the screws Y, attach the swing cam (L)/(R)
with them.

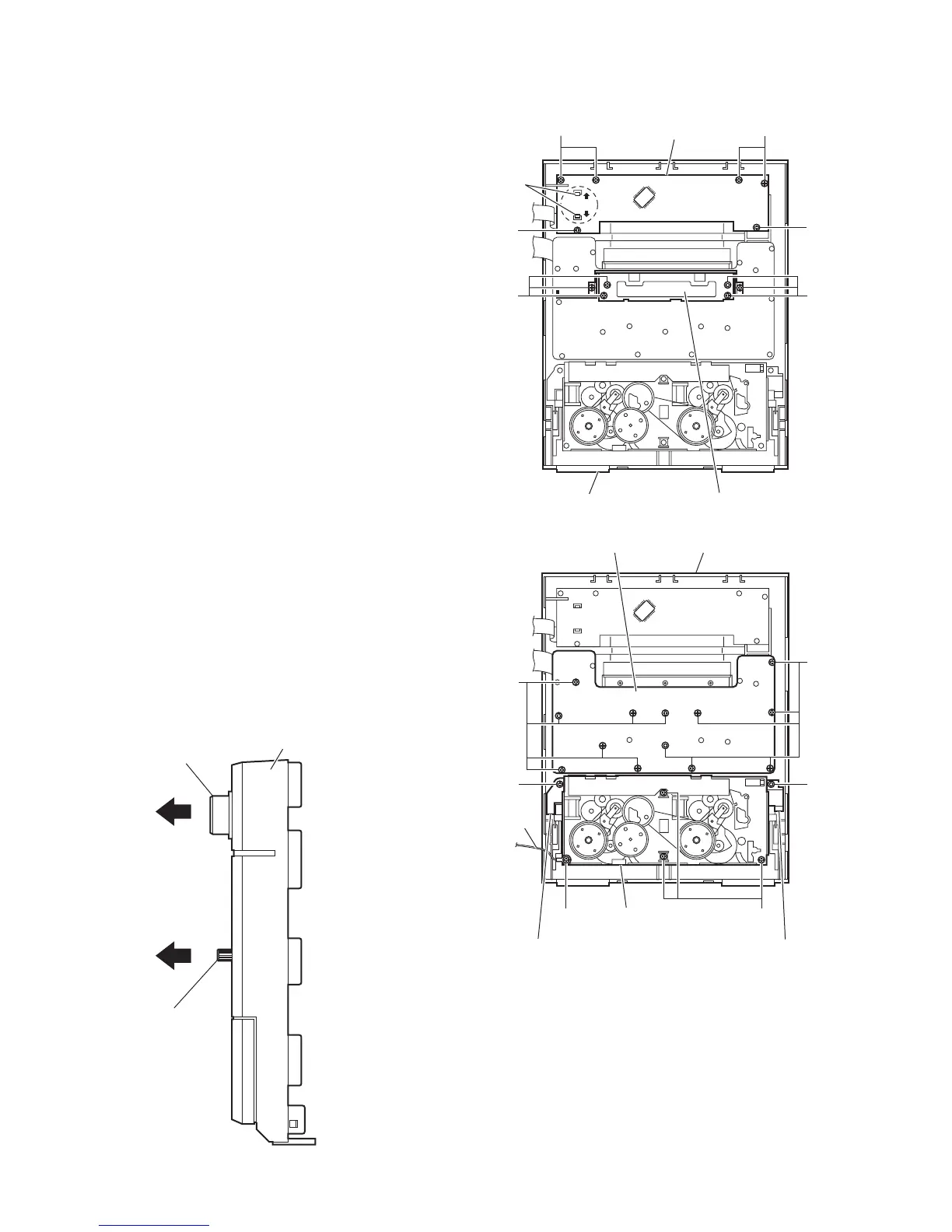

Fig.23
Fig.24
Fig.25
Microphone knob
Volume knob
Front panel assembly
UU
U
V
U
FL board
q
Stay bracketFront panel assembly
V
W
Y
X
Front panel assembly
Swing cam (R)
assembly
Earth
wire
Swing cam (L)
assembly
Cassette mechanism
assembly
W
Switch board
Y
X'
