3.4.4 Removing the speaker
(See Figs.4 and 5)
• Prior to performing the following procedures, remove the front
panel assembly.
(1) From the front side of the speaker main body, remove the
four screws B attaching the speaker. (See Fig.4.)
(2) Take out the speaker from the speaker main body and dis-
connect the wires (red/black, yellow/black) from the termi-
nal of the speaker. (See Fig.5.)

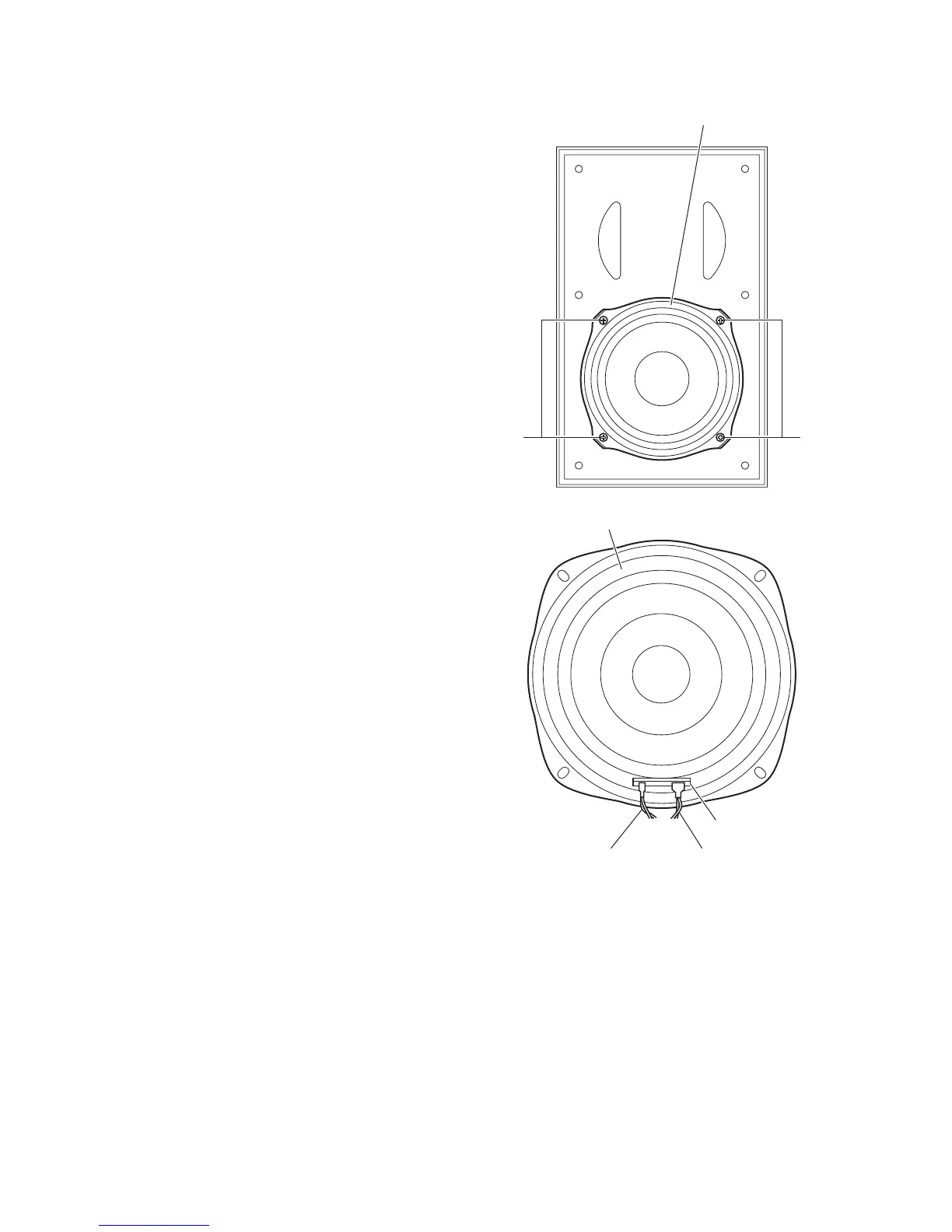

Fig.4
Fig.5
Speaker
BB
Speaker
Wires (yellow/black) Wires (red/black)
Terminal
