(No.MB191)1-29

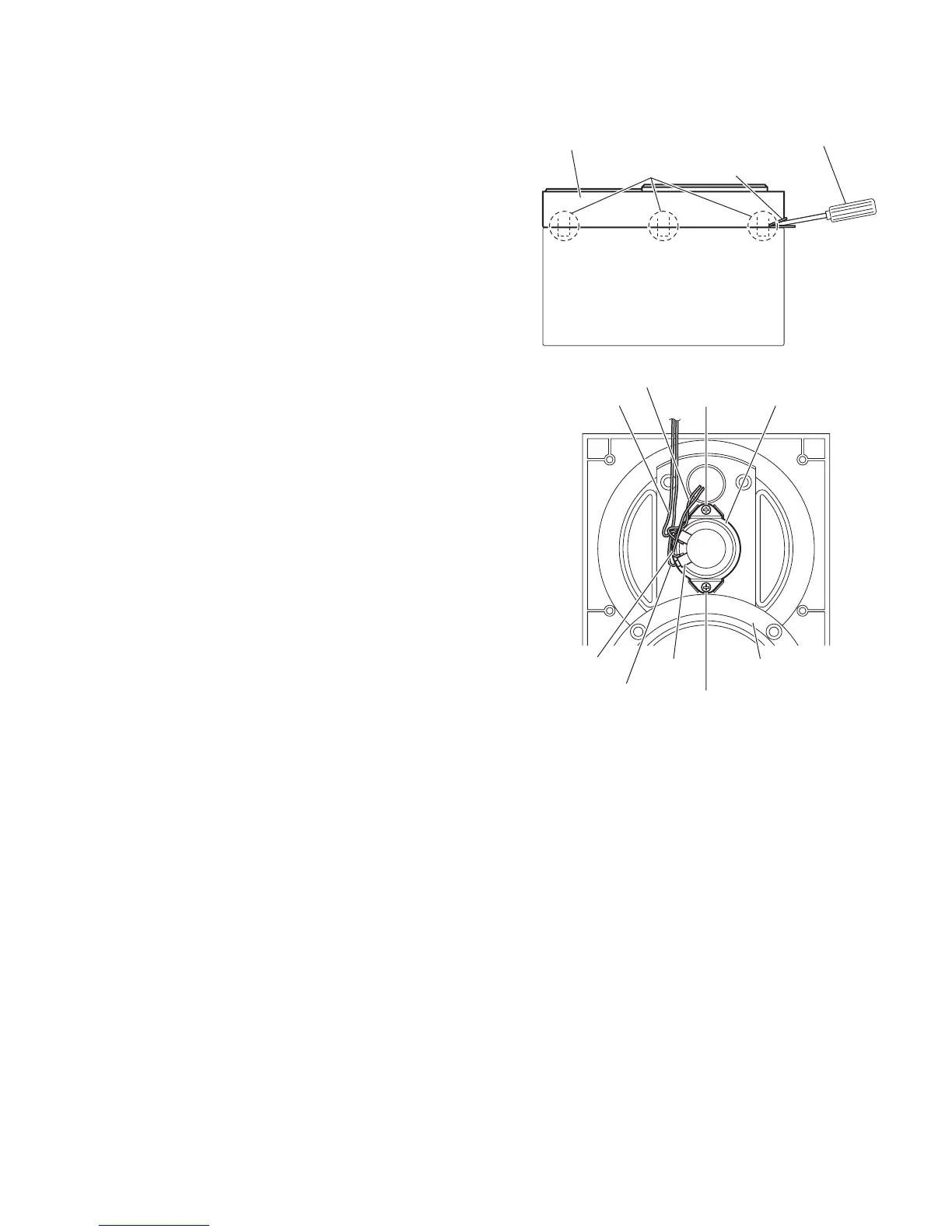

3.4.2 Removing the front panel assembly
(See Figs.2 and 3)
• Remove the net assembly as required.
(1) Insert the tip of a flat-bladed screwdriver or similar tool into
the space between the speaker main body and front panel
assembly, and lift the front panel assembly little by little to
remove the sections b. (See Fig.2.)
Note:
To prevent damaging the front panel assembly and
speaker main body, insert cushioning plates etc. into the
space between the speaker main body and front panel
assembly. (See Fig.2.)
(2) From the inside of the front panel assembly, disconnect the
yellow and black wires from the terminal of the tweeter.
(See Fig.3.)
3.4.3 Removing the tweeter
(See Fig.3)
• Prior to performing the following procedures, remove the front
panel assembly.
(1) Disconnect the blue and white wires from the terminal of
the tweeter.
(2) Remove the two screws A attaching the tweeter.
(3) Take out the tweeter from the front panel assembly.
Fig.2
Fig.3
b
Front panel assembly
Cushioning
plate, etc.
Flat-bladed
screwdriver,etc.
Wire(black)
Wire(blue) Terminal
Wire(yellow)
Wire(white)
Tweeter
A
A
Front panel assembly
To Next Page
