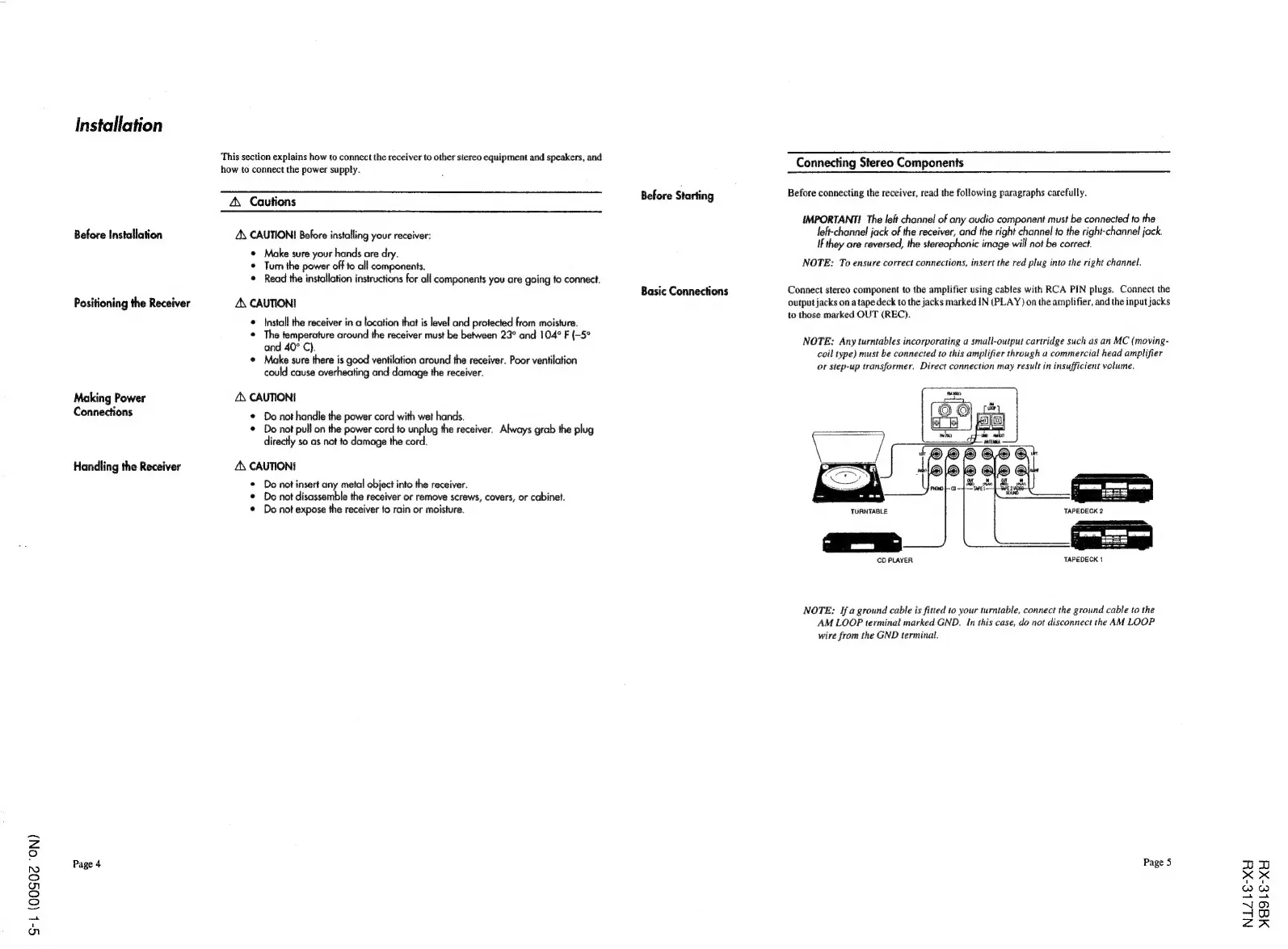

Installation
Before Installation
Positioning the Receiver
Making Power
Connections
Handling the Receiver
Page 4
This section explains how to connect the receiver to other stereo equipment and speakers, and
how to connect the power supply.
4 Cautions
AX CAUTION! Before installing your receiver:
* Make sure your hands are dry.
© Tum the power off to all components.
* Read the installation instructions for all components you are going to connect.
A\ CAUTION!
* Install the receiver in a location that is level and protected from moisture.
¢ The temperature around the receiver must be between 23° and 104° F {-5°
and 40° C).
* Make sure there is good ventilation around the receiver. Poor ventilation
could cause overheating and damage the receiver.
ZN CAUTION!
© Do not handle the power cord with wet hands.
* Do not pull on the power cord to unplug the receiver. Always grab the plug
directly so as not to damage the cord.
A\ CAUTIONI
* Do not insert any metal object into the receiver.
© Do not disassemble the receiver or remove screws, covers, or cabinet.
* Donot expose the receiver to rain or moisture.
Connecting Stereo Components
Before Starting Before connecting the receiver, read the following paragraphs carefully.
IMPORTANT! The left channel of any audio component must be connected to the
leftchannel jack of the receiver, and the right channel to the right-channel jack.
If they are reversed, the stereophonic image will not be correct.
NOTE: To ensure correct connections, insert the red plug into the right channel.
Connect stereo component to the amplifier using cables with RCA PIN plugs. Connect the
output jacks on a tape deck to the jacks marked IN (PLAY) on the amplifier, and the input jacks
to those marked OUT (REC).
Basic Connections
NOTE: Any turntables incorporating a small-output cartridge such as an MC (moving-
coil type) must be connected to this amplifier through a commercial head amplifier
or step-up transformer. Direct connection may result in insufficient volume.
TURNTABLE
CD PLAYER TAPEDECK 1
NOTE: If a ground cable is fitted to your turntable, connect the ground cable to the
AM LOOP terminal marked GND. In this case, do not disconnect the AM LOOP
wire from the GND terminal.
