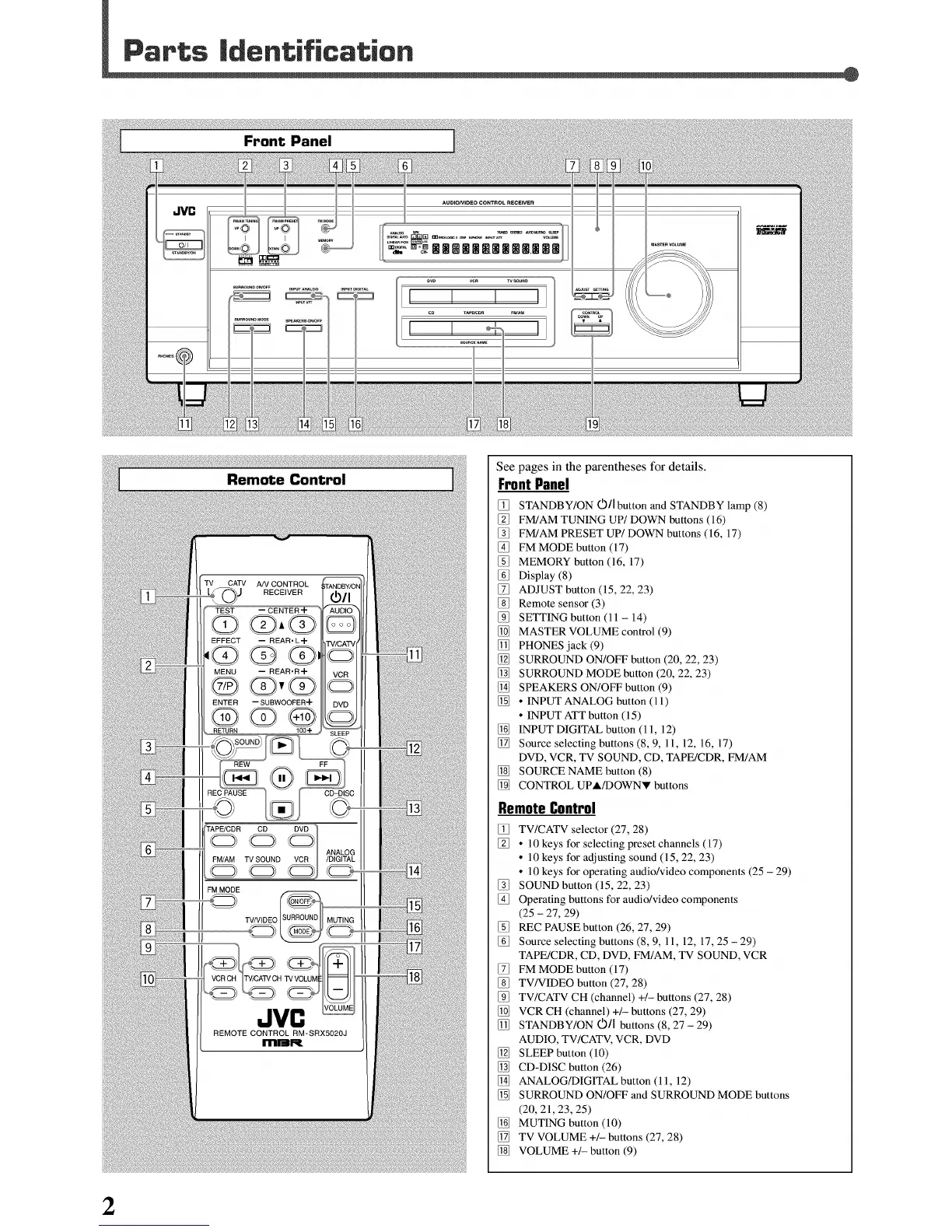

Parts identification
See pages in the parentheses for details.
Front Panel
STANDBY/ON O11 button and STANDBY lamp (8)
FM/AM TUNING UP/DOWN buttons (16)
FM/AM PRESET UP/DOWN buttons (16, 17)
FM MODE button (17)
MEMORY button (16, 17)
Display (8)
ADJUST button (15, 22, 23)
Remote sensor (3)
SETTING button (11 - 14)
MASTER VOLUME control (9)
PHONES jack (9)
SURROUND ON/OFF button (20, 22, 23)
SURROUND MODE button (20, 22, 23)
SPEAKERS ON/OFF button (9)
• INPUT ANALOG button (11)
• INPUT ATT button (15)
INPUT DIGITAL button (11, 12)
Source selecting buttons (8, 9, 11, 12, 16, 17)
DVD, VCR, TV SOUND, CD, TAPE/CDR, FM/AM
SOURCE NAME button (8)
CONTROL UPA/DOWNV buttons
Remote Control
TV/CATV selector (27, 28)
• 10 keys for selecting preset channels (17)
• 10 keys for adjusting sound (15, 22, 23)
• 10 keys for operating audio/video components (25 - 29)
SOUND button (15, 22, 23)
Operating buttons for audio/video components
(25 - 27, 29)
REC PAUSE button (26, 27, 29)
Source selecting buttons (8, 9, 11, 12, 17, 25 - 29)
TAPE/CDR, CD, DVD, FM/AM, TV SOUND, VCR
FM MODE button (17)
TV/VIDEO button (27, 28)
TV/CATV CH (channel) +/- buttons (27, 28)
VCR CH (channel) +/- buttons (27, 29)
STANDBY/ON Oil buttons (8, 27 - 29)
AUDIO, TV/CATV, VCR, DVD
SLEEP button (10)
CD-DISC button (26)
ANALOG/DIGITAL button (11, 12)
SURROUND ON/OFF and SURROUND MODE buttons
(20, 21,23, 25)
MUTING button (10)
TV VOLUME +/- buttons (27, 28)
VOLUME +/- button (9)
2
