3-2

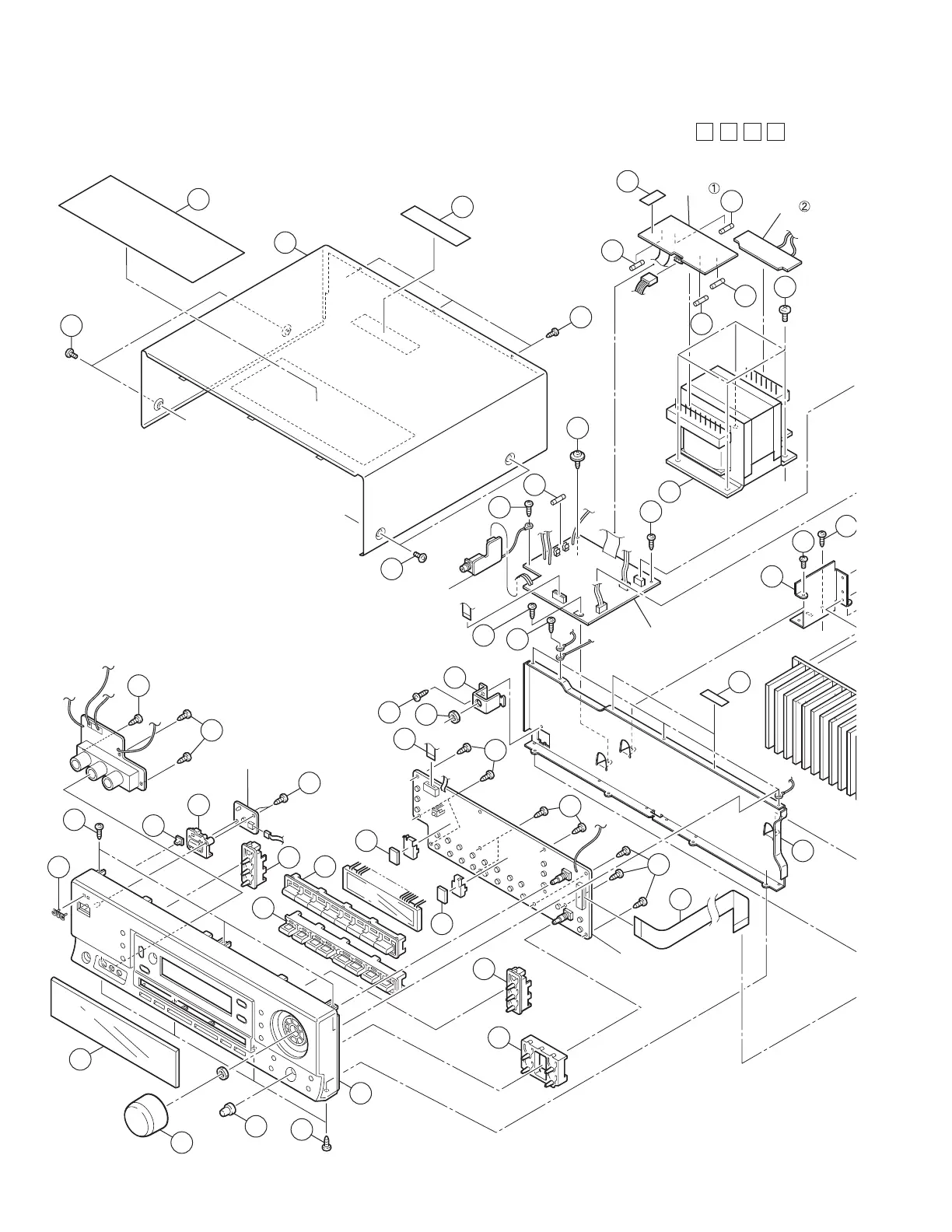

Exploded view of general assembly and parts list
B
E
A
C
A'
D
b
b
c
c
e
f
i
k
h
i
k
g
Power/F
u
F202
BK701
BK702
F206
F205
Main board
System control board
Power transformer
board
Power transformer
board
F203
F207
Headphone jack
board
Power switch board
h
j
Block No.
M
M
M
1
40
13
42
2
45
66
69
35
23
22
42
20
44
61
42
63
62
18
1
79
80
60
58
37
11
11
61
10
6
8
11
11
11
21
70
12
32
77
16
5
8
9
15
7
4
77
3
68
67
76
59

JVC RX-5060BJ Specifications

General

Channels	5.1
Tuning range	FM, MW
Frequency Response	10Hz to 50kHz
Total Harmonic Distortion	0.8%
Input Sensitivity	2.5mV (MM)
Output	200mV (line)
Video Connections	Composite
