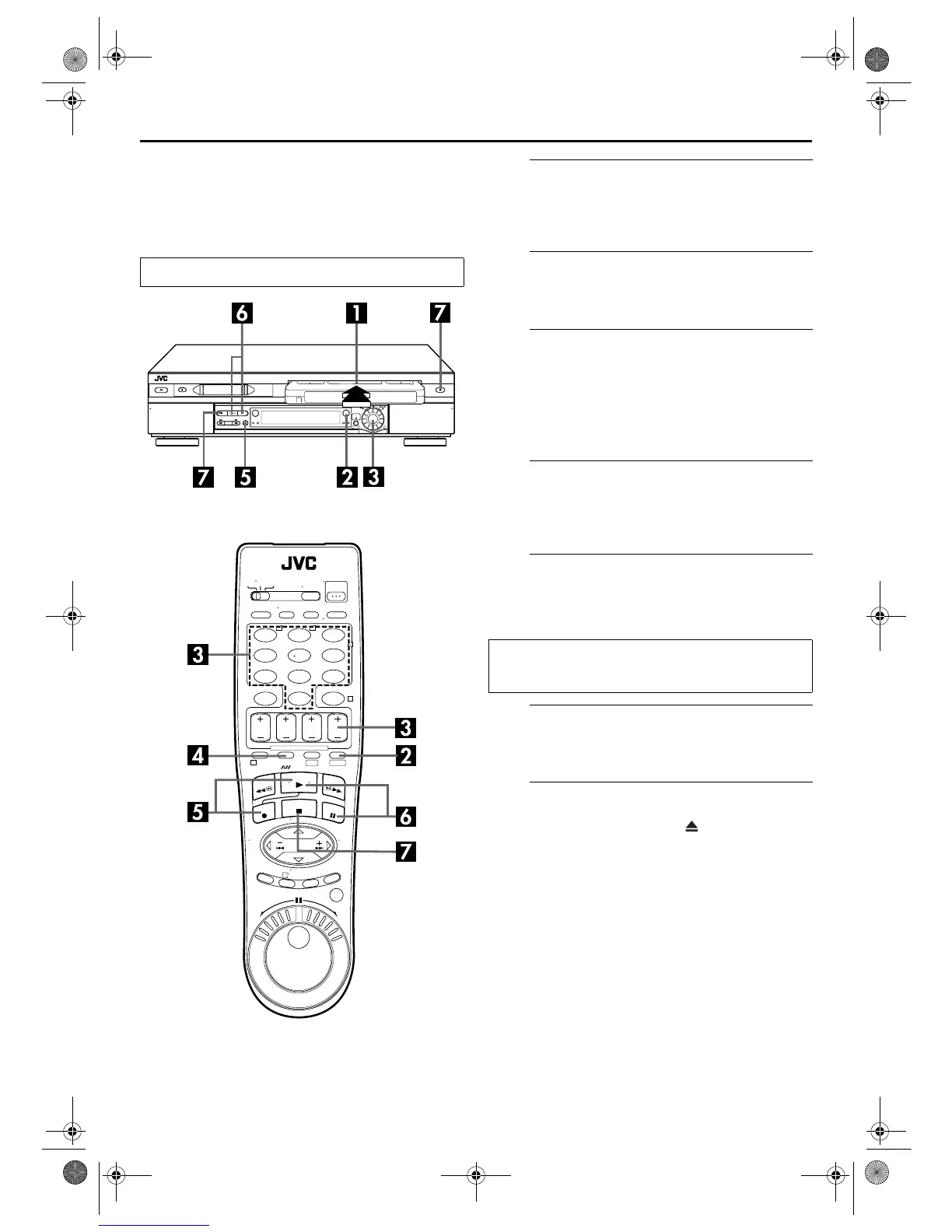

Basic Recording
(VHS deck)
A
Load a cassette.
Insert a VHS (or S-VHS) cassette with the record safety
tab intact.
●
The VCR’s power comes on automatically.
B
Select the VHS deck.
Press S-VHS.
●
The S-VHS button lights on the VCR.
C
Choose a program.
On the Remote
Press CH +/– or the number keys.
On the VCR
Push the ADVANCED JOG dial and turn it to the left or
right to select the channel you wish to record.
D
Set the tape speed.
Press SP/EP (
p
). Check the SP/EP indicator on the
VCR’s front display panel to confirm the selected tape
speed.
E
Start recording.
Press and hold REC (
7
) and press PLAY (
4
) on the
Remote, or press REC (
7
) on the VCR.
●
The VHS recording indicator lights on the VCR.
F
Pause/Resume recording.
Press PAUSE (
9
). Press PLAY (
4
) to resume recording.
●
You can select channel during the Record Pause mode.
G
Stop recording.
Press STOP (
8
). Then press EJECT ( ) to remove the
cassette.
●
The VHS recording indicator turns off.
NOTE:
It is not possible to record a TV program on both the VHS deck
and the DV deck simultaneously. However, it is possible to
record simultaneously from the same external input. Set the
input mode to “L-1”, “L-2” or “F-1” depending on the connectors
being used.
Turn on the TV and select the AV mode.
1
32
123
456
7
89
0
2
4
1
3
T W
DV S-VHS
Video Calibration takes place at the beginning of both the
first SP and the first EP recording after inserting the cassette.
(
