1-12 (No.22036)
2.1.11 Removing the power transformer assembly
(See Fig.22, 23)
• Prior to performing the following procedure, remove the metal
cover, the rear cover, the CD-R mechanism assembly and the
rear panel.
• Remove the assembly consisting of the power amplifier board,
the power amplifier sub board and the main board fromthe
chassis incompletely (Refer to Fig.17).
(1) Remove the cord stopper upwards on the back of the body.
(2) Disconnect the power cord from connector J1000 on the
board of the power transformer assembly.
(3) Remove the four screws L attaching the power transform-
er assembly.

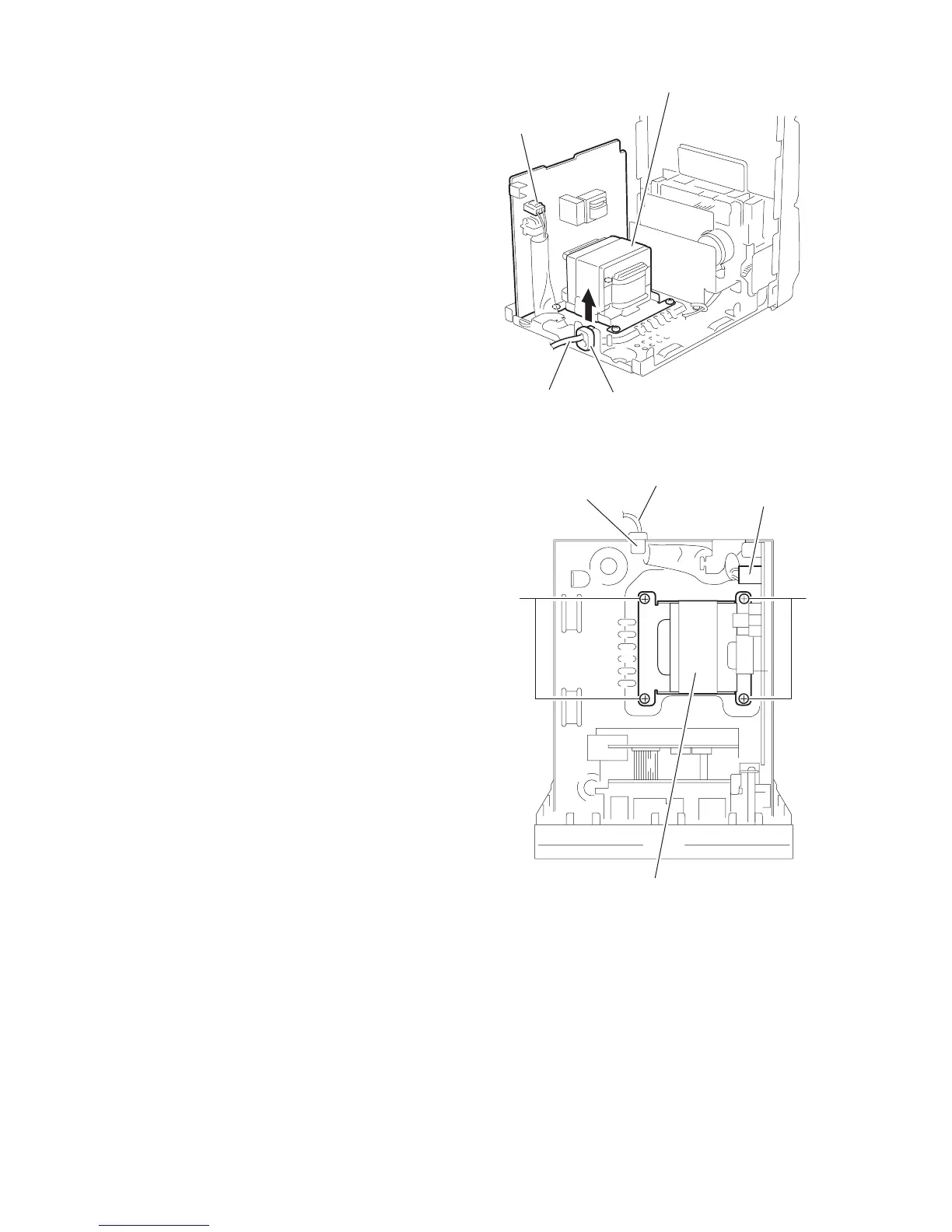

Fig.22
Fig.23
Cord stopper
Power cord
J1000
Power transformer assembly
LL
J1000
Cord stopper
Power cord
Power transformer assembly
To Next Page
