(No.22036)1-7

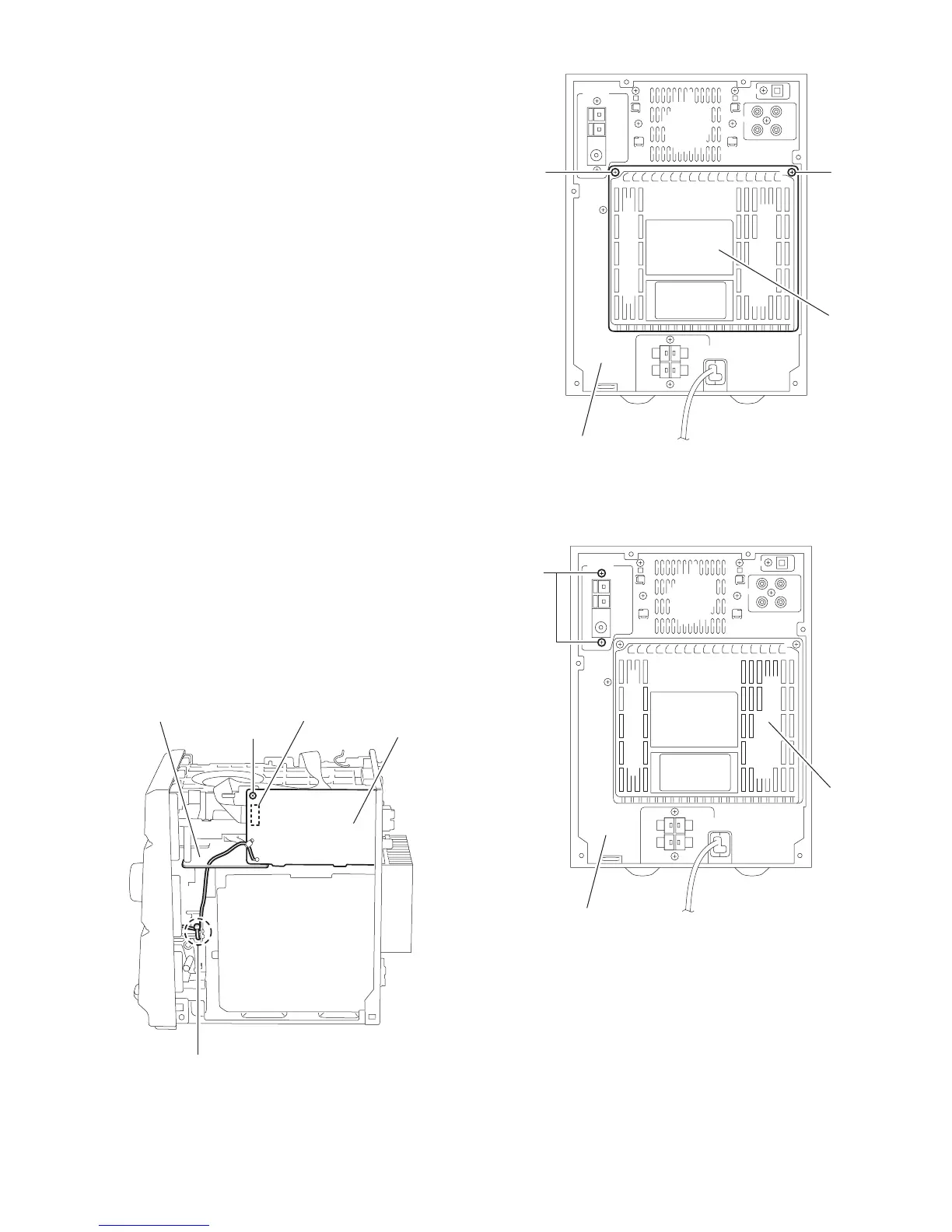

2.1.2 Removing the rear cover
(See Fig.3)
• Prior to performing the following procedure, remove the metal
cover.
(1) Remove the two screws C on the back of the body.
Fig.3
2.1.3 Removing the tuner board
(See Fig.4, 5)
• Prior to performing the following procedure, remove the metal
cover.
(1) Disconnect the card wire from connector CN1 on the tuner
board.
(2) Remove the screw D on the right side of the body.
(3) Remove the two screws E on the rear panel.
(4) Remove the band bundling the wire and pull out the wire
through the hole of the CD-R board.
Fig.4
Fig.5
Rear cove
r
C
C
Rear panel
D
Tuner board
CD-R board
CN 1
Band
Rear cove
r
E
Rear panel
