2.1.12 Removing the front panel assembly
(See Fig.24, 25)
• Prior to performing the following procedure, remove the metal
cover, the rear cover, the CD-R mechanism assembly and the
rear panel.
• Remove the assembly consisting of the power amplifier board,
the power amplifier sub board and the main board (Refer to
Fig.17, 18).
(1) Remove the two screws M on each lower side of the body.
(2) Disengage the two joints f on each lower side of the body
using a screwdriver andpull out the front panel assembly
toward the front.

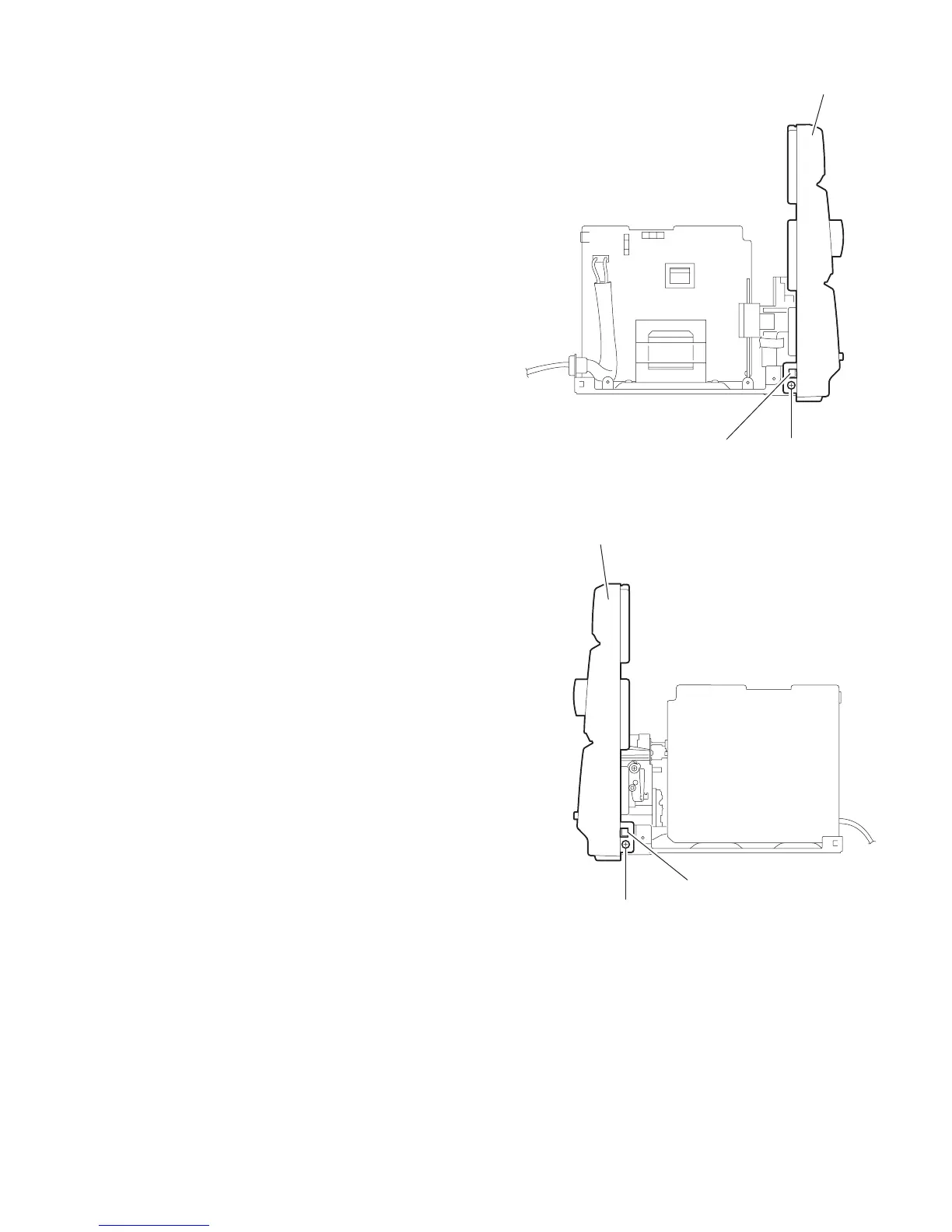

Fig.24
Fig.25
M
Front panel assembly
Joint c
M
Front panel assembly
Joint c
