3.1.5 Removing the motor assembly
(See Fig.7 and 8)
• Prior to performing the following procedure, remove
the clamper assembly, the tray.the traverse mechanism
assembly and the elevator.
(1) Remove the belt from the pulley.
(2) Remove the screw C attaching the motor assembly.
(3) Turn over the body and remove the screw D
attaching the motor assembly.
(4) Release the two tabs g retaining the motor board.

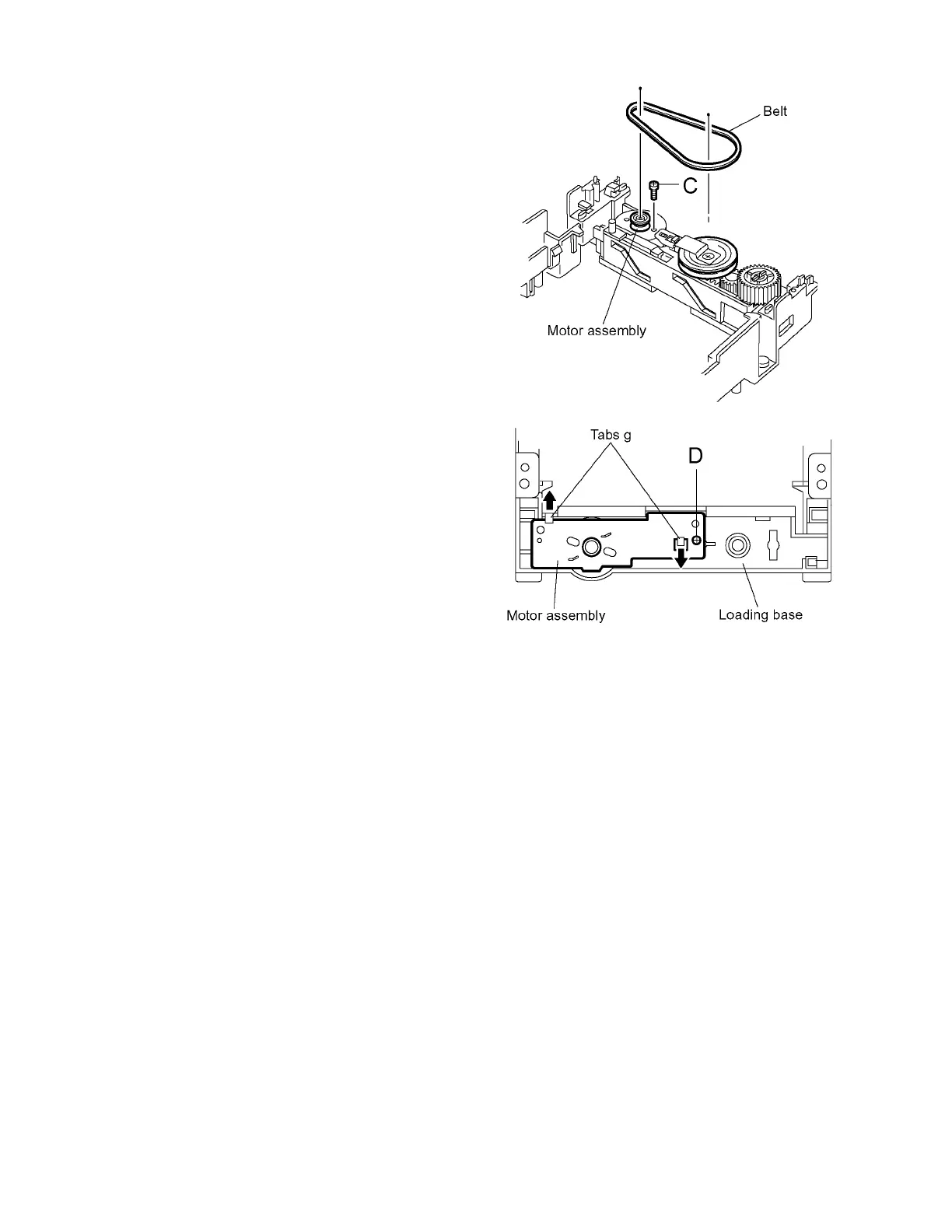

Fig.7
Fig.8
