Document Number 481.093 Rev. A - 06/04
18
Interchangeable Key Core

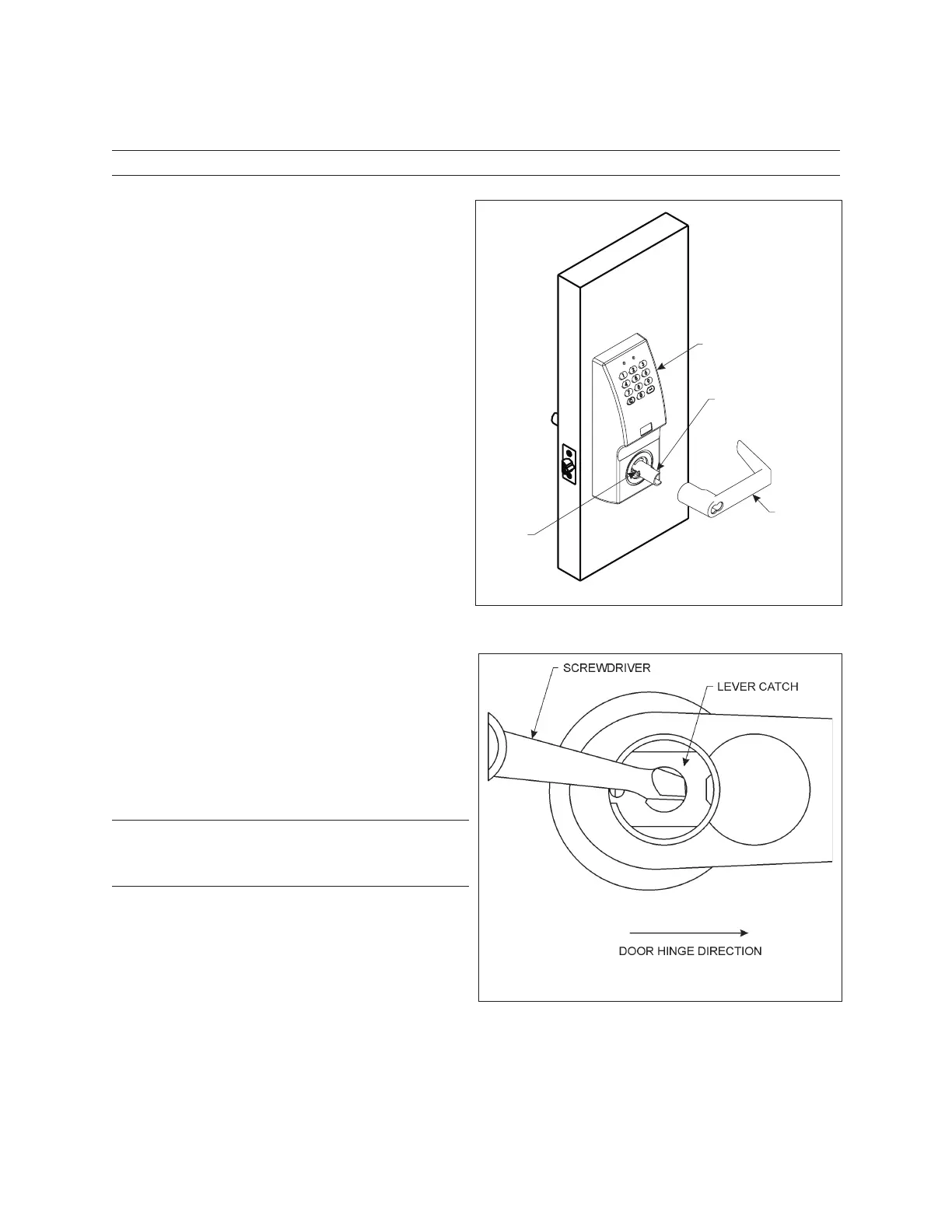

Note: Refer to Figure 21.
1. Push the outside lever onto the lock tube.
Slightly wiggle and push the lever until the
lever engages with the lever catch.
2. If the door thickness is greater than 1 1/2”
(38mm), the lever installation is complete.
If the door thickness is 1 1/2” (38mm) or
less, complete the following step.
3. Refer to Figure 22. With the screwdriver
inside the lever, push the inside of the lever
catch toward the door hinge and push on
the lever so that it moves to the next catch
position. This second catch point ensures
that the end of the lever is less than 1/2”
(13mm) away from the door as required by
many building codes.
Note: The lever catch is a thin plate. Be
careful to engage only the lever catch
and not the parts behind the catch.
Installation
OUTSIDE COVER
OUTSIDE
LOCK TUBE
OUTSIDE
LEVER
LEVER
CATCH
Figure 21 - Model 9000 shown
Figure 22
To Next Page
