5
2-1
2-2
A
B
D
A
B
E
C
1-1
7
"
(18 cm)
4
"
(102 mm)

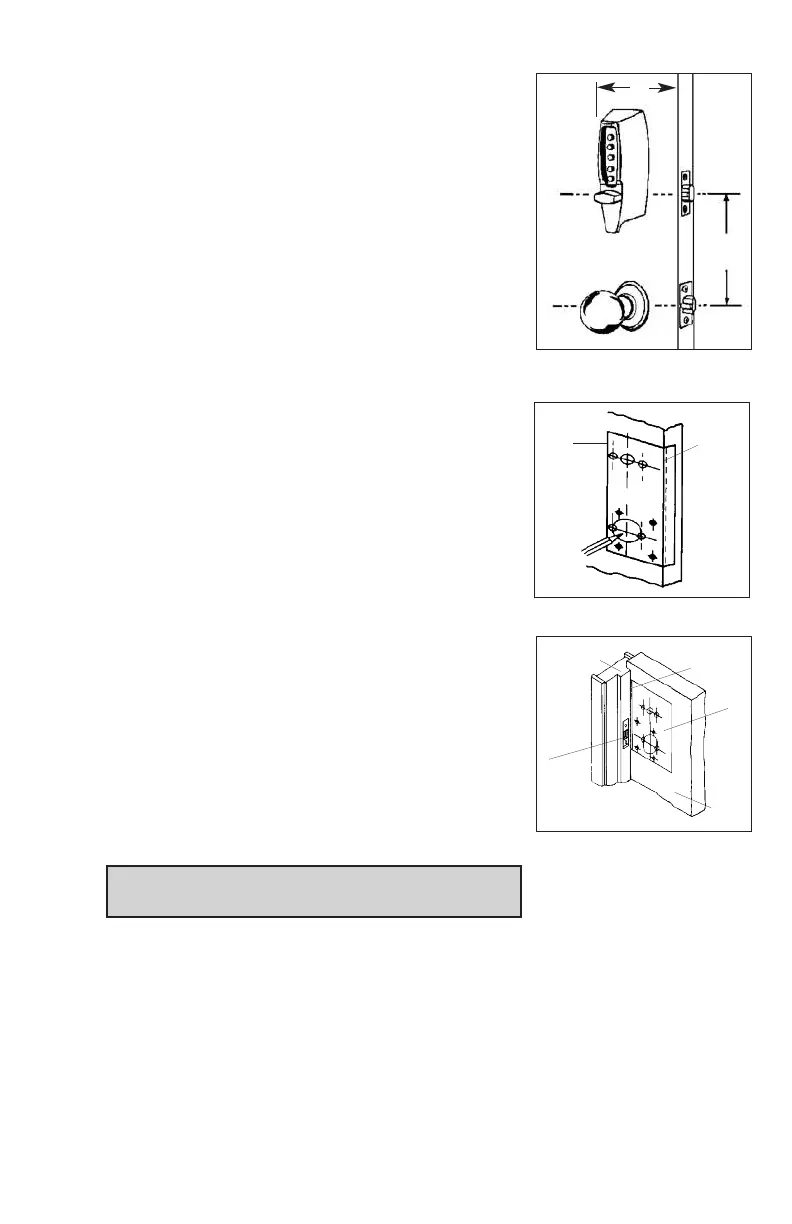

A. DETERMINING THE LOCK
LOCATION
Install the lock with exterior thumbturn hole at
least 7" (18 cm) above your primary lockset so it is
comfortable to operate and not in the way when
you turn the door knob (See Figure 1-1). Minimum
stile width recommended: 4" (102 mm).
B. MARKING THE DOOR
B-1 Doors Opening Inward
a. Fold the template (A) on the solid line (B).
b. Tape the template securely to the inside of
the door so that the fold is properly aligned
with the edge of the door (See Figure 2-1).
c. Use a center punch to mark the ten drilling
points indicated on the template.
d. Remove the template.
B-2 Doors Opening Outward
a. Fold the template (A) on the dashed line (B).
b. Tape the template securely to the inside of
the door (C) so that the dashed line is
aligned with the face of the door jamb (D)
(See Figure 2-2).
c. Use a center punch to mark the ten drilling
points indicated on the template.
d. Remove the template.
Note: You may install the strike (E) at this point.
See Section I - Installing the Strike.
