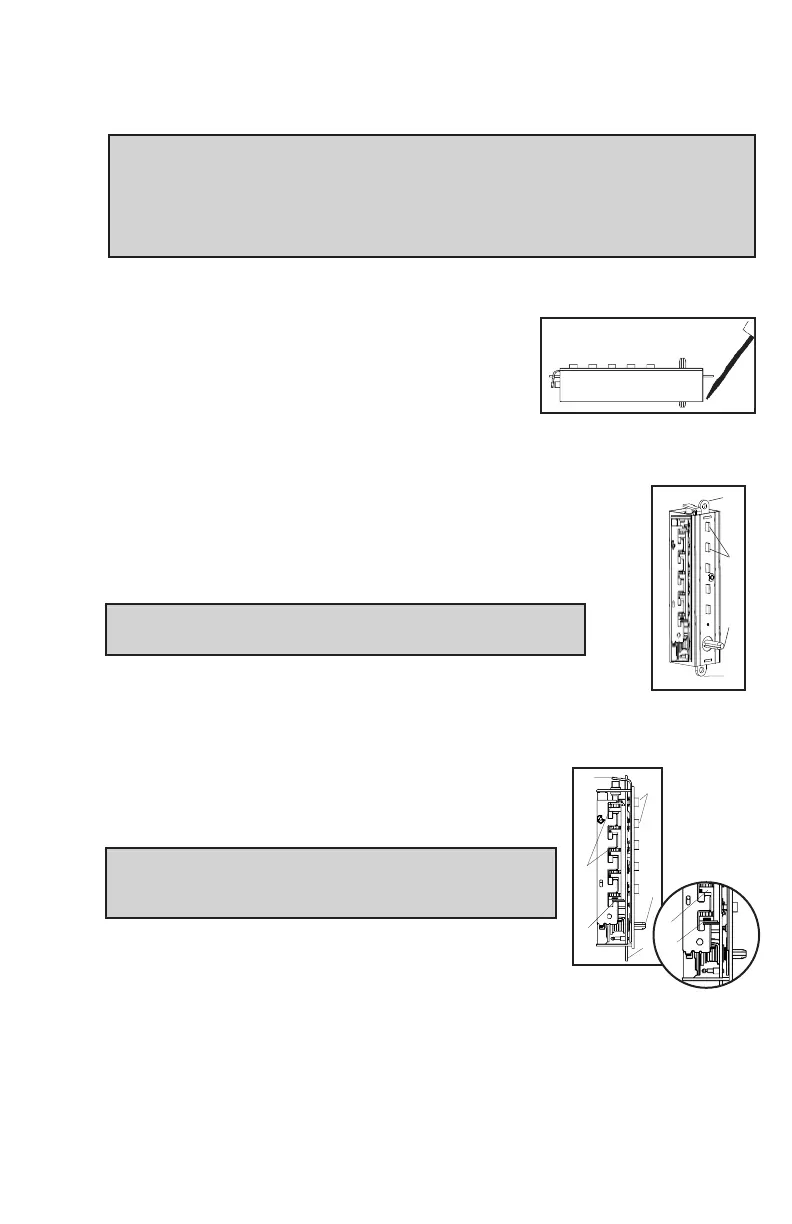

K. INSTRUCTIONS FOR RESETTING AN UNKNOWN
COMBINATION
Remove the lock from the door. Loosen and remove the 4 screws that hold the back-
plate on the lock body. Set aside the back plate assuring the tailpieces do not come
loose/out of the backplate. Remove the drive cam assembly located on the control shaft
on the back of the chamber. Remove the combination chamber from the lock held by 2
screws.
To remove the 3-sided dust cover marked "Kaba Simplex," place the
combination chamber in the position below to the right.
K-1 Place a small screwdriver on the edge of the 3-sided
dust cover and push down on the screwdriver (See
Figure 11-1). The cover should pop loose. Once it does,
pull the cover off of the combination chamber.
K-2 Hold the chamber in one hand by the screw tabs (b)
on each end with the key-stems (c) facing you and the
control shaft (d) at the bottom (See Figure 11-2).
K-3 Using pliers or equivalent, rotate the control shaft (d) counterclock-
wise and release to clear the chamber (See Figure 11-2).
K-4 Look at the 5 code gears (e). If any code gear pockets (f) are already
at the shear line (open position), ignore them. They are not used in
the combination (See Figure 11-3).
NOTE: Shear line (open position) references the “L” shaped feet
already align with the mating gear pocket (f)
K-5 Find the code gear pocket/s (e) that is farthest away from the shear
line (open position). Depress that key-stem/s (c) and release (See
Figure 11-3). If any digits in the combination were depressed together
(at the same time), then they must also be depressed together to reset
the combination.
K-6 Find the code gear pocket/s (e) that is the next farthest
away from the shear line (open position). Depress that
keystems (c) and release (See Figure 11-3).
NOTE: If any of the code gear pockets travel past the shear
line (open position), the key stems have been depressed in
the wrong sequence. Start over at K-3.
K-7 Repeat step K-6 until all code gear pockets (e) are at the
shear line (open position).
K-8 If all the code gear pockets (e) are not lined up at the
shear line (open position), start over at step K-3.
K-9 Depress the lockout slide (g) at the top of the chamber and release. (looks like one
end of a spark plug) (See Figure 11-3).
K-10 Using pliers or equivalent, rotate the control shaft (d) counterclockwise to clear the
chamber and release. The lockout slide (g) should pop out (button underneath will
stay depressed) (See Figure 11-3).
(3 sided dust cover)
11-1
b
d
c(5)
f
g
c(5)
e(5)
d
11-2
11-3
f
e
b
b
