7

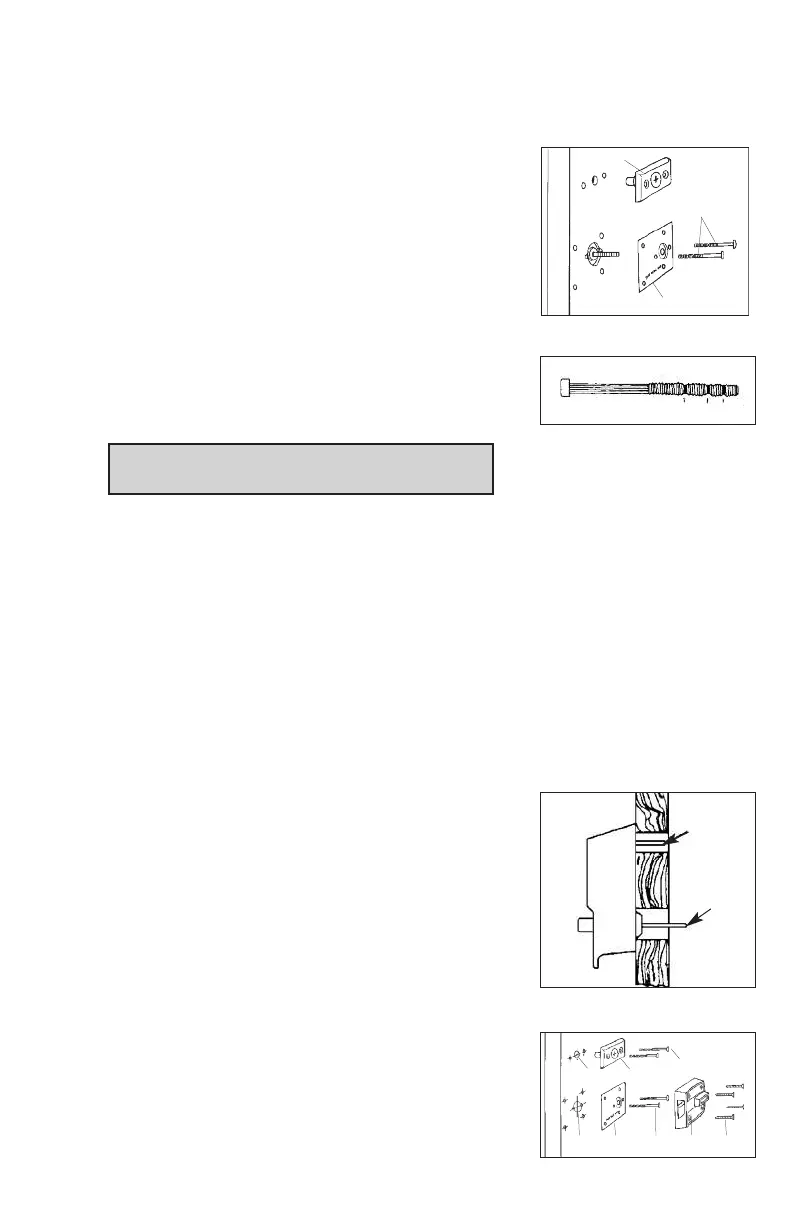

D-2 While holding the lockset firmly against the outside of the door, (See
Figure 4-1) mark tailpiece Y at the point where it extends
1
⁄2" -
5
⁄8" beyond
the interior surface of the door.
a) After determining the break line, hold the
tailpiece firmly with a pair of pliers on the
lock side of the tailpiece, just beside the
desired break line.
b) With a second pair of pliers, grip the tail-
piece at the other side of the line and bend it
up and down until it breaks (See Figure 4-2).
D-3 Shorten each of the two reinforcing plate thru-
bolts (A) (See Figure 4-3) by gripping
at the threaded end with pliers and sawing
through at the correct length (See Figure
4-4) with a fine-tooth hacksaw.
Note: Be careful not to damage the threads
when shortening the thru-bolts.
• For 1
3
⁄8” (35 mm) thickness doors, shorten thru-bolt at A.
• For 1
3
⁄4” (45 mm) thickness doors, shorten thru-bolt at B.
• For 2” (51 mm) thickness doors, shorten thru-bolt at C.
• For 2
1
⁄4” (57 mm) thickness doors, leave thru-bolt as is.
D-4 To secure the (B) combination change assembly (See “G” Figure 5-2),
utilize two 2" (51 mm) bolts (H) for door thickness 1
3
⁄8" (35 mm) to 1
1
⁄2"
(38 mm). For door thickness 1
1
⁄2" (38 mm) - 2" (51 mm) utilize two 2
3
⁄8"
(60 mm) bolts (H). For door thickness 2" (51 mm) - 2
1
⁄4" (57 mm), utilize
two 3" (76 mm) thru-bolts (H).
E. INSTALLING THE LOCK
The model 7106 lock is packaged for an inward
opening door. For an outward opening door, the
latch must be reversed (See Section F).
Figures 5-1 (outside of door) and 5-2 (inside of
door) show how the lock is installed and identify
each component by letter. Refer to these figures
as you follow the steps below.
E-1 Insert tailpiece (Y) into the 1
3
⁄8" (35 mm)
cutout (A) and the combination change tail-
piece (X) into the
3
⁄4" (19 mm) hole (B)
(See Figure 5-1 and 5-2).
B
C
4-3
A
5-1
4-4
A
B
C
X
Y
5-2
A
C
D
E F
B
G
H
To Next Page
