9

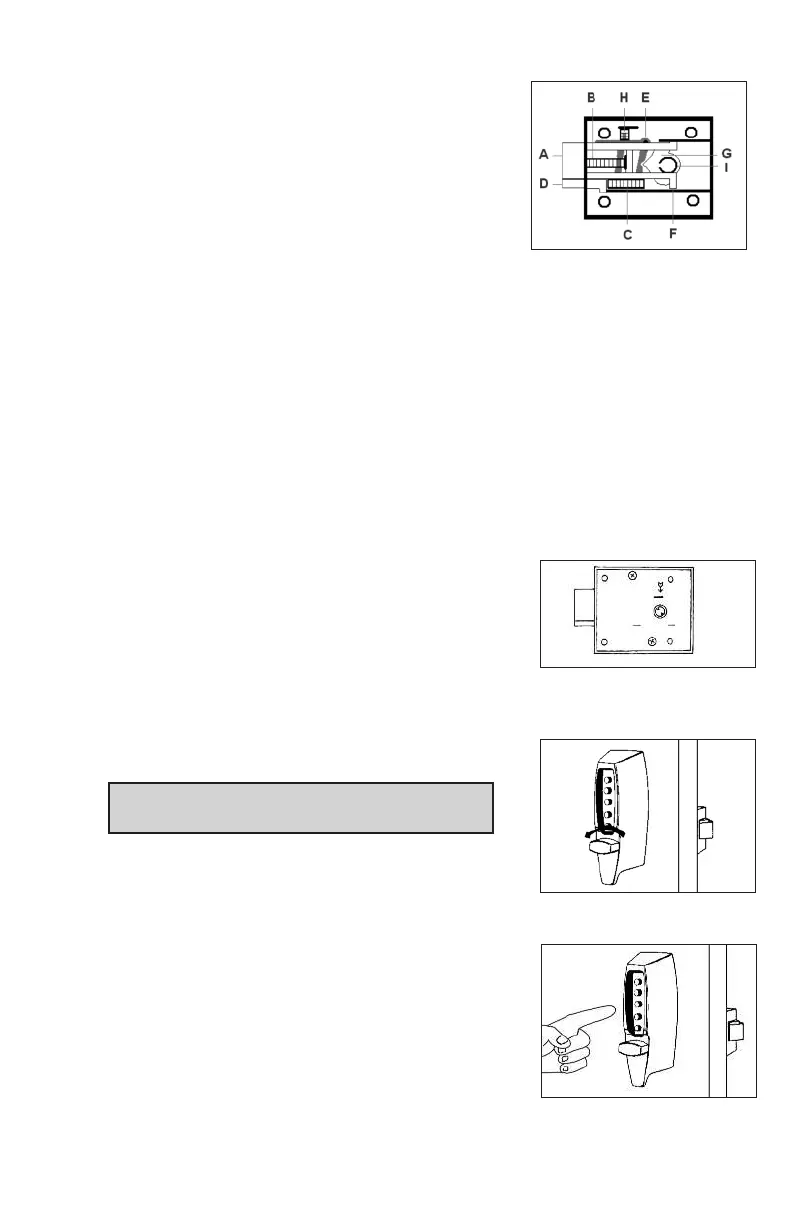

F-5 While holding the auxiliary latch as instructed
in step 4, place the latch in the case with the
bevel in the same direction as the auxiliary
latch. Make sure the latch legs (F) are caught
on the ears of the turn knob lever (G) (See
Figure 6-2).
F-6 Push the latch and auxiliary latch forward
to the stop position so that they are fully
extended (See Figure 6-2). Insert the latch
spring (H) (large opening of spring) towards back of latch and the (small
opening of spring) against the spring seat. Insert one end of the auxiliary
latch spring into the back of the auxiliary latch and place the other end of
the spring against the spring seat.
F-7 When the springs are installed, the auxiliary latch lever (shaded area in
Figure 6-2) should be in the position shown in Figure 6-2.
F-8 If the cam (I) falls out, replace it in the thumbturn hole with the circular
opening facing up. Place the backplate onto the case with the letters fac-
ing up towards you, and fasten with two screws removed in step 1 (See
Figure 6-3). Check the lock for freedom of movement by depressing the
latch and auxiliary latch into the lock case,
then make sure that the latch and auxiliary
latch return back to their original fully extend-
ed position (See Figure 6-3).
To Install the Lock, See Section E
G. CHECKING THE LOCK’S
OPERATION
Important: The following steps must be
performed while the door is open.
G-1 Turn the outside thumbturn to the left
(counterclockwise) until it stops, then
release it (See Figure 7-1).
G-2 Press the preset factory combination (2 and 4
pressed together, release, then 3, and release)
(See Figure 7-2). A distinctive click must be
felt to indicate that the buttons have been cor-
rectly depressed.
6-2
7-1
7-2
6-3
To Next Page
