H. VERIFYING THE COMBINATION CHANGE
ASSEMBLY

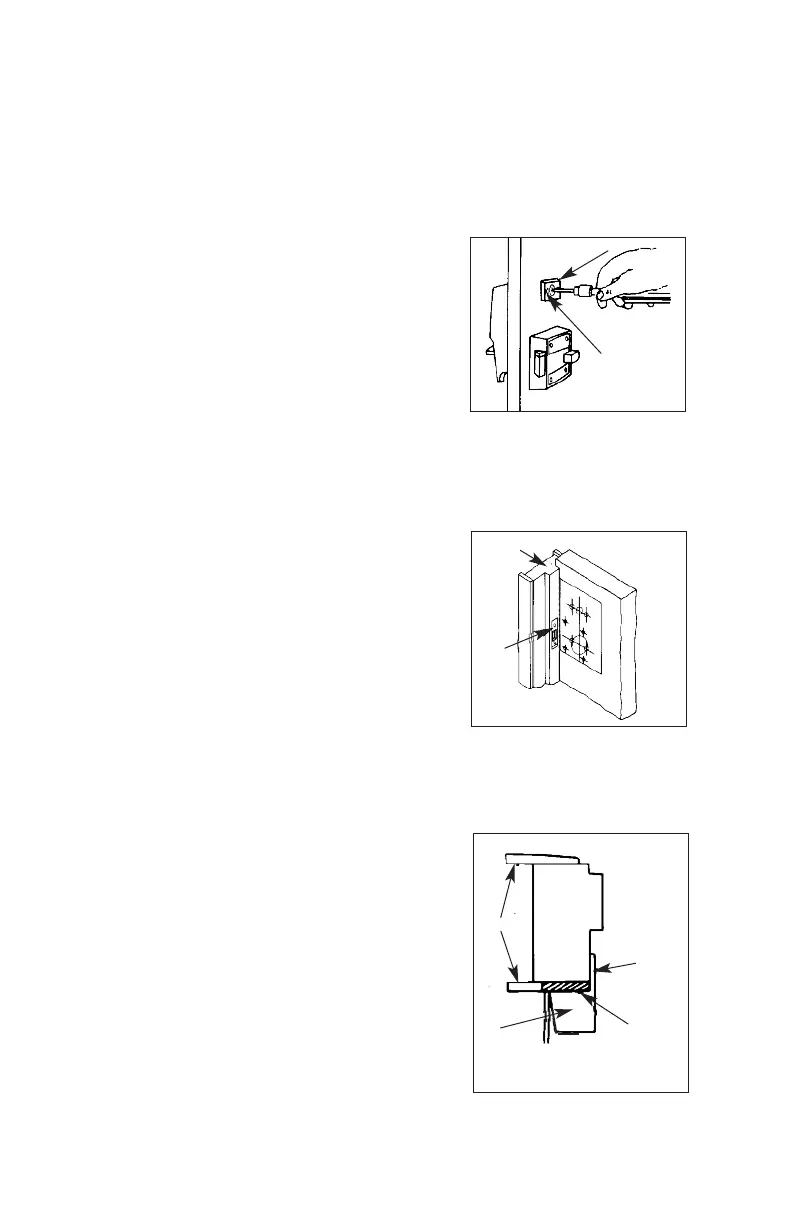

H-1 Insert the tip of a Phillips-head screwdriver into the central piece of the
combination change assembly (See Figure 8-1).
H-2 Lightly rotate the screwdriver to the right (clockwise) until it stops.
DO NOT FORCE.
H-3 Remove the screwdriver; the central piece
should automatically return to its initial position.
H-4 If the central piece jams and does not return
to its initial position, loosen the two thru-
bolts (H) (See Figure 8-1) and push the
combination change assembly (A) upward.
Tighten the thru-bolts, and repeat Steps H-1
to H-3.
I. INSTALLING THE STRIKE
I-1 Outward opening door - mount flat strike
a. Place the strike (A) on the door jamb (B) in line
with the center line of latch (See Figure 9-1).
b. Trace the outline of the strike on the jamb.
Remove the strike.
c. Chisel out the jamb so that the strike will be
flush with the surface of the jamb.
d. Place the strike back into the cutout and trace
the latch hole on the jamb.
e. Chisel this out to clear the
5
⁄8" (16 mm) long extended latch.
The latch must enter the strike freely.
I-2 Inward opening door - mount box strike
a. Place the strike on the door trim in line with
the center line of latch.
b. Trace the outline of the strike onto the door
trim (See Figure 9-2). Add
5
⁄32" (4 mm) to the
edge of the tracing opposite the lock to allow
for recessing of the strike tongue.
c. Chisel out the traced (shaded area), down to
the door frame (See Figure 9-2).
8-1
H
9-1
A
9-2
Box
strike
tongue
Door
frame
Door trim
Chisel
out to
frame
Box
strike
5
⁄32" (4 mm)
A
B
Outside
Inside
