4 Design and Function
4.1 Housing

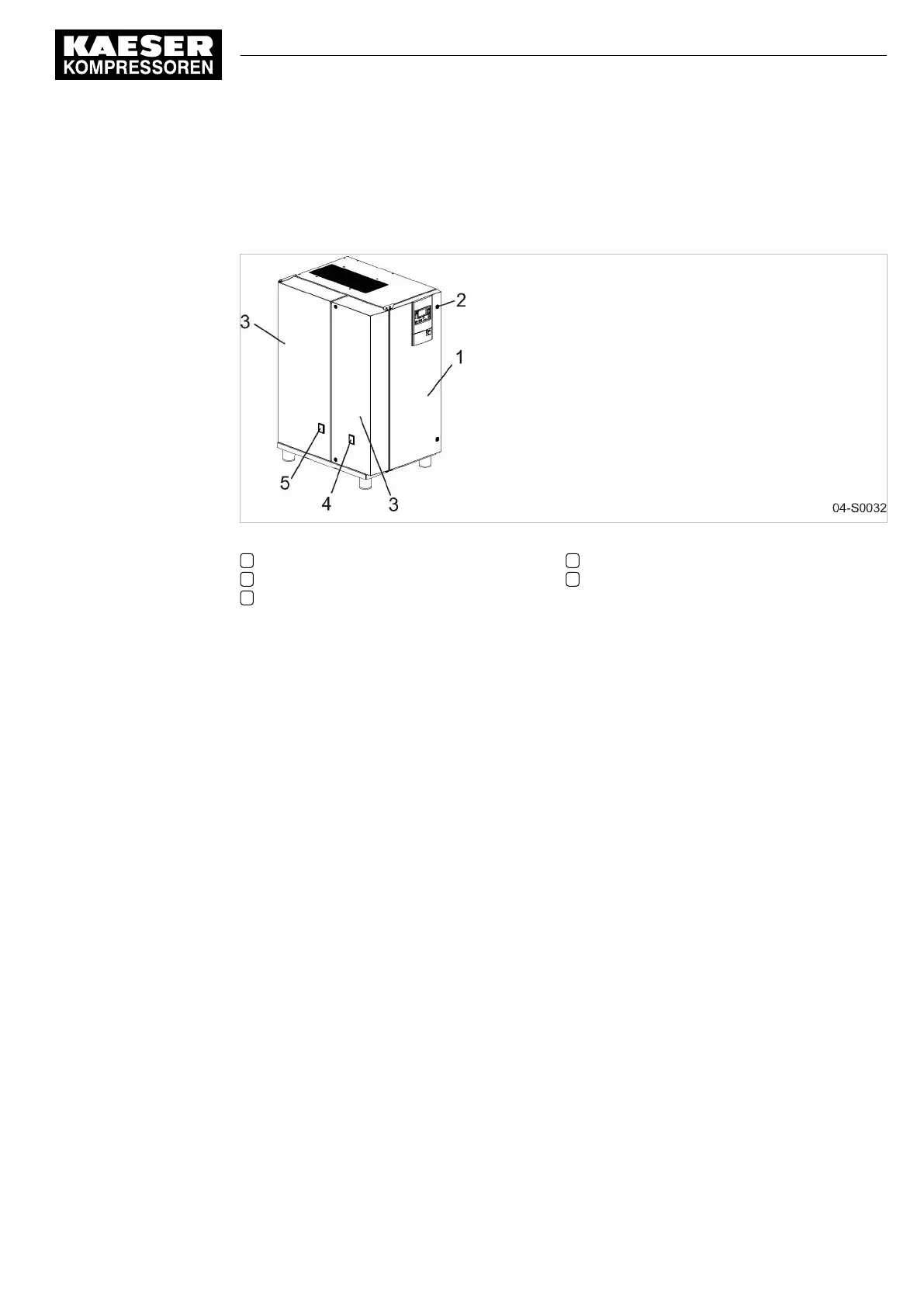

Fig. 3 Housing overview
1 Control cabinet door
2 Latch
3 Access door
4 Sight glass: Cooling oil level indicator
5 Sight glass: V-belt tension
When closed, the enclosure serves various functions:
■ Sound insulation
■ Protection against contact with components
■ Cooling air flow
The enclosure is not suitable for the following uses:
■ Walking on, standing on or sitting on the machine.
■ Loads of any kind should not be placed or stored on the machine.
Safe and reliable operation is only assured with the enclosure closed.
Access doors are hinged to swing open and removable panels can be lifted off.
The latches should be opened using the supplied key.
4 Design and Function
4.1 Housing
901824 12 E
Operating Manual Screw Compressor
ASK
29
