Kampmann Venkon - Page 28

Venkon
Assembly, installation and operating instructions
28

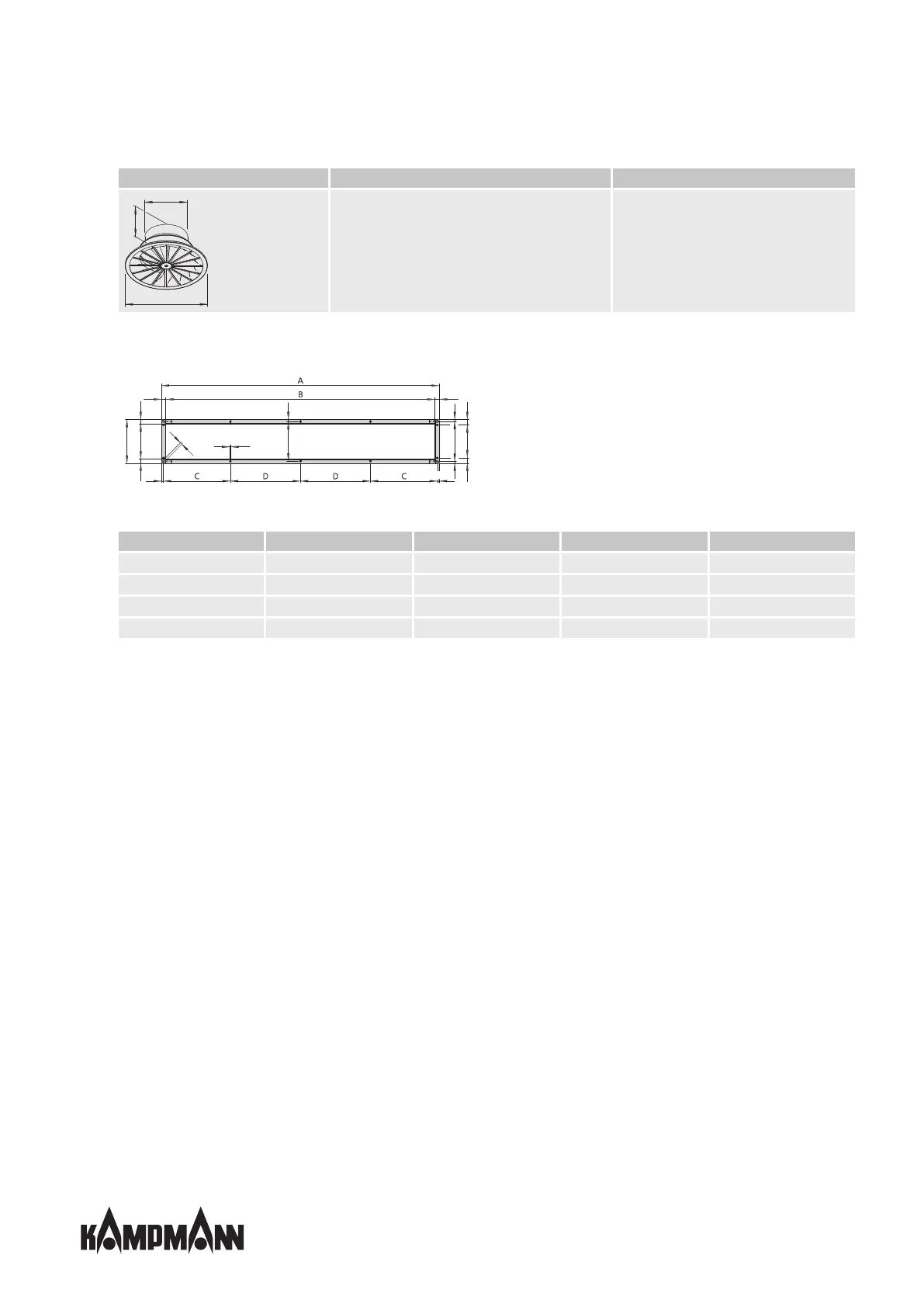

Figure Description Dimensions [mm]
6.2
7.1
11
Ceiling swirl diffuser DN180, including clamping flange
for installation in suspended ceilings, white painted, for
connection to flexible pipe Ø 158 mm
Outlet Ø 180 mm/ 7.1 inch
Flexible pipe Ø 158 mm/ 6.2 inch
Tab.6: Air-side sheet steel accessories
Frame connection dimensions
0.8
0.80.8
0.8
0.4
0.4
0.4
0.4
7.9
6.3
0.3
0.2
0.47.1
1
1
7.2
5.9
Fig.13: Frame connection dimensions
Model A W C D
61
570 mm/ 22.4 inch 530 mm/ 20.9 inch 276 mm/ 10.9 inch -
63
870 mm/ 34.3 inch 830 mm/ 32.7 inch 426 mm/ 16.8 inch -
66
1320 mm/ 52 inch 1280 mm/ 50.4 inch 651 mm/ 25.6 inch -
67
1670 mm/ 65.7 inch 1630 mm/ 64.2 inch 406 mm/ 16 inch 420 mm/ 16.5 inch
