USE THE FOLLOWING INSTRUCTION TO REMOVE DRAIN PLUGS TO ALLOW
MOISTURE TO EXIT OR INSTALL DRAIN PLUGS WHERE FLUIDS CAN ENTER
THROUGH THE DRAIN HOLES. SHIELD DRAIN HOLES IF IT IS DIRECTED
WHERE FLUIDS CAN BE FORCED IN.

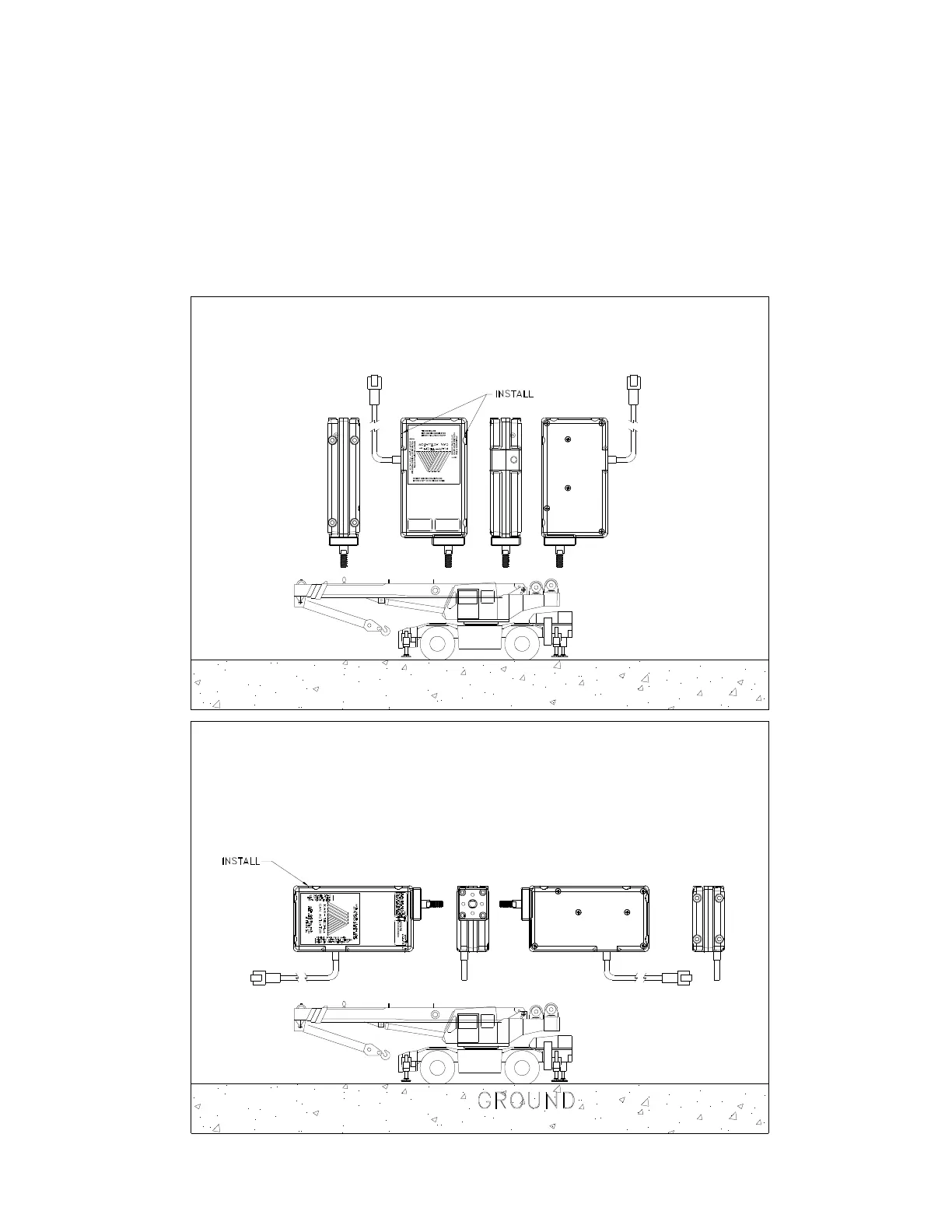

WHEN MOUNTING WITH SHAFT HORIZONTAL
AND CABLE DOWN, INSTALL ONE DRAIN PLUG
AS SHOWN
GROUND
CAUTION!
DO NOT ROTATE OUTPUT ROD, AS
INTERNAL DAMAGE TO ACTUATOR
MAY OCCUR. USE FLATS PROVIDED FOR
WRENCH ON END OF OUTPUT ROD TO
PREVENT ROD FROM ROTATING
KAR-TECH INC.
www.kar-tech.com
1A0014B
XXXXXXXXXX
WHEN MOUNTING WITH SHAFT DOWN,
INSTALL BOTH DRAIN PLUGS
