Appendix A

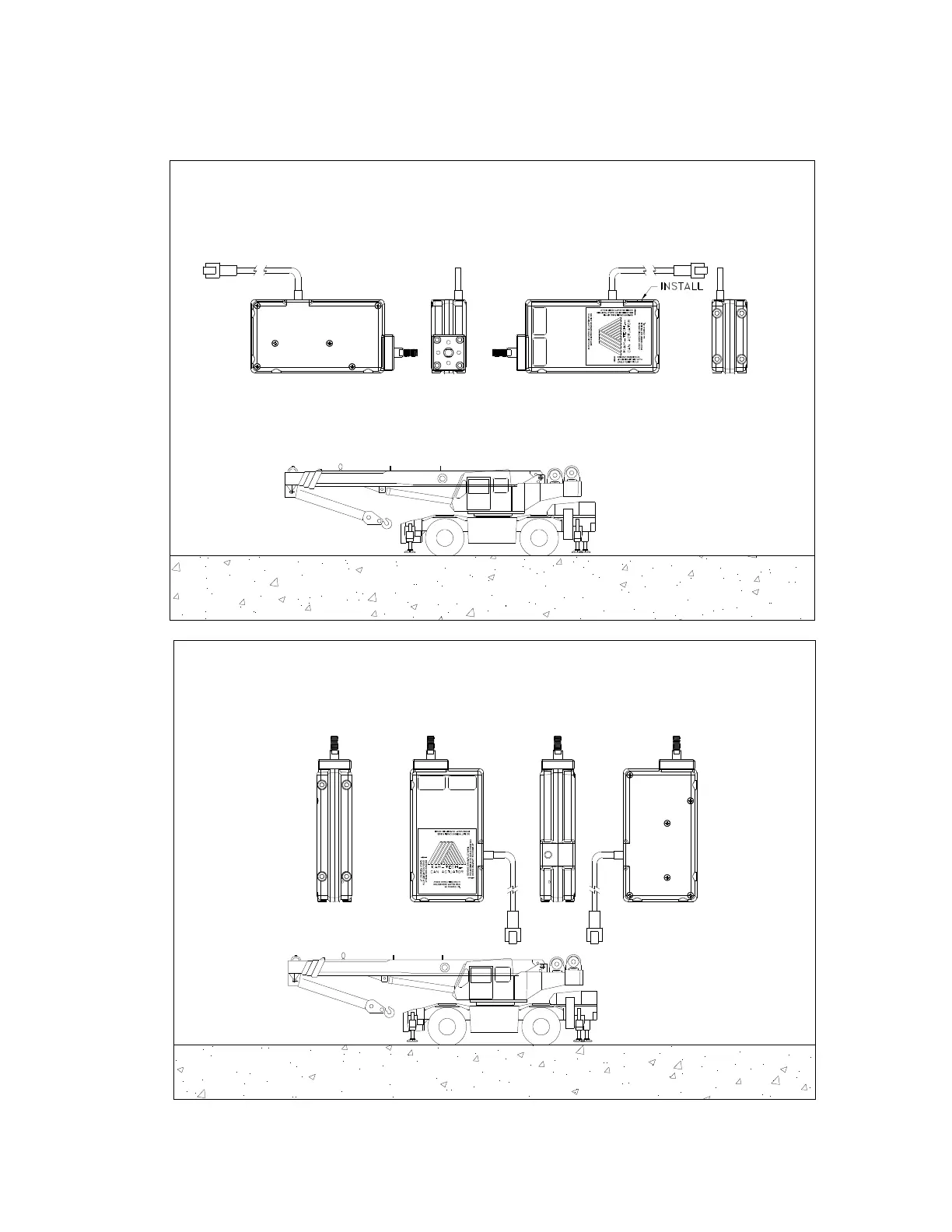

CAUTION!
DO NOT ROTATE OUTPUT ROD, AS INTERNAL DAMAGE TO ACTUATOR MAY OCCUR. USE FLATS PROVIDED FOR WRENCH ON END OF OUTPUT ROD TO PREVENT ROD FROM ROTATING
KAR-TECH INC. www.kar-tech.com
1A0014B
XXXXXXXXXX
GROUND
WHEN MOUNTING WITH SHAFT HORIZONTAL
AND CABLE UP, INSTALL ONE DRAIN PLUG AS
SHOWN
GROUND
CAUTION!
DO NOT ROTATE OUTPUT ROD, AS
INTERNAL DAMAGE TO ACTUATOR
MAY OCCUR. USE FLATS PROVIDED FOR
WRENCH ON END OF OUTPUT ROD TO
PREVENT ROD FROM ROTATING
KAR-TECH INC.
www.kar-tech.com
1A0014B
XXXXXXXXXX
WHEN MOUNTING WITH SHAFT UP, REMOVE
DRAIN PLUG WHICH IS NOT IN DIRECTION OF
WATER GETTING FORCED IN.
