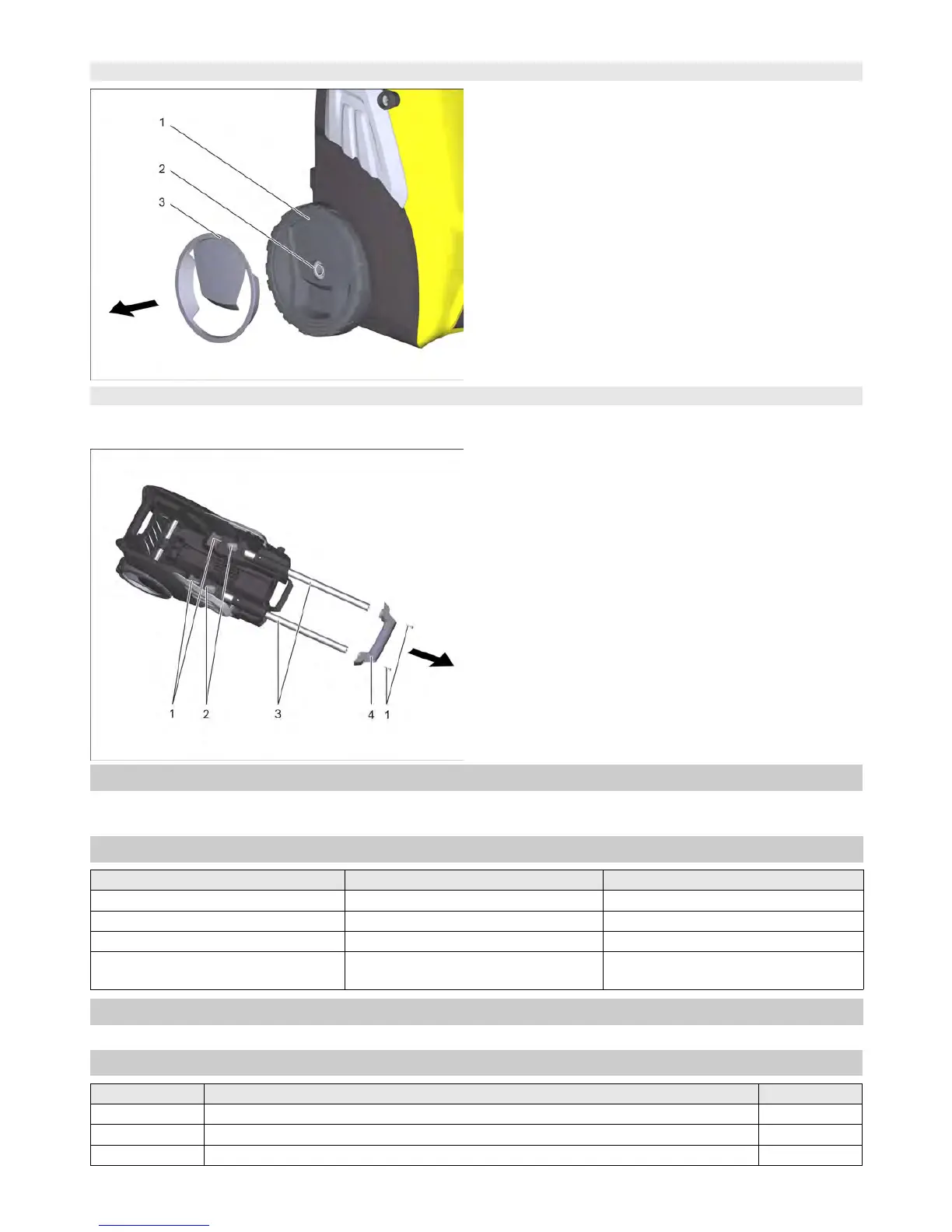

Kärcher K 7 Compact - ABRD Uninstall; install wheels; ABSB Uninstall; install push handle

12 English 5.906-591.0 Rev. 00 (01/14)
1 Wheel
2 Safety ring
3 Wheel cap
 Remove the wheel cover.
 Remove the retaining ring.
 Remove wheel.
Installation information
Use new retaining ring.
ABGH Uninstall / install appliance hood
1 Screws
2 End pieces
3Pipes
4 Handle
 Remove pump motor.
 Unscrew the screws.
 Pull off end pieces.
 Remove pipes.
 Remove the handle.
Note
Pay attention to the correct fitting position during reinstal-
lation.
Service group does not contain any maintenance and in-
spection points.
The service group does not contain any peculiarities.
ABRD Uninstall / install wheels
ABSB Uninstall / install push handle
050 Maintenance and inspection
060 Error diagnosis
Findings Possible cause Correction
Damage, cracks External mechanical impact Replace casing
Cracked screw bosses Incorrect lifting Replace casing
Casing distorted Thermal impact Replace casing
Push handle distorted External mechanical impact
Incorrect lifting
Replace the push handle
070 Peculiarities/ others
110 Replacement times
Basic work Description Work value
ABGH Uninstall / install appliance hood
ABRD Uninstall / install wheels
ABSB Uninstall / install push handle
