22 English 5.906-591.0 Rev. 00 (01/14)

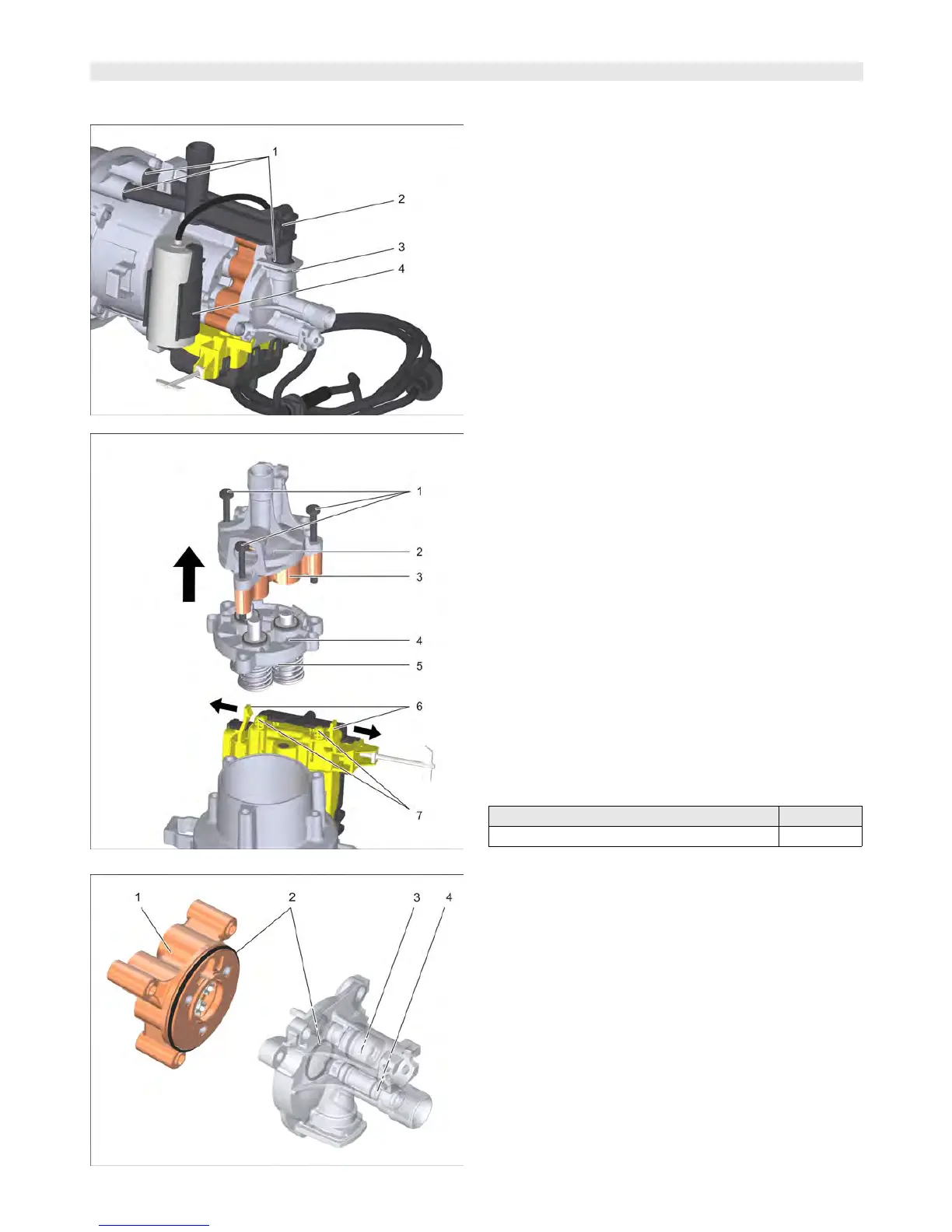

ADVR Uninstall / install valve for detergent
1O rings
2 Water pipes
3 Safety clip
4 Holder capacitor
Remove the pump motor from the chassis.
Unhook the holder of the capacitor.
Pull out the safety clip.
Pull out the water pipes.
1 Screws
2 Valve gear casing
3 Cylinder head
4 Piston guide
5O ring
6 Retaining clip
7Pin
Unscrew the screws.
Carefully pull the holding clamps outwards.
Remove valve gear casing with cylinder head.
Remove the piston guide and the piston.
Note
Check O-rings for damage.
Clean the intake and sealing areas.
Pay attention to the correct fitting position during reinstal-
lation.
1 Cylinder head
2O rings
3 Control valve
4 Injector nozzle
Disconnect the cylinder head from the valve gear cas-
ing.
Note
Check O-rings for damage.
Clean the intake and sealing areas.
Check control valve and injector nozzle for ease of move-
ment, clean if necessary.
Pay attention to the correct fitting position during reinstal-
lation.
AEZK Uninstall / install cylinder head
Torques Nm
Screws 7,5...9,5
