26 English 5.906-591.0 Rev. 00 (01/14)
ABGH Uninstall / install appliance hood

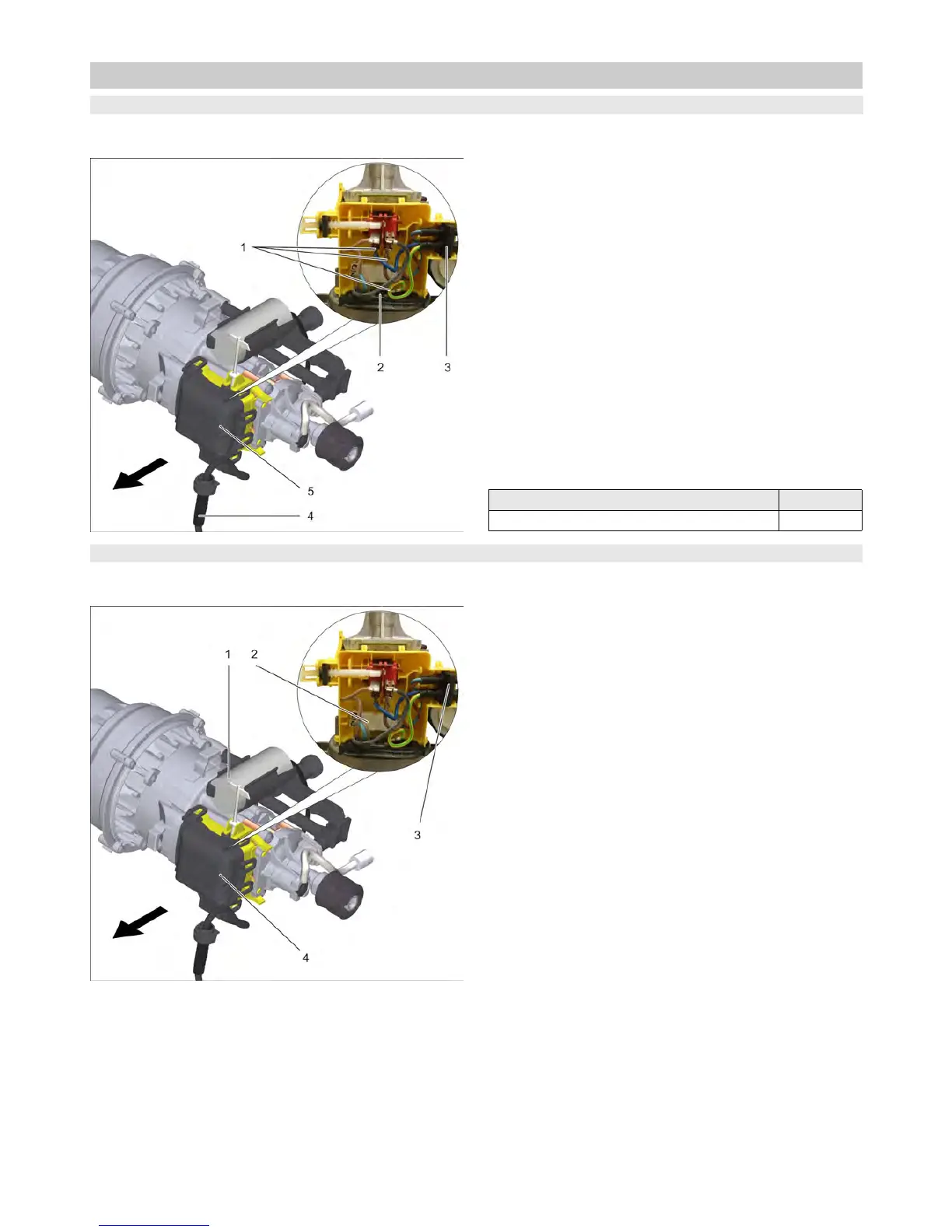

1 Plug connections
2Screw
3Seal
4 Mains cable
5 Covering lid
Unclip casing cover.
Disconnect the connectors.
Loosen the screw.
Remove mains cable.
Note
Lay lines free of kinks.
Pay attention to the correct fitting position during reinstal-
lation.
ABGH Uninstall / install appliance hood
Unclip casing cover.
Disconnect the connectors.
Pull the line out of the seal.
Remove capacitor.
Note
Pay attention to the correct fitting position during reinstal-
lation.
040 Service activities
AHNK Uninstalling / installing mains cable
Torques Nm
Screw 3,5...4,5
AHKS Uninstalling / installing capacitor
1 Capacitor C1
2 Plug connections
3Seal
4 Covering lid
