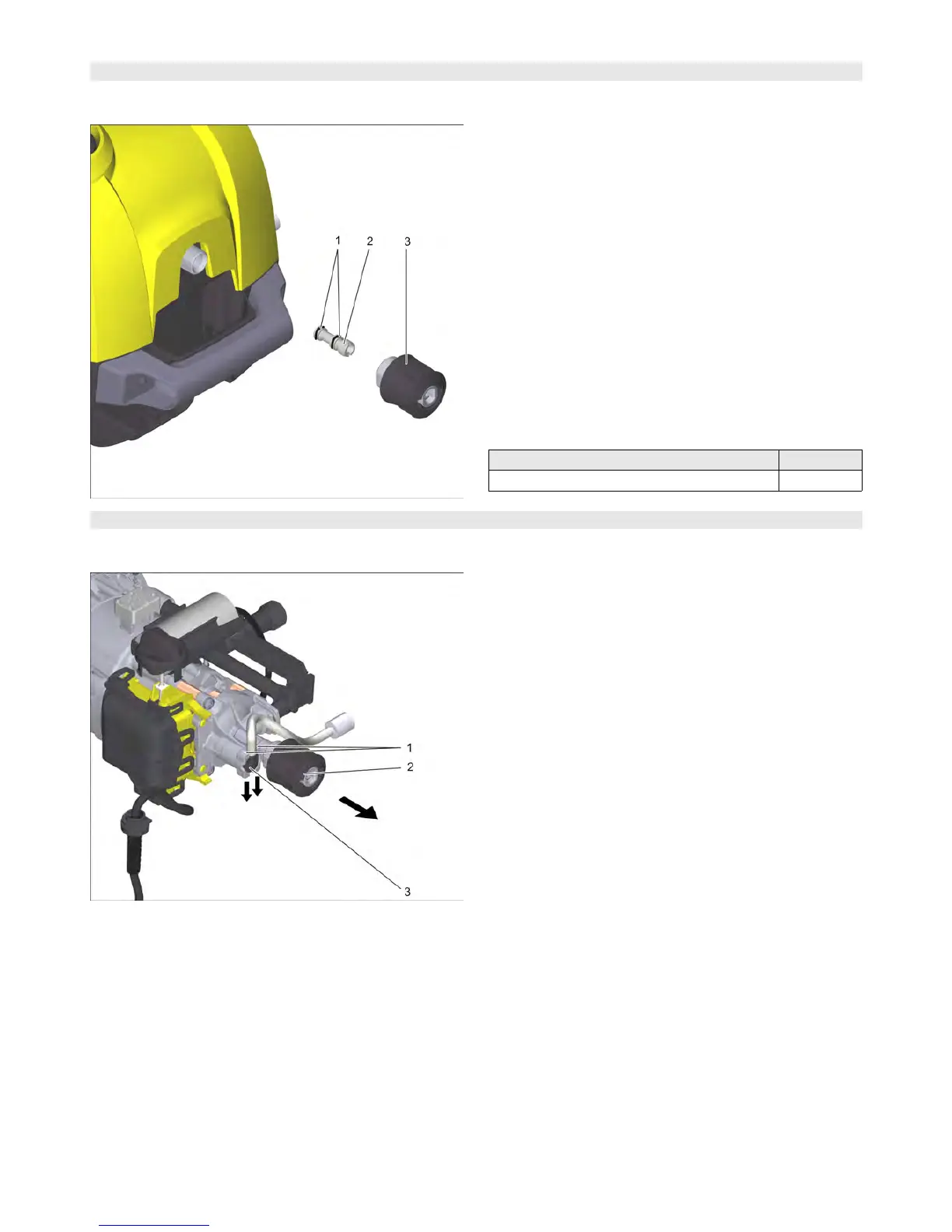

English 5.906-591.0 Rev. 00 (01/14) 15
AESH Uninstall / install quick coupling of the high-pres-
sure hose
1O rings
2 Injector nozzle
3 Quick coupling
Unscrew the injector nozzle.
Note
Check O-rings for damage.
Pay attention to the correct fitting position during reinstal-
lation.
ABGH Uninstall / install appliance hood
1Pins
2 Quick coupling high-pressure hose
3 Valve detergent
Remove quick coupling of the high-pressure hose.
Remove the pump motor from the chassis.
Drive out pins.
Pull out the detergent valve.
Note
Pay attention to the correct fitting position during reinstal-
lation.
Check O-ring for damage.
ADID Uninstall / install injector nozzle
Torques Nm
Injector nozzle 0,8...1,2
ADVR Uninstall / install valve for detergent
