18 English 5.906-591.0 Rev. 00 (01/14)

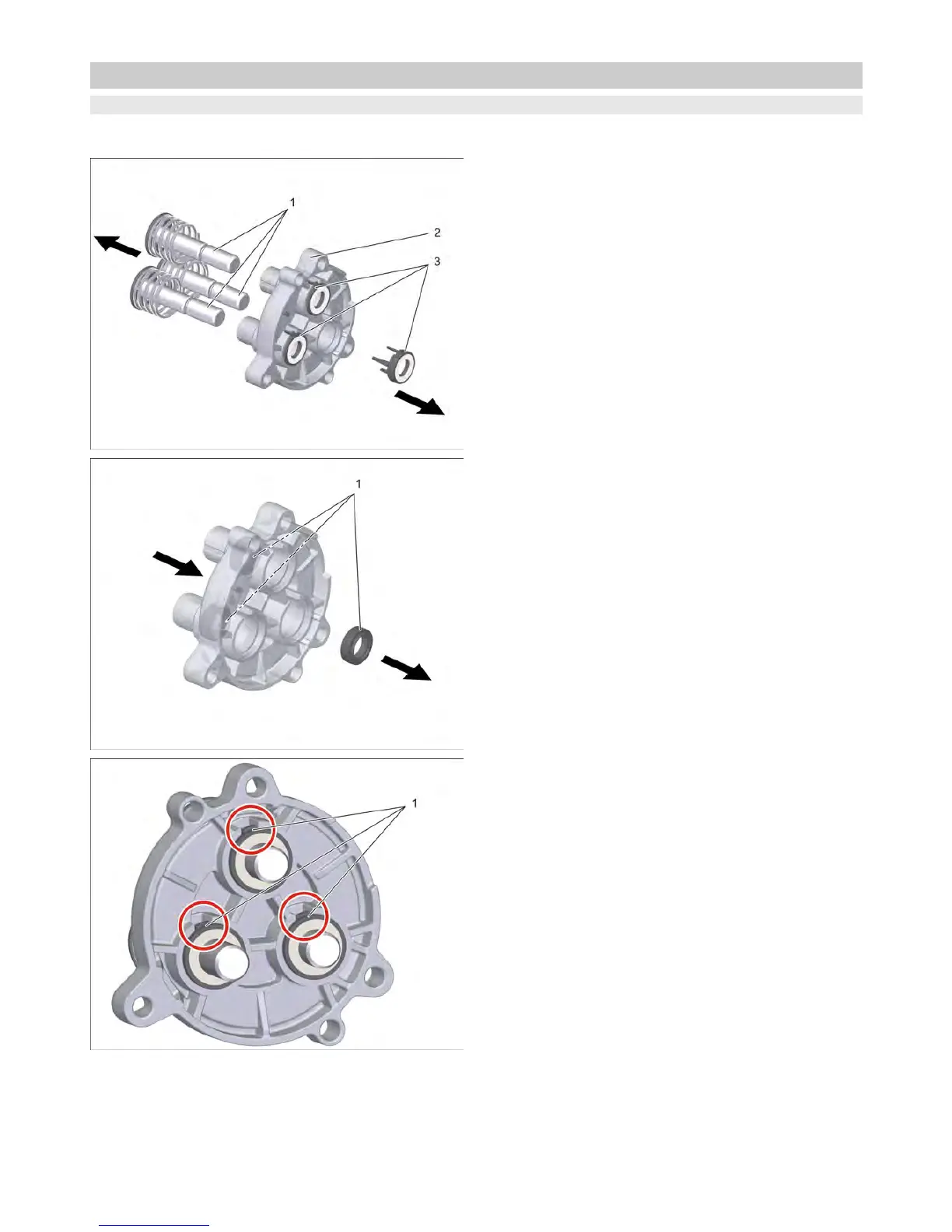

AEZK Uninstall / install cylinder head
1 Plunger
2 Piston guide
3 Support disc
Pull out support washers.
Pull out piston.
Check piston for wear.
1 Oil seal piston guide
Carefully push out the oil seals using a screwdriver.
Clean drilled holes from oil and grease.
Insert new oils seals using the installation mandrel.
Installation information
1Pin
Pay attention to the correct fitting position during reinstal-
lation.
040 Service activities
AEOK Uninstall / install oil seal piston guide
