English 5.906-591.0 Rev. 00 (01/14) 7

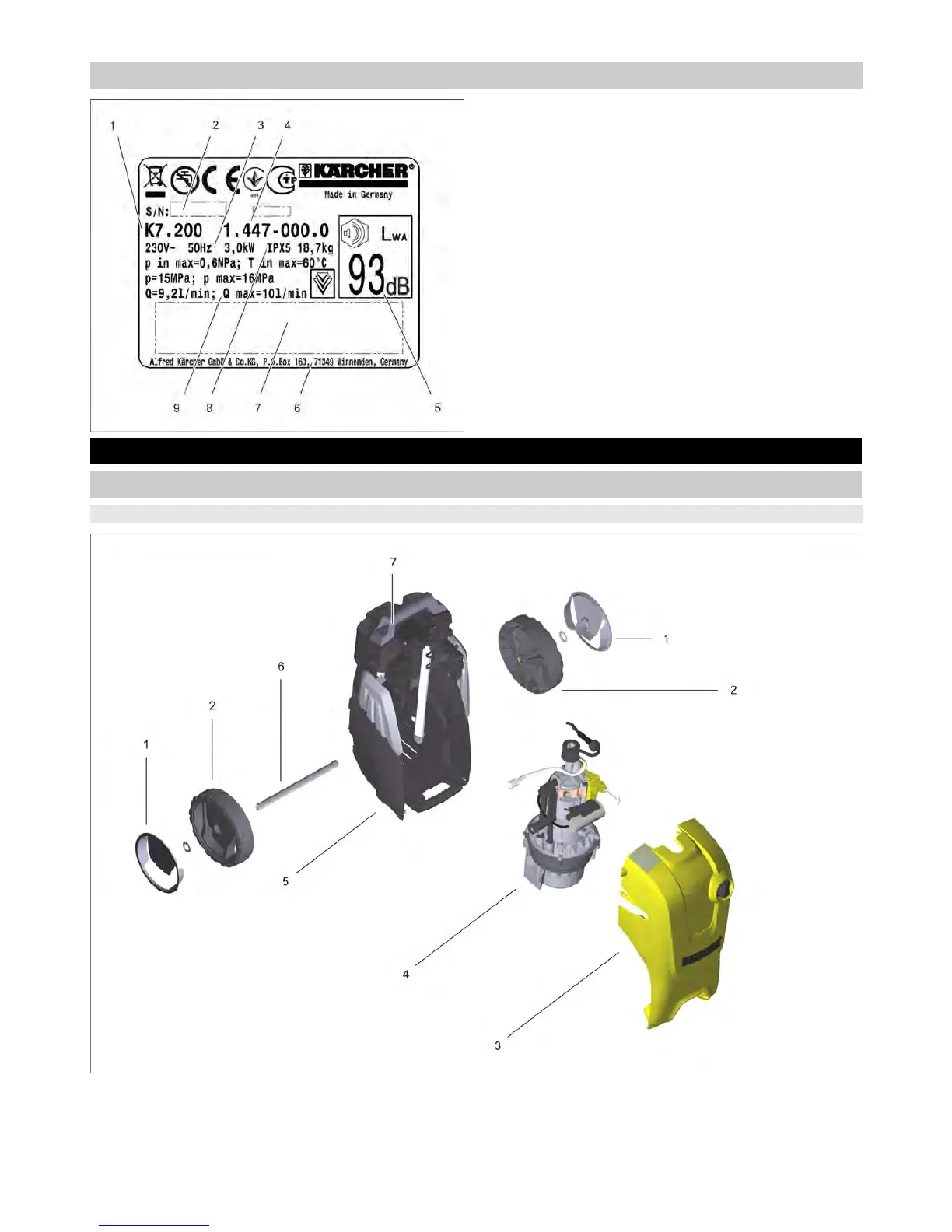

The type plate is located at the bottom of the appliance.
1 Appliance description
2 Serial number
3 Specifications
4 Part number
5 Sound pressure level L
WA
6 Address of manufacturer
7 Bar code. Contains part and serial number.
8 IP rating/ protection class
9 Max. flow rate
Type plate
Overview of the appliance
Overview appliance components
Casing
1 Wheel cap
2 Wheel
3Cover
4Pump motor
5 Chassis
6 Axle
7 Push handle
