AETS Uninstall / install swash plate
Unclip casing cover.
Loosen the screw.
Unhook lever of appliance switch.
Remove appliance switch.
Remove the seal.
Disconnect the connectors.
Remove bottom casing part.
Note
Observe the plug arrangement during installation.
Ensure correct seating of the rubber seal of the casing dur-
ing installation.
Pay attention to the correct fitting position during reinstal-
lation.

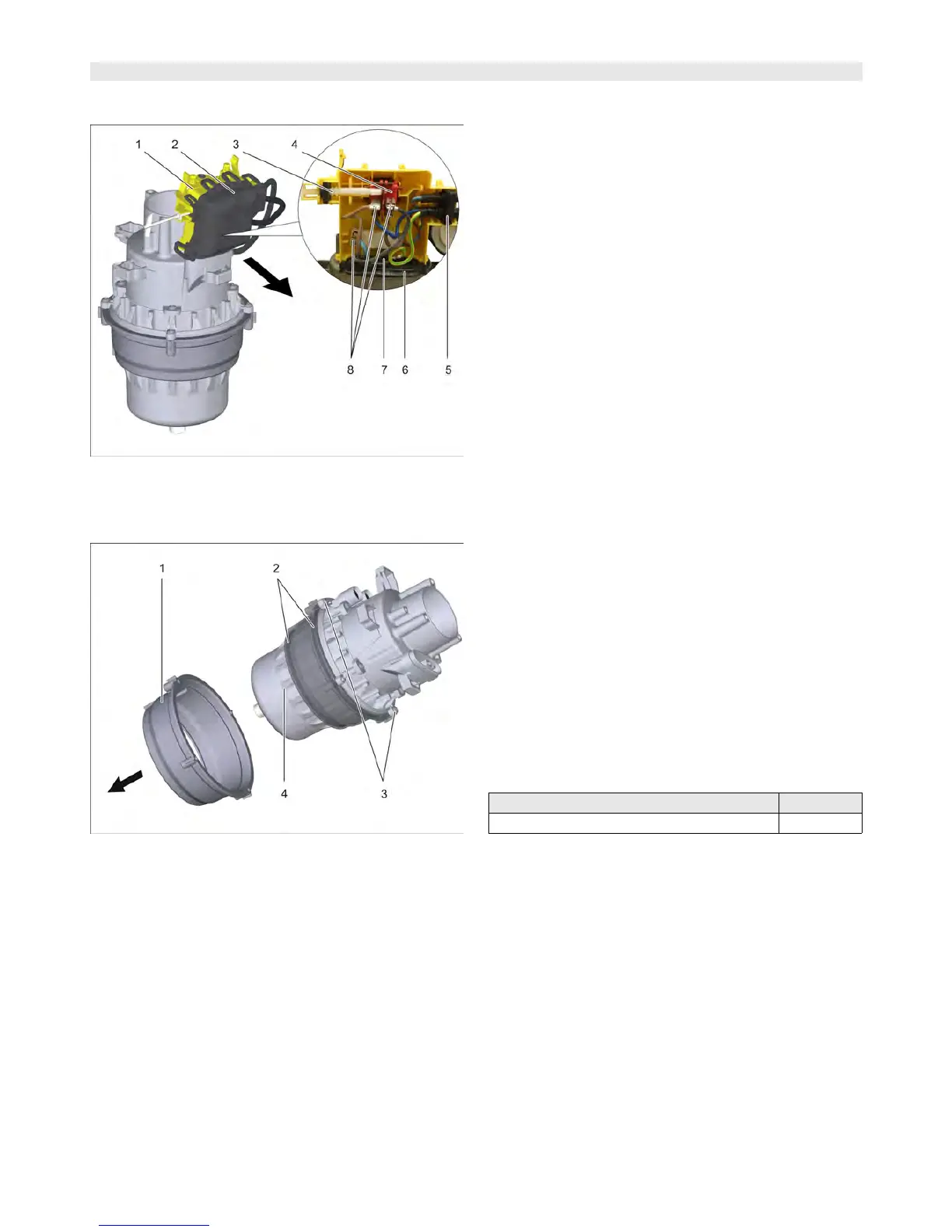

1 Outer jacket water channel
2 Screws
3O rings
4Pump motor
Unscrew the screws.
Remove the outer jacket of the water channel.
Replace pump motor.
Note
Clean the intake and sealing areas.
Check O-rings for damage.
AEPM Uninstall / install pump motor
1 Casing bottom
2 Covering lid
3 Lever appliance switch
4 Power switch S1
5Seal
6 Rubber seal casing
7Screw
8 Plug connections
Torques Nm
Screws 5,5...7,5
To Next Page
