Karel MS48 Installation & Maintenance Guide
Edition 3.2
39

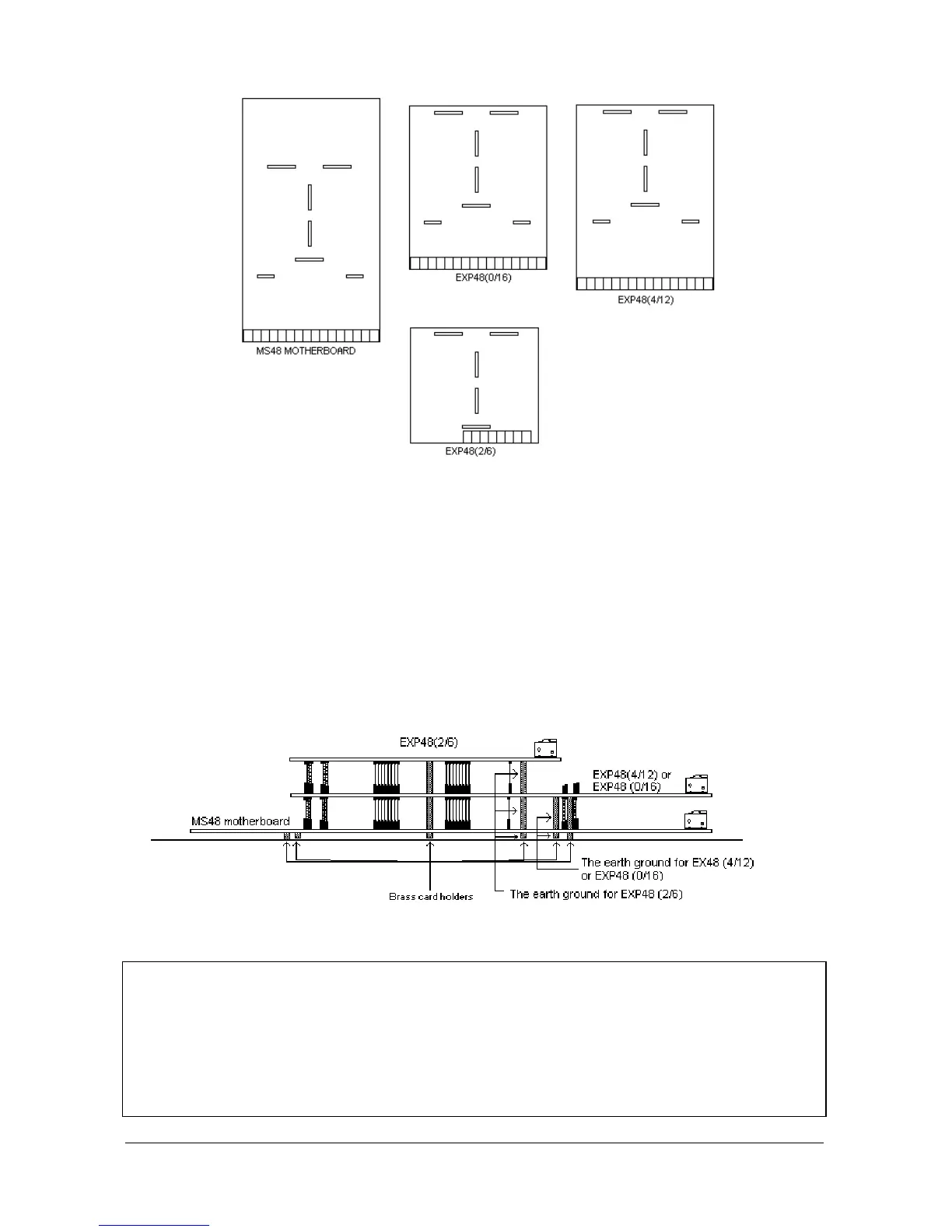

Figure B-5
For the installation of each EXP48 card, the male connectors on the card itself must
be attached to the female correspondents on the card underneath, which may be
either the MB48 motherboard or another EXP48 card.
After that, it is necessary to fix the EXP48 cards by way of brass card holders and
screws. One of the brass card holders together with its screw – the one
corresponding to the M4 hole of the motherboard – is used to carry the chassis
ground to the EXP48 card.
The following figure is to demonstrate the installation of EXP48 cards briefly.
Figure B-6
IMPORTANT
Make sure that :
1) All the pins of male connectors on the EXP48 cards are matched to the
corresponding pins of the female correspondents on the card underneath
properly.
2) All the brass card holders of each EXP48 card, especially the ones that
carry the chassis ground, are fixed properly.
