Karel MS48 Installation & Maintenance Guide
Edition 3.2
40
As the last step in the installation of EXP48 modules, the MFR48 MF-Receiver Card
that comes with EXP48 (4/12) or EXP48 (0/16) must be installed on the MB48
motherboard.
For this, the two male connectors on the solder side of MFR48 card must be
attached to the female correspondents on the up left corner of the MS48
motherboard. After that, it is necessary to fix the MFR48 card to the MB48
motherboard using one brass card holder with its screw and washer.

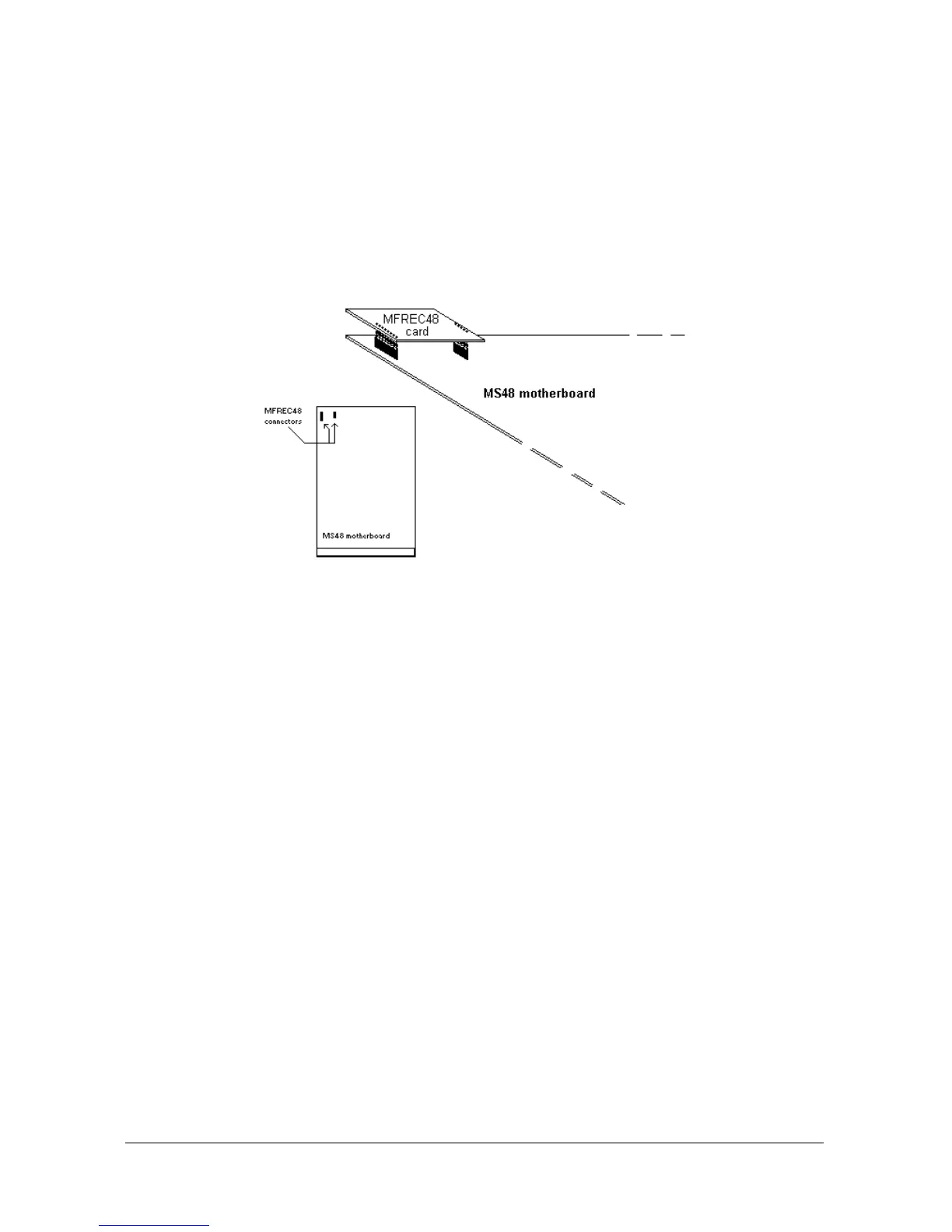

The following figure illustrates the installation of MFR48 card.
Figure B-7
