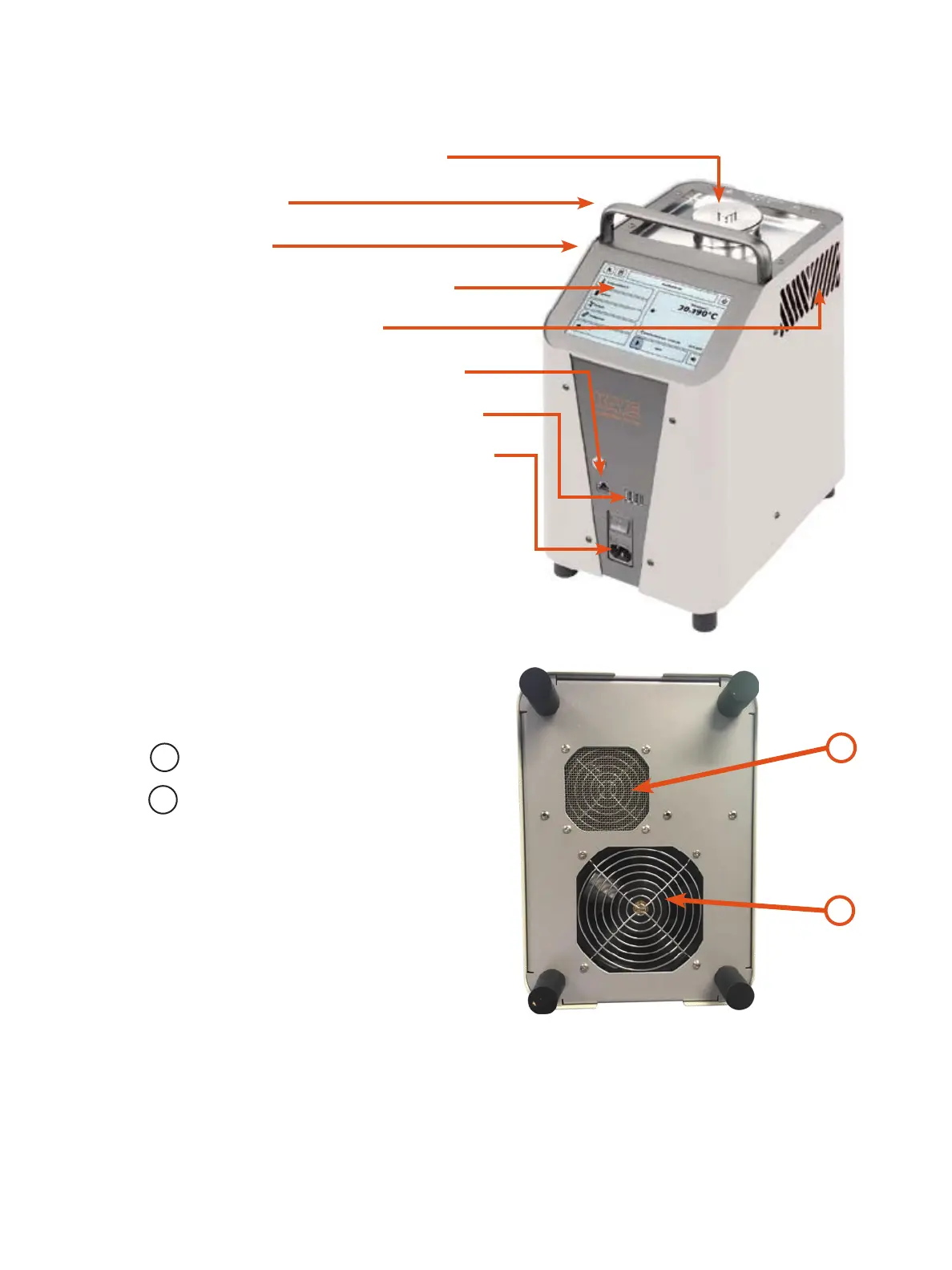

Key Components of the LTR-150
1. Tank (Dry Block, Micro Bath, Surface).
2. Carrying handle.
3. Steel housing.
4. Touch screen for display and operation.
5. Calibrator exhaust ventilation
6. Connection for external reference probe.
7. USB Port for connection to Kaye hardware.
8. Main switch with fuse and mains plug socket.
Calibrator, bottom view:
• Calibrator ventilation
Inlet air for housing cooling
Inlet air for tank / metal block cooling
b
c
